P O R T A L T I
Site Planning and Base Installation for Portal TI Units 10

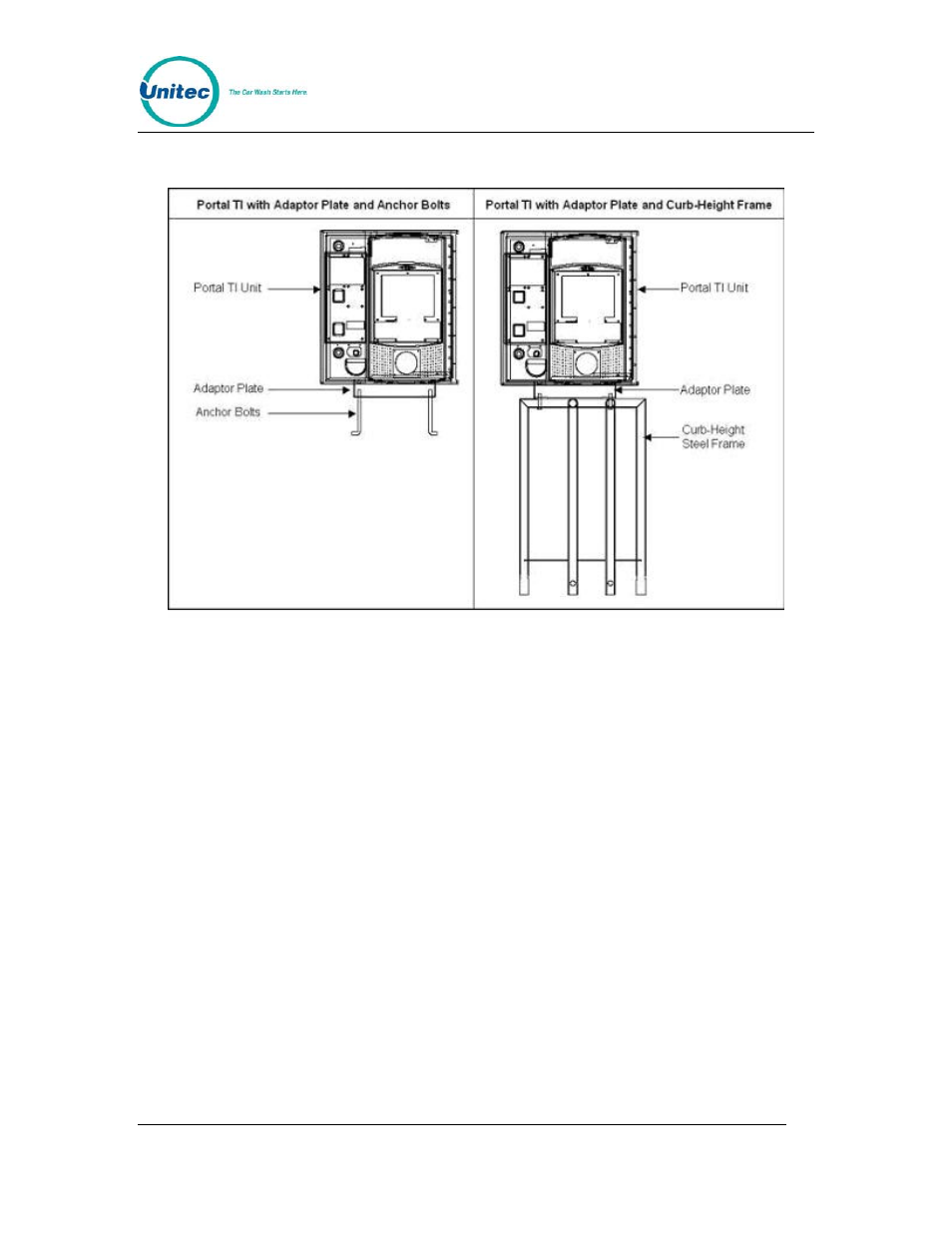

Figure 7. Bricked-In Mounting Options
2.4.2 Positioning the Portal
The adapter plate should be located so its front edge is recessed 4.50” from the front
face of the brick structure (as shown in Figure 8). The adapter plate has (2) sets of
mounting holes. One set is used to install the Portal so its front door will be flush with
the brick. The other set is used to recess the door within the brick. These (2)
mounting options and hole patterns are illustrated in Figure 9 and Figure 10..
Electrical conduits should be extended to the adapter plate and positioned so wiring
can be routed through the rectangular opening in the plate.
Document #: PTL1008
