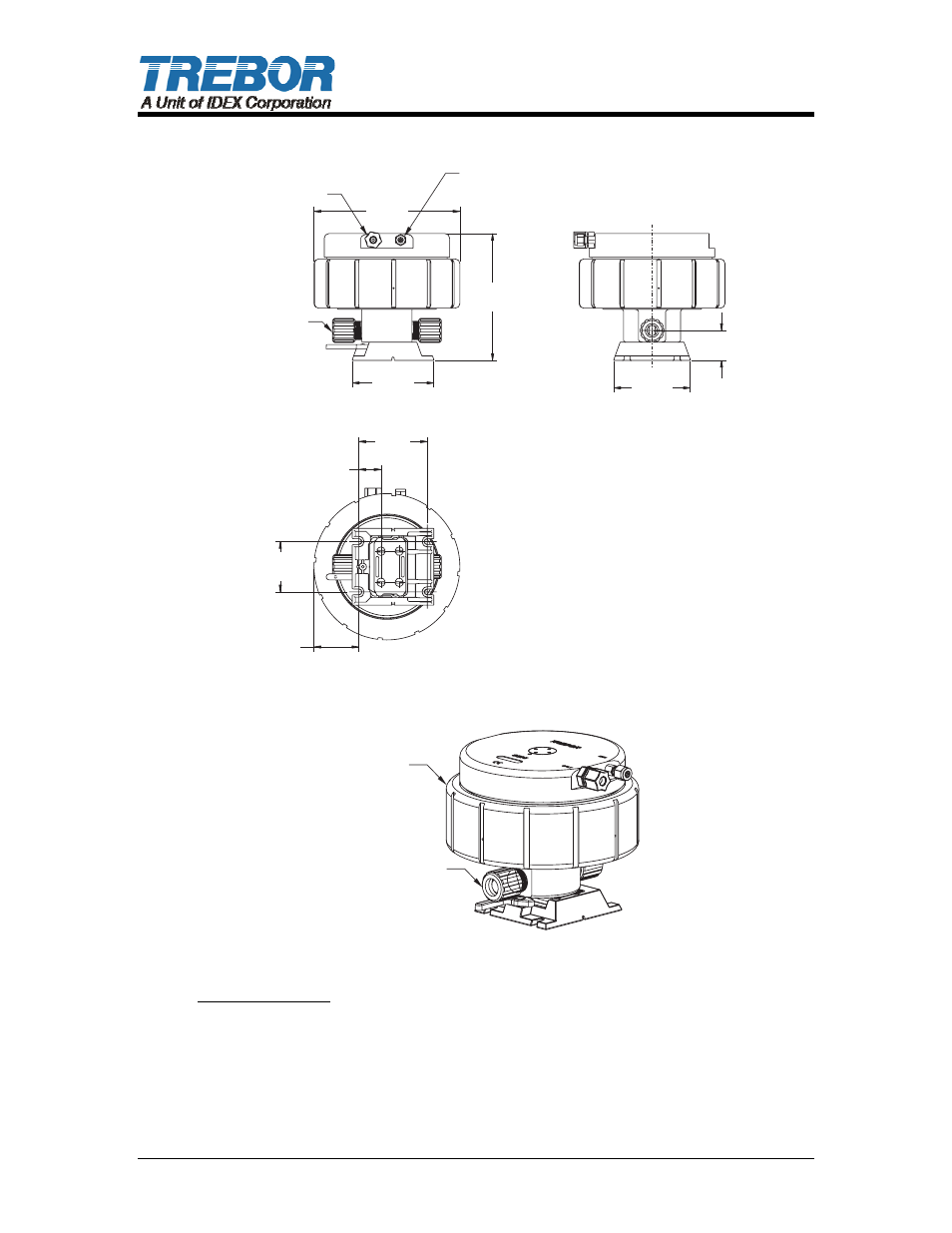

1.2.c Inline, External Ports
IN
(CM)
MTD0543
8.00
(20.32)
4.47
(11.35)
6.94
(17.63)
3/4" FLARE
3/4" FLARE
AIR SUPPLY
AIR SUPPLY
CONNECTION
3/8" TUBE
3/8" TUBE
REMOTE EXHAUST
REMOTE EXHAUST
CONNECTION
1/8" TUBE
1/8" TUBE
4.20
(10.67)
1.64
(4.17)
CL
2.75
(6.99)
3.75
(9.53)
1.21
(3.07)
2.46
(6.25)
Figure 1-4
MTD0542
SS95
3/4" FLARE, INLINE
3/4" FLARE, INLINE
(INCLUDES BASE)
(INCLUDES BASE)
Figure 1-5
Available Options
Inline, 3/4” Flare
