PURUS CP PUMP OPERATION / MAINTENANCE MANUAL PAGE 13
6.3 PC15 UTILITIES / HOOK-UP
Utility Pump
Air Inlet:
 3/8” Diameter supply tube.
Air Supply:
 50-80 PSIG (.55±.03 MPa Max), clean dry air or inert
gas
Power
 24VDC - 500mA
Controller Weight:
 4.4 lbs (2.0 Kg)
ATTENTION: Air supplied to the PC15 pump controller must be regulated to 50 - 80 PSIG
to operate the vacuum venturi. An onboard precision regulator controls pump air supply
pressure.
 Air supply connections between the pump and the pump controller are required.
NOTE: 3/8” tubing required for distances not to exceed 4 meters between the pump and
the pump controller.
 24VDC is required to operate the pump controller.
o Terminal blocks are insulation displacement type. Insert 22-16 awg wires into
the indicated location and rock lever to engage connection, see Figure 6-2.
NOTE: Follow local wiring codes and applicable wiring standards to insure proper power
and over-current protection.

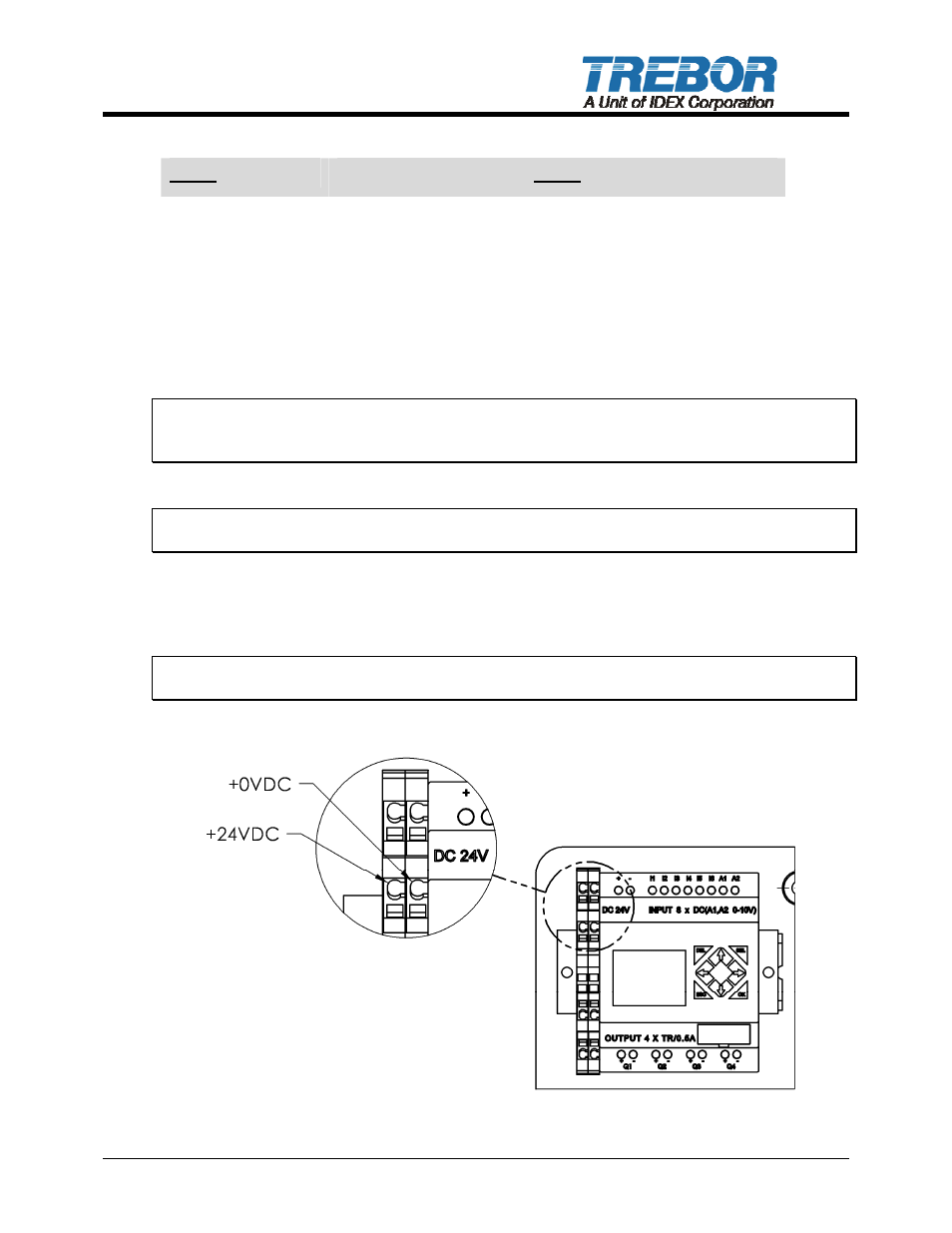

Figure 6-2: 24VDC Connection
