MODEL 110E PUMP OPERATION / MAINTENANCE MANUAL

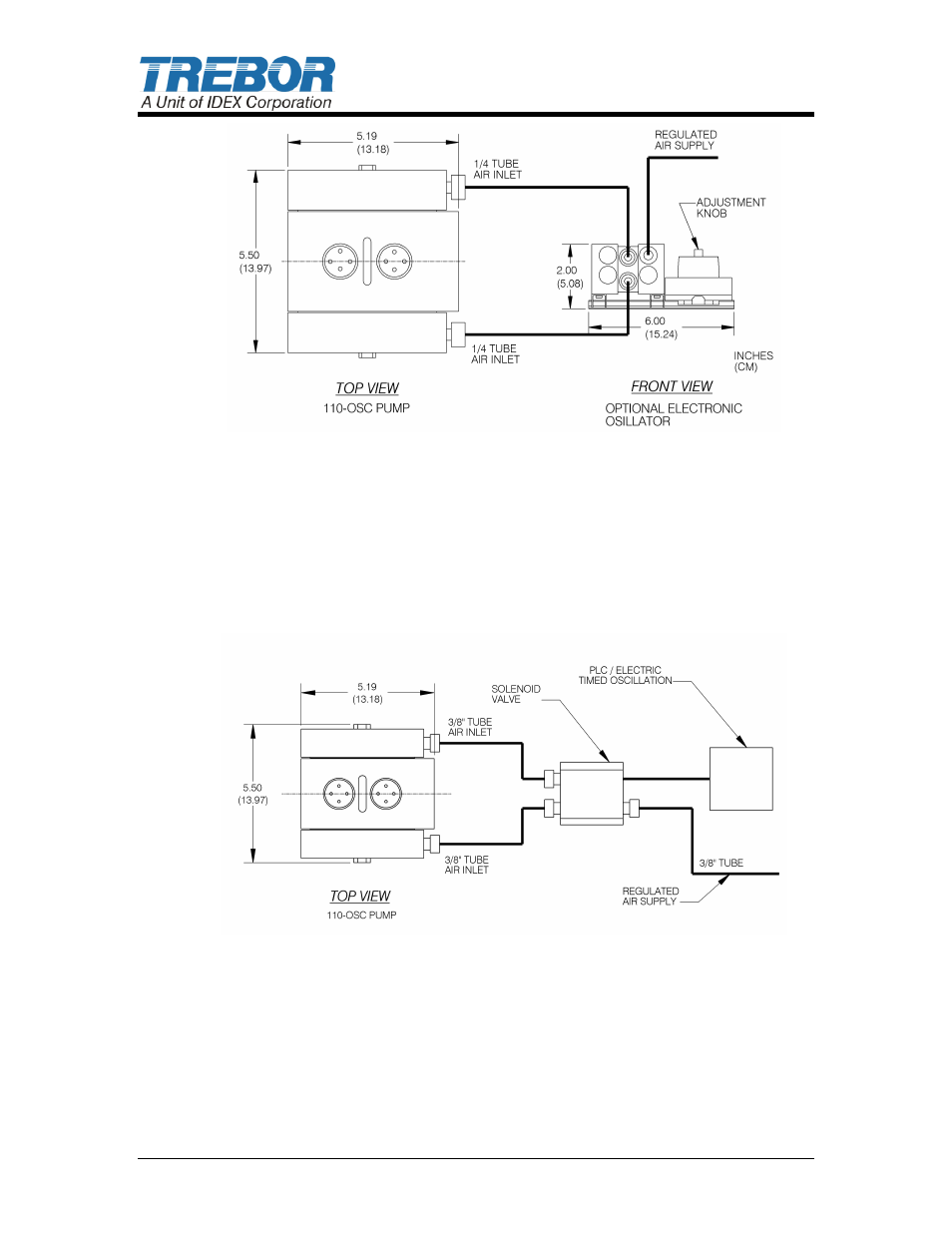

Figure 1-3
1.4.c Electronic Oscillation Controller (Example)
Air Inlet:
3/8” Dia. (9mm) supply tube (Use in-line 10µ air filter).
Air Supply to Pump: 20-60 psig (1.4
– 4.1 bar) Clean Dry Air.
Solenoid Valve:
C
V
greater than .80, 3 position.
PLC/Electric Circuit: For timed oscillation up to 260 cpm.
Figure 1-4
