2 OPTIONS

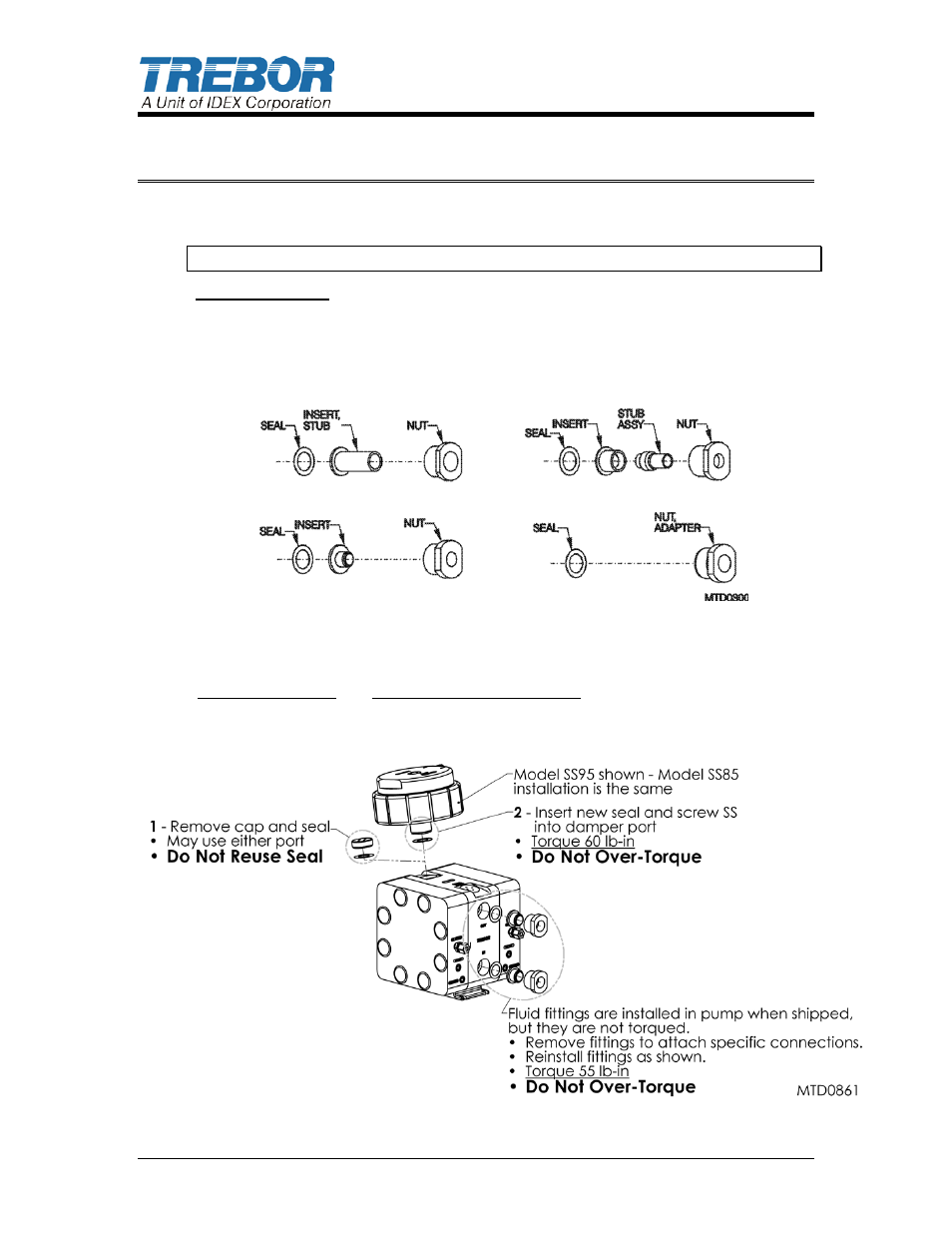

2.1 FLUID PORT CONNECTION OPTIONS
NOTE: Use O-ring to seal stainless steel or other rigid plumbing.
Available Options
A) PFA Weldable pipe 3/4” and 1”
B) Flare style tube adapter 3/4” and 1”
C) PFA tube stub out 3/4”
D) NPT adapter nut 3/4” and 1”
E) PILLAR Super 300 1” (not shown)
Figure 2-1
2.2 FLUID FITTINGS / SURGE SUPPRESSOR HOOK-UP
Surge Suppressor Assembled Height: IN (CM)
SS85 17.12 (43.49)
SS95 15.06 (38.25)
Figure 2-2
A)
B)
C)
D)
PAGE 6 MEGA 960E PUMP OPERATION / MAINTENANCE MANUAL
