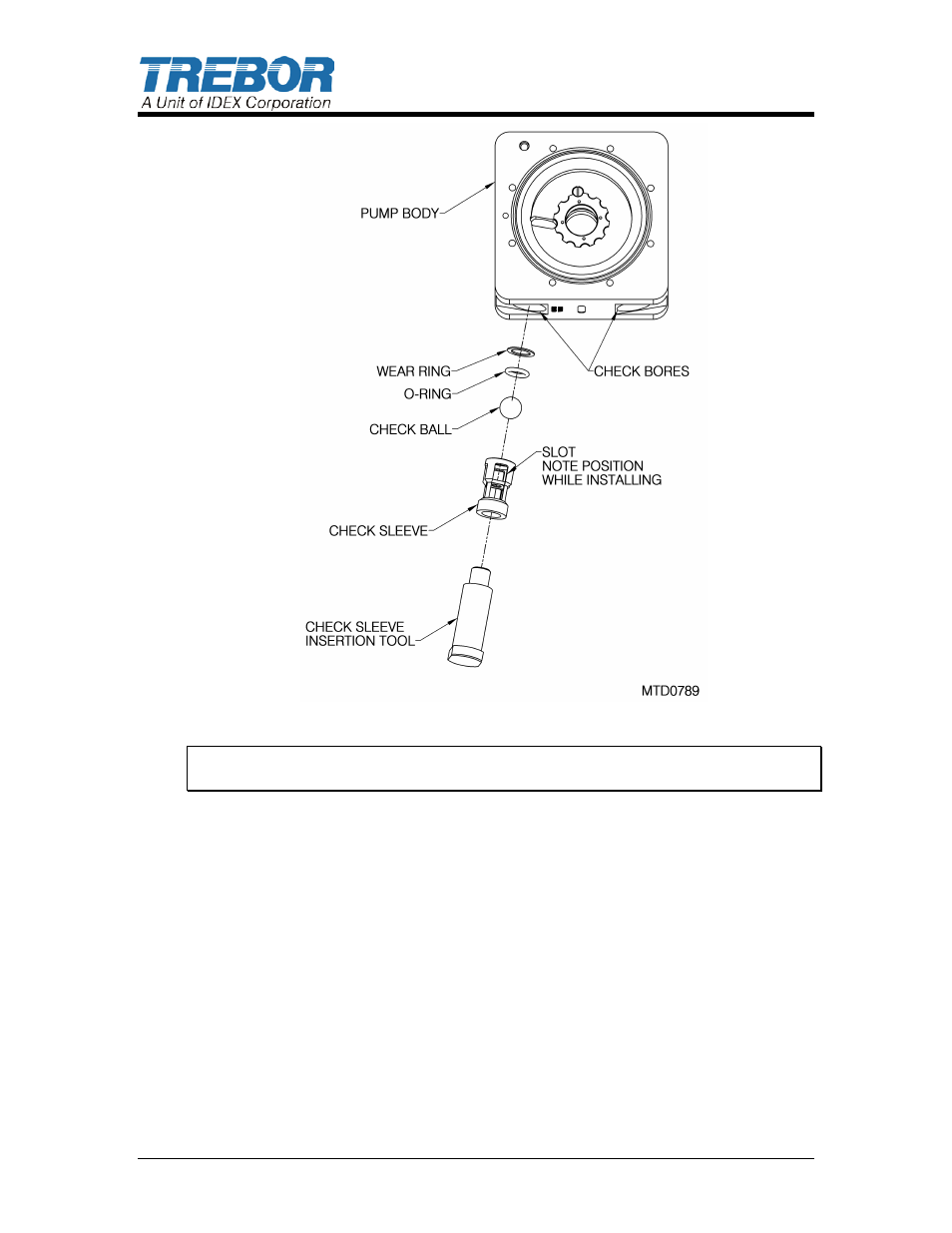

Figure 4-2
NOTE: The suction sleeves are 2-1/2” (6.35 cm) long. The discharge sleeves are
2.846” (7.2cm) long.
• Repeat insertion process with the discharge sleeve, check ball, O-ring and
wear ring.
• Place seal and tighten check bore caps 60 in-lbs.
• Repeat process for second check bore.
