TerraLUX Decorative MR16 LED Lamp Product Specification (04/01/2013) - Subject to change without notice
2
www.terraluxillumination.com
PERFORMANCES
PHOTOMETRY
Notes:
1) Typical Performance @ 25°C ambient temperature. All specifications subject to tolerance of ± 10%
2)
All information consistent with IESNA LM-79-08 third party testing, completed by a qualified third party facility (report available upon request)
3) Power draw is affected by the input voltage and the type of transformer.

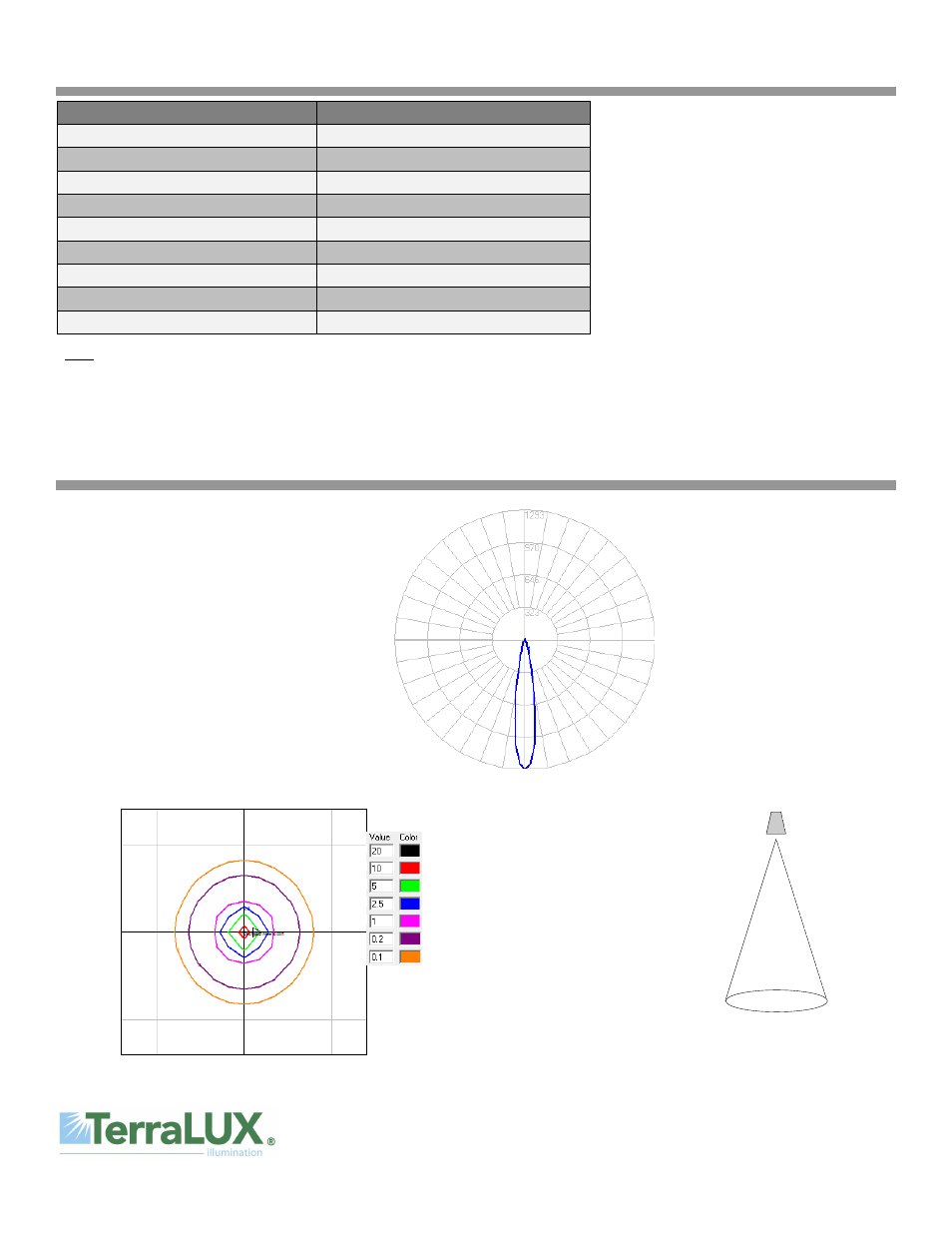

Relative Candela Distribution
Mounting Height
Diameter
In feet
FC
In feet
2
323.2
0.7
4
80.8
1.3
6
35.9
2.0
8
20.2
2.7
10
12.9
3.3
Color Temperature
3000K
CRI Minimum (typical)
90 *96+
Light Output *lm+ @ 12V AC
230
Light Output *lm+ @ 12V DC
300
Power *W+ @ 12V AC
4.8
Power *W+ @ 12V DC
5.5
Efficiency @ 12V AC *lm/W+
48
Efficiency @ 12V DC *lm/W+
55
Beam Angle
19°
Center Beam Candle Power *cd+
1300
Mounting Heigth: 10ft
1 square = 1 x MH
Isoillumination Plot
Illuminance—Cone of Light
