TERRALUX SR8 Install - Manual (Page 3)

TerraLUX Inc. Document P/N 025000085B
1-866-498-1564
www.terralux.com

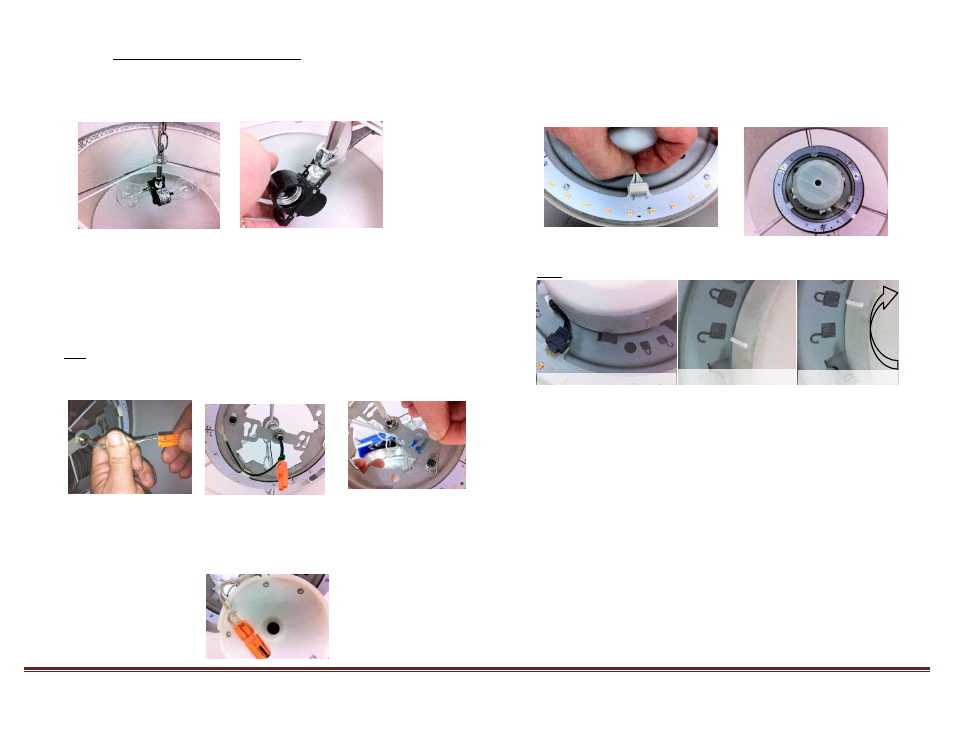

INSTALLATION STEPS (PENDANT FIXTURE)
1. SHUT OFF POWER TO LIGHT FIXTURE AT THE BREAKER
2. REMOVE DIFFUSER/GLOBE FROM FIXTURE TO BE RETROFITTED, RETAIN HARDWARE.
3. DISCONNECT/REMOVE BULB(S) FROM FIXTURE. DISPOSE OF OR RECYCLE PROPERLY.
4. CUT BULB WIRING AT BULB SOCKET AND REMOVE BULB SOCKET FROM FIXTURE
5. SECURE ROUND LED MOUNTING PLATE (LEDS FACING DOWN) TO THREADED TUBE USING
INCLUDED IPS HEX NUT. TIGHTEN NUT.
6. REMOVE ORANGE CONNECTOR PLUG FROM MATING ORANGE RECEPTACTACLE LOCATED ON
BOTTOM OF WHITE LED DRIVER MODULE.
7. FIRMLY PRESS ONE OF THE FIXTURE WIRES INTO THE ‘B” SLOT OF THE CONNECTOR PLUG. NEXT,
FIRMLY PRESS THE OTHER FIXTURE WIRE HARNESS WIRE INTO ADJACENT CONNECTOR SLOT.
TUG
ON BOTH WIRES TO ENSURE THEY ARE LOCKED INTO THE CONNECTOR.
Note: If fixture wires are stranded, they must be solder-tinned before inserting into orange
connector
8. CONNECT FIXTURE GROUNDING CONDUCTOR (GREEN, GREEN/YELLOW, OR BARE) TO GROUND
SCREW ON ROUND LED MOUNTING PLATE.
9. CONNECT THE ORANGE WIRING CONNECTOR TO THE MATING ORANGE RECEPTACLE ON THE
BOTTOM OF THE LED DRIVER MODULE.
10. CONNECT THE SMALL WHITE CONNECTOR FROM THE LED DRIVER MODULE TO THE RING OF LEDS
ON THE ROUND LED MOUNTING PLATE.
11. ALIGN UNLOCK SYMBOL ON PLATE TO FEATURE ON
DRIVER. SECURE DRIVER MODULE TO THE ROUND LED MOUNTING PLATE BY ROTATING TO LOCK
SYMBOL POSITION.
NOTE: WIRES SHOULD NOT BE PINCHED BETWEEN FIXTURE OR DRIVER OR PLATE.
12. REATTACH DIFFUSOR/GLOBE
13. TURN POWER BACK ON AT THE BREAKER PANEL AND VERIFY OPERATION
Pendant Fixture with Wires through
Hickey Spacer and Threaded Nipple.
Small Connector to LEDs
Align Driver to “Un-Lock” Symbol Rotate LED Driver to “Lock”
Symbol
