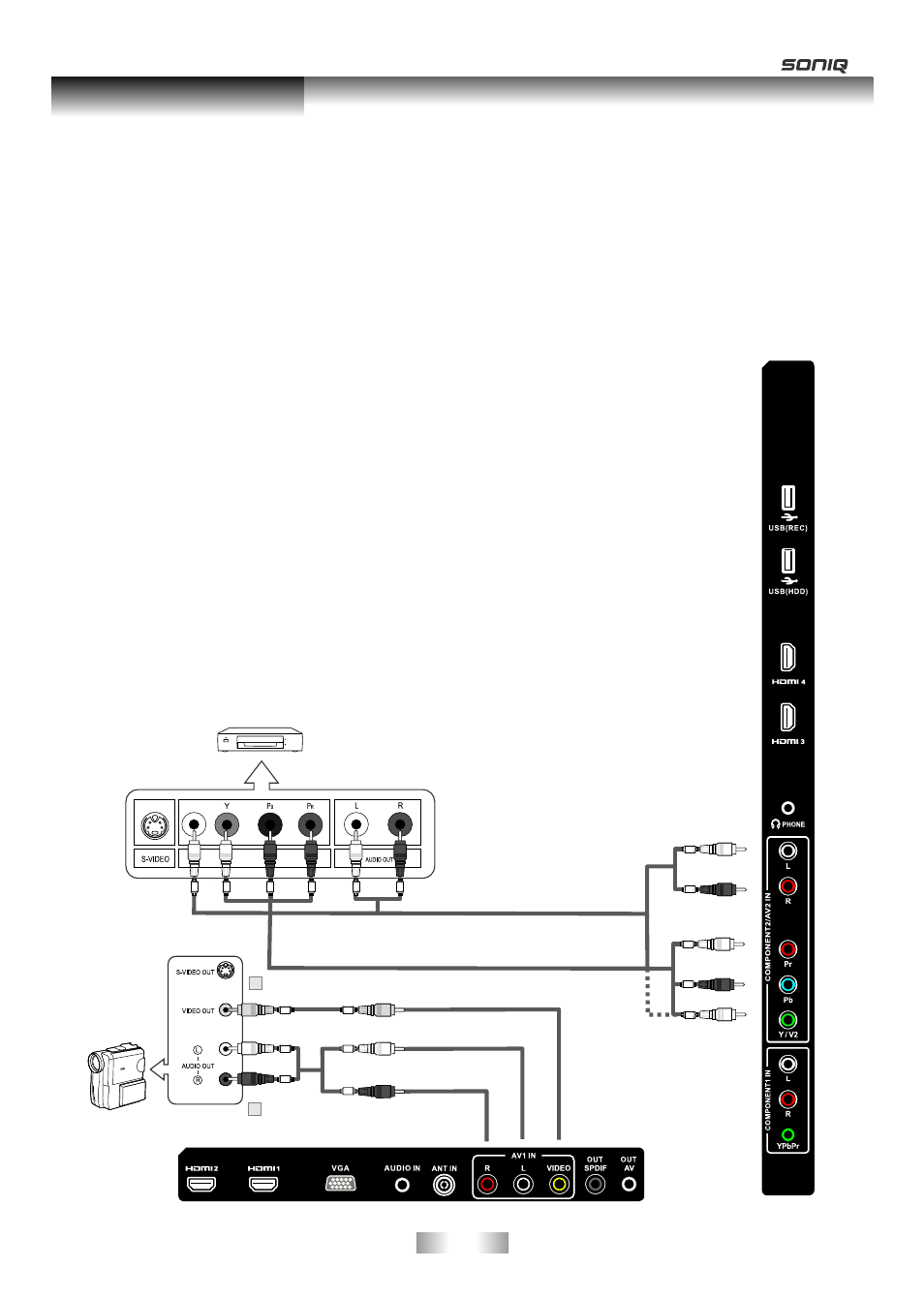

Connecting a Camcorder
The rear panel jacks on your TV make it easy to connect a camcorder to your TV. They
allow you to view the camcorder tapes without using a VCR.
TV Rear Panel
Each Camcorder has a different back panel configuration.
When connecting a Camcorder or DVD, match the color of the connection terminal to
the cable.
1. Connect a Video Cable between the AV1 VIDEO jacks on the TV
and the VIDEO OUT jack on the camcorder.
2. Connect Audio Cables between the on
the TV and the AUDIO OUT jacks on the camcorder.
3. Connect a Video Cable between the component 2 IN Y on the TV
and the VIDEO OUT jack on the DVD.
4. Connect Audio Cables between the component 2 IN AUDIO L and
R jacks on the TV and the AUDIO OUT jack on the DVD.
5. Insert the small terminal on the YPbPr
into YPbPr jack on the TV.
Note:
1. Whenever you connect an external device to your TV, make sure that
power on the unit is turned off.
2. When connecting an external device, match the color of the connection
terminal to the cable.
cable
COMPONENT1 IN [R and L] jacks
Video Cable (Not supplied) 1
Audio Cable (Not supplied) 2
Camcorder
White
Y llow e
Red
R d e
W te hi
Yellow
W
h
it
e
R
e
d
VIDEO OUT
DVD Player/Set-Top Box
Red
White
YPbPr cable(supplied)
Audio Cable (Not supplied)
-19-
External Connection
Red
White
Yellow
