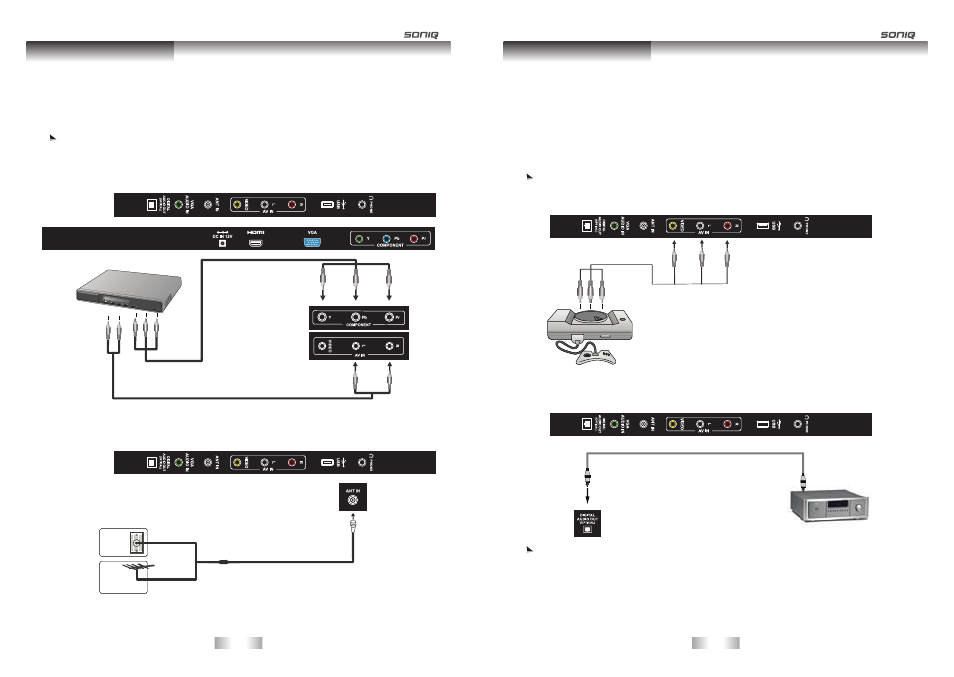

Connection and setup
Connecting Component Video Signais
1. Connect the component video output of your AV equipment to the unit COMPONENT YPbPr
terminals using a Component video cable. (green, blue, red cable)
2. Connect the audio output of your AV equipment to the unit AUDIO L/R input terminals using the
AV cable or equivalent.
1. Ensure the connector colors match, failure to connect the colors of the cables to the
corresponding colored terminals will result in an incorrectly color image or badly distorted
image.
2. VIDEO and YPbPr signal share the same audio input. You are required to use it individually at
any time.
Connecting Antenna
DVD player
Audio (AV) cable
Component Video
cable
Green Blue Red
White Red
Wall
Antenna
Socket
Outdoor
Antenna
(VHF, UHF)
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings / Houses
RF Coaxial Wire (75 ohm)
Connecting Composite Video Signal
Composite video input is the most commonly used signal input. However, this type of input
also provides a less optimal image quality. Many video sources can only output Composite
video signals, for example, VCRs, camcorders and Video game.
Connecting OPTICAL Signal
To achieve excellent sound quality, we recommend users to use the high powered speakers
such as the SONIQ CSA32.
•
terminal on the unit using a Composite (AV) video cable (RCA connector) as illustrated.
• Before connecting any component, please familiarize yourself with the location and type of
each input.
• If incorrect connections are made, picture or color quality may be adversely affected. Please
ensure that all connectors are firmly seated.
Before connecting, turn off the power to the external devices for safety.
Connect the Composite (AV) output of your AV equipment to the Composite VIDEO signal
Y
ellow
White Red
Composite (AV)
video cable
Video game
SONIQ does not supply these cables.
Optical input
