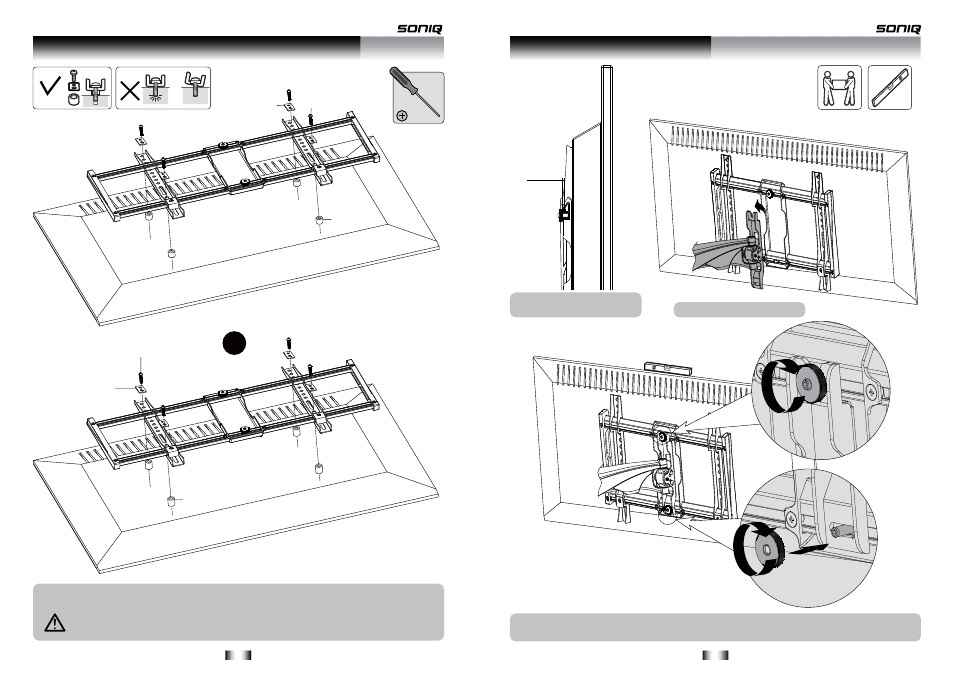

6. Hook the TV onto the Wall Mount
· Position the TV level.
· Place the lower thumbscrew; Tighten both thumbscrews.
Two qualified
persons are
required
Hook the TV onto the wall mount
5-2 For Recessed Back Screen or to Access A/V Inputs
TV
TV TV
or
Tighten all screws but do not over tighten.
· Position the adapter bracket as close as possible to the middle of the screen.
· Screw the adapter bracket onto the TV.
M-I
M-H
M-K
M-I
M-B
M-D
M-F
M-J
Loosen the upper thumbscrew
spacing 4mm to adapter bracket.
4mm
