10
(reflector) (refractor and Maksutov)
INSERTING EYEPIECE (Fig.27)
1) Loosen the thumbscrew on the end of
the focus tube.
2) Insert the diagonal into the focus tube
and re-tighten the thumbscrew to hold
the diagonal in place.
3) Loosen the thumbscrews on the diagonal.
4) Insert the desired eyepiece into diagonal
and secure by re-tightening thumbscrews.
INSERTING EYEPIECE (Fig.26)
1) Unscrew the thumbscrews on the
end of the focus tube to remove the
black plastic end-cap.
2) Insert the desired eyepiece
then re-tighten thumb
screws to hold the
eyepiece in place.

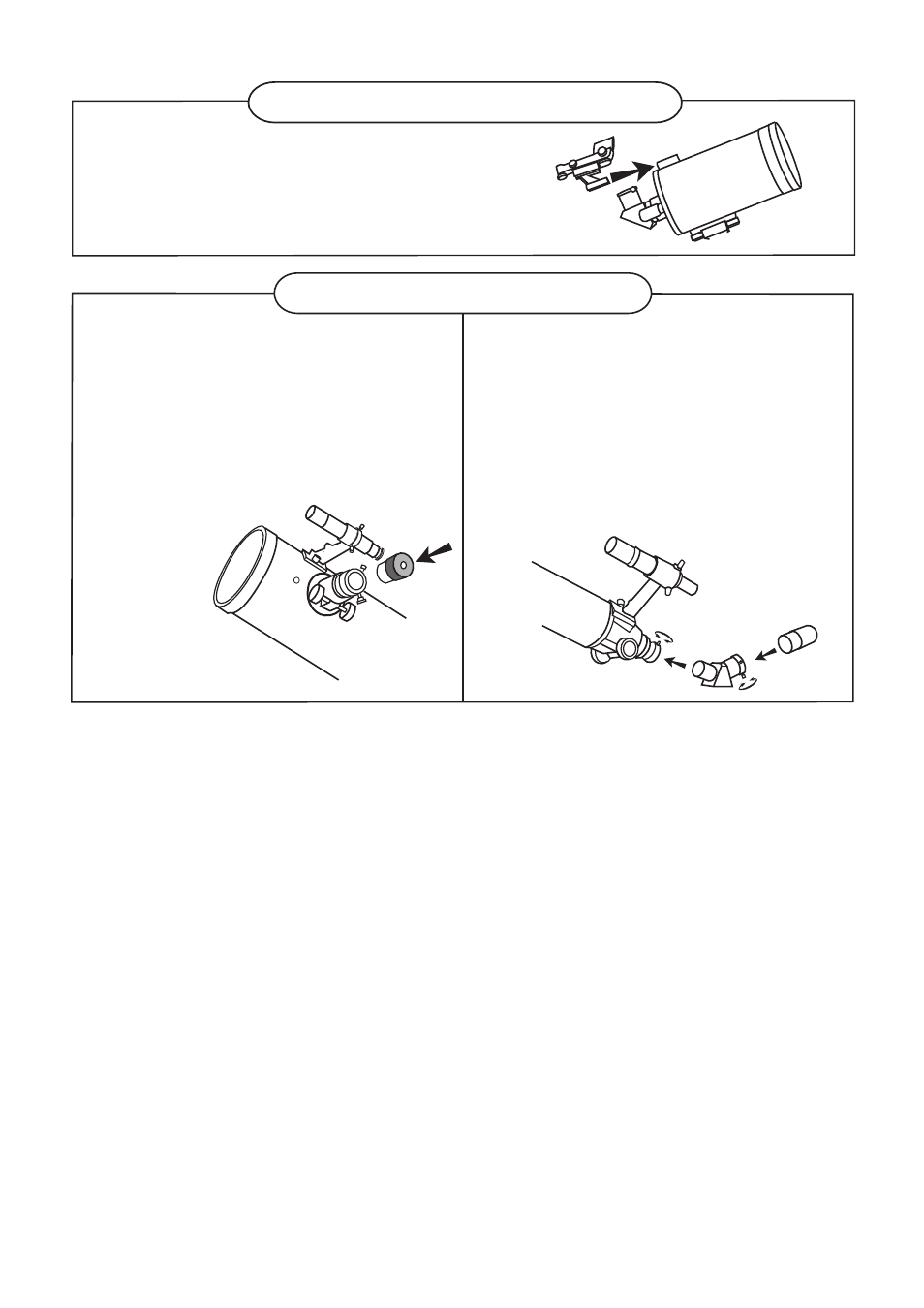

EYEPIECE ASSEMBLY
Fig.26
Fig.27
Fig.25
RED DOT FINDER ASSEMBLY
ATTACHING THE RED DOT FINDER (Fig.25)
Slide the red dot finder bracket into the rectangular slot
and tighten the screw to hold the red dot finder in
place.
