Page 35

Sports Bar Canopy

Owner’s Manual

Page 34

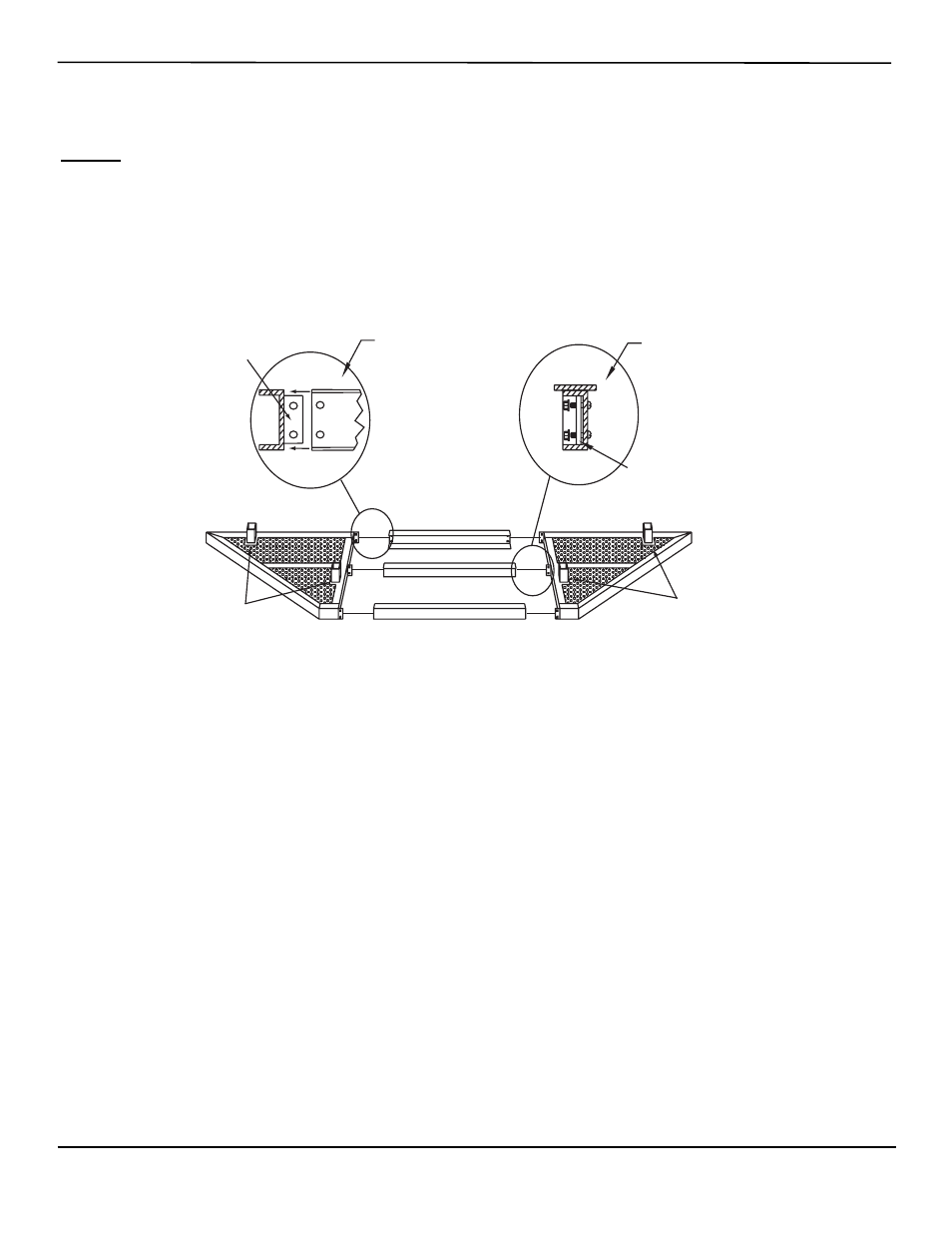

Figure 36. Canopy Assembly

1. Lay the two triangle-shaped canopy pieces on a flat and level surface, with the support sleeves

facing up.

2. Place the “U” channel in between the two triangle-shaped end pieces with the “U” channel facing inward.

Line up the holes and bolt into place (Figure 36A and 36B). Repeat this step for the opposite end of the “U”
channel.

3. Repeat this process with all three support “U” channels. Make sure that all three “U” channels are facing

inward.

4. After making all the wire connections, slide each canopy support post into the support sleeves (located on

the canopy). Gently tuck the cables into the support post, making sure not to pinch the cables (Figure 37).

Place "U" channel with 2"
support in the middle of
two regular "U" channels.

Place regular "U"
channels on outside
(2 each)

Mounting Tab

Support Sleeves

Canopy Assembly

The following instructions will allow you to assembly the canopy section of the G3000 Island/ Sports Canopy.

NOTE:

The following sections show how each wiring connection is to be made. These
connections will be identical for the top and bottom of the canopy support post.
Make sure that after the connections are made, the cables are tucked gently into
each end of the canopy support posts. DO NOT let the canopy support posts and
canopy support post mounts pinch the cables. If this happens, the cables will be cut
and have to be replaced.
