Page 31 Owner’s Manual
Owner’s Manual Installation of New Access Doors

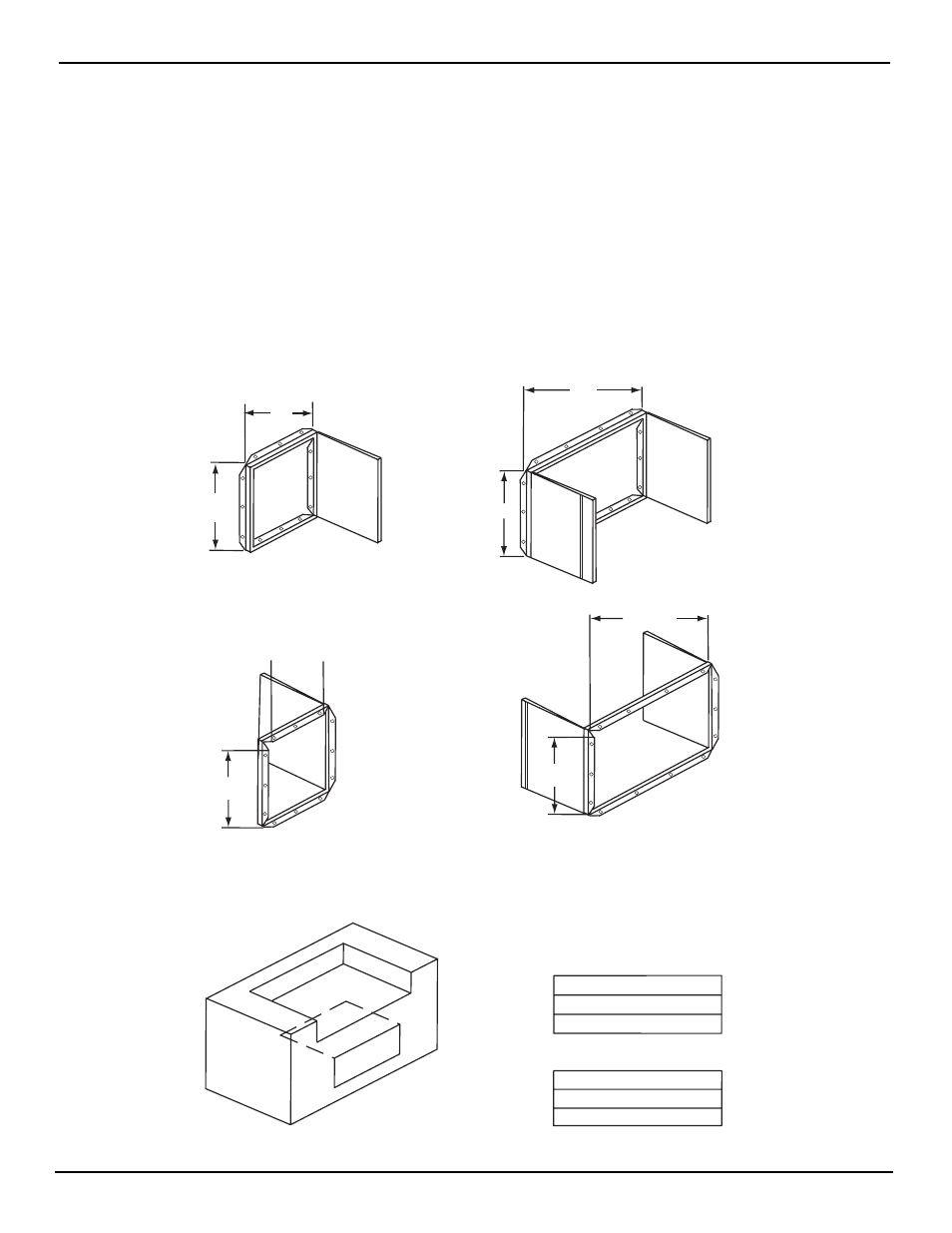

Figure 34. Access Door Installation
Front Dimensions
Single Access Door
19"
23"
30"
23"
Double Access Door
Rear Cut-Out Dimensions
19"
16 1/4"
19 3/8"
28 1/4"
Width 18 1/4"
Height 19"
Depth 2 1/2"
Width 28 1/4"
Height 19 3/8"
Depth 2 1/2"
Double Door
Single Door
INSTALLATION OF NEW ACCESS DOORS
Installing Access Doors
1. Provide cut out and door jamb with inside dimensions as follows:
16 1/4" X 19 “ for single door
28 1/4” x 19 3/8” for double door
2. Secure the steel frame with 16 screws of type #10 x fl” truss head phillips S/S.
3. Attach doors to frame.
4. Adjust doors as follows:
a) For height adjustment, loosen the two screws attached to each mounting plate.
b) Snap off hinge and secure mounting plate with #6 X 1” flat phillips S/S.
c) For side adjustment turn screw to increase or decrease door overlay.
d) For depth adjustment, loosen screw, adjust door to desired position and retighten screw.
