Owner’s Manual Page 30
Installation of Nw Side Burner Owner’s Manual
BARBECUE GASLINE
C
B
A
B
C
A
Connect the last open line to the side burner
(Use gas rated tape seal on all connections)
Then take other end of "T" adapter with hose attached
and connect to end of male located underneath and at
the back of the grill. (Use gas rated tape seal on all
connections).
Open barbecue door. Install hose with regulator on propane
tank. Then connect other end to "T" adapter. Make sure to
use gas rated tape seal when installing adapter to insure
proper seal.
Grill
Items Included with Barbecue
1) "T" adapter (3/8")
2) 2 each Hose 3/8" Fittings
3) Regulatorw/ Hose
NOTE: You will need to use a gas rated
sealer on all gas connectors (Tape,
pipe dope, ect.)
To Propane Tank 3/8" Fittings
From Grill
From Side Burner
"T" Adapter (3/8" Threaded)
To side burner, located
underneath behind burner.
To grill, located
underneath and
behind grill
Gas Line

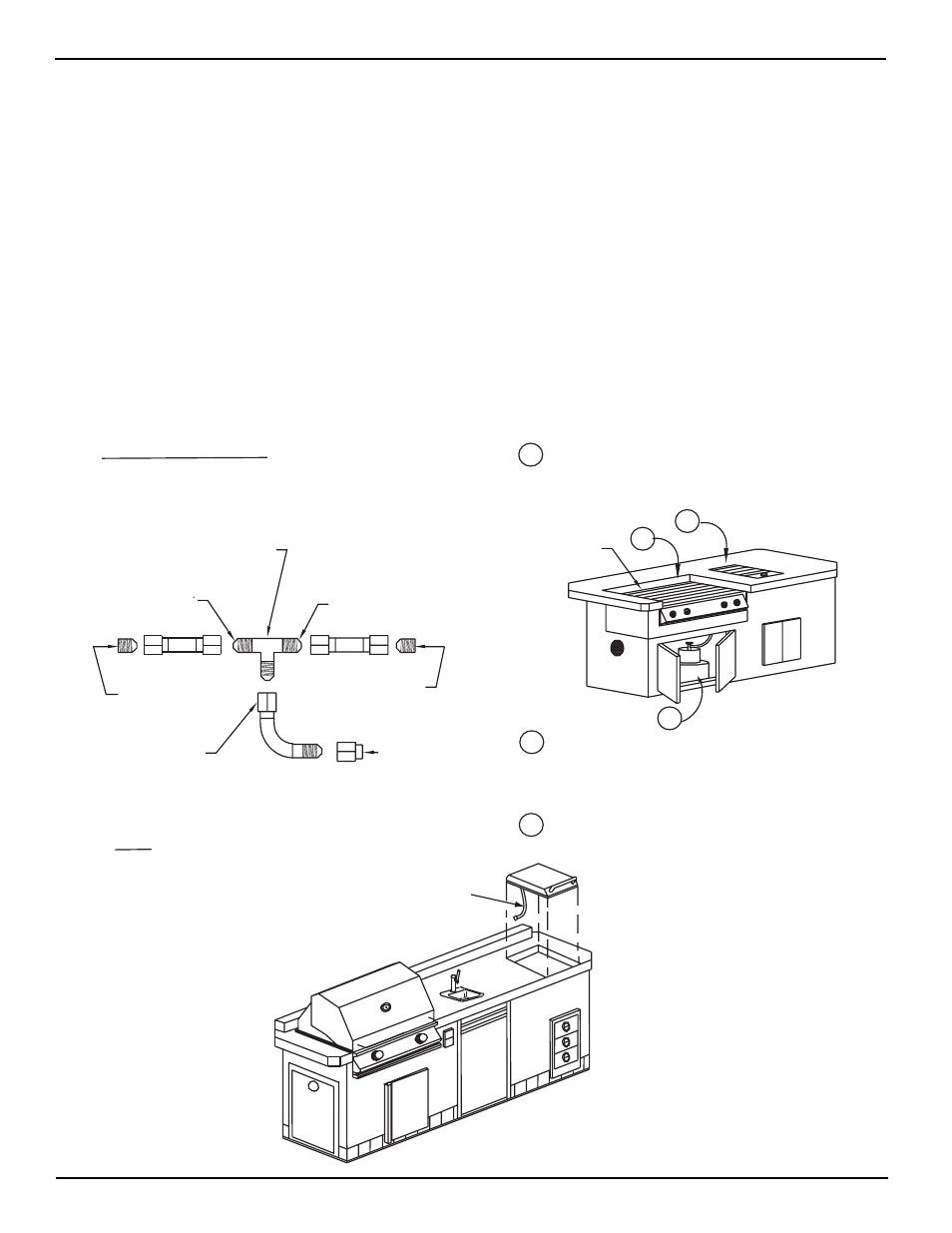

Figure 33. Side Burner Installation
INSTALLATION OF NEW SIDE BURNER
1. Install side burner into an area of 17-1/2 inches long, 11 inches wide and 3 inches deep.
2. Assemble a 3/8 pipe nipple to the 3/8 pipe tee using teflon tape or pipe sealant. Use only sealant that is
approved for use on LP gas.
3. Install the pipe tee assembly to the grill intake pipe with pipe sealant. Tighten assembly and align the branch
opening of the tee with the hole of the cabinet.
4. Connect the flexible hose (male end) to the pipe tee with pipe sealant.
5. Install and secure the side burner into the island by simply setting in place.
6. Connect the female end of the flexible hose to the side burner intake pipe with pipe sealant.
7. Connect gas supply to the grill.
8. Check for gas leaks using soap water solution. (1 part liquid soap, 3 parts water).
