Rite-Ride 2485 - Manual (Page 2)

3/8″-16 X 3/4″
FLANGE BOLT
3/8″-16 FLANGE
LOCK NUT
UPPER
BRACKET
AIR
SPRING
“L” BRACKETS
JOUNCE
BUMPER
STUD
FRAME
5/16″-24 X 3/4″
HEX HEAD BOLTS
5/16″-24 X 3/4″
FLANGE NUTS
ELBOW
FITTING
LOWER
BRACKET
3/8″-16 X 2-1/2″
CARRIAGE BOLTS
3/8″-16 FLANGE
LOCK NUT
BRACKET
CLAMP
AXLE
LEAF
SPRING

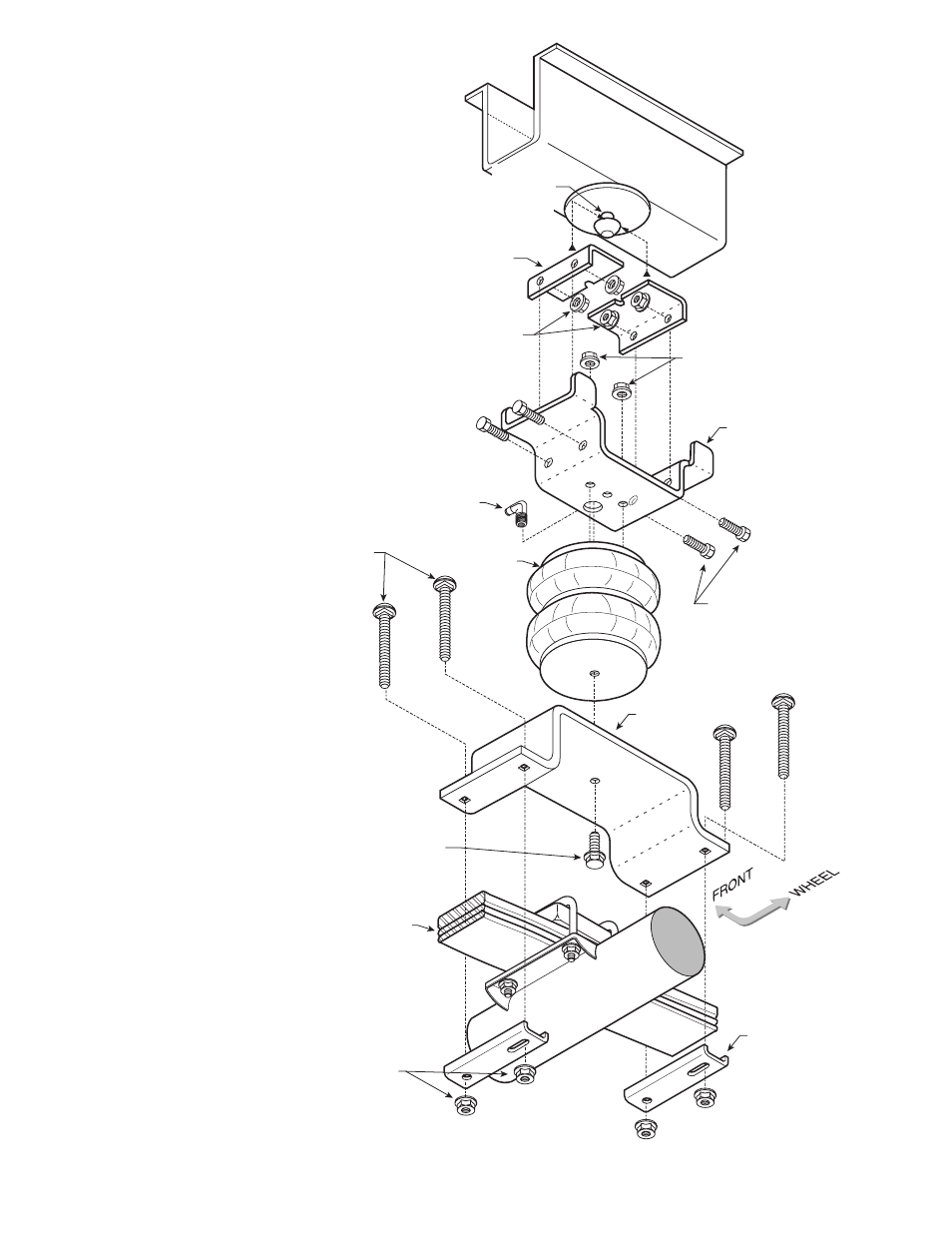

Figure “A”
NOTE: All illustrations are
of the right, or passenger,
side of the vehicle. Follow
the same procedures for
the left side installation.
Operating Pressure Range:
5PSI – MINIMUM
100 PSI – MAX (LOADED)
