Rite-Ride 2377 - Manual (Page 2)

FR
ONT
WHEEL
2354 / 2369 / 2377

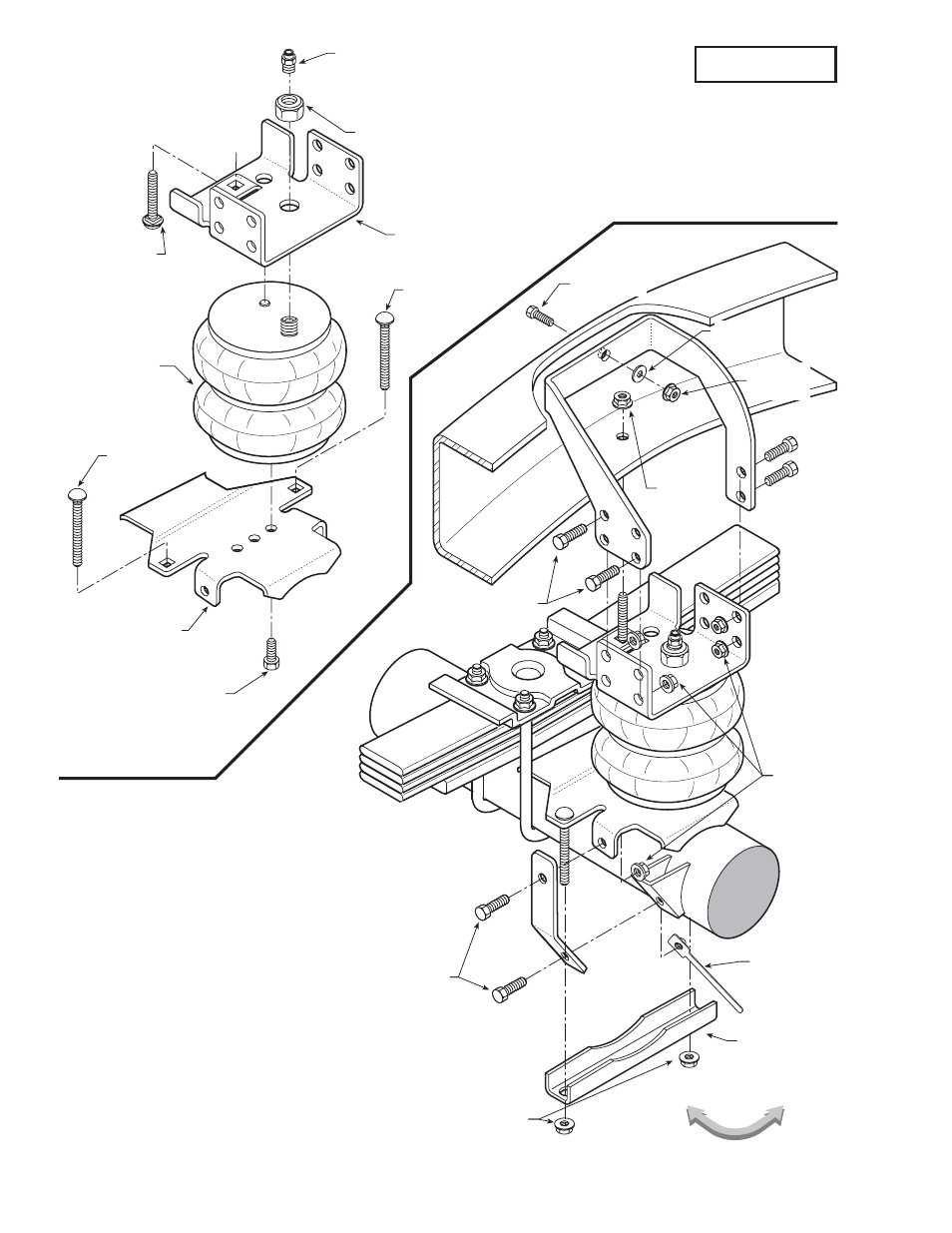

KIT TO FRAME ASSEMBLY
KIT ASSEMBLY
NOTE: Both illustrations are
of the left, or drivers side, of
the vehicle. Reverse any
orientations when assembling
and installing the right, or
passenger, side of the vehicle.
FIGURE "A"
3/8” -16 x 3/4”
HEX BOLT
5/8” - 18
NYLON JAM NUT
LOWER BRACKET
AIR SPRING
UPPER BRACKET
AIR FITTING
3/8” -16 x 6”
CARRIAGE BOLT
3/8” -16 x 2.5”
CARRIAGE BOLT
3/8” -16 x 6”
CARRIAGE BOLT
3/8” -16 x 1”
HEX BOLT
3/8” -16
FLANGED
LOCK NUT
3/8” -16 x 1”
HEX BOLT
3/8” -16
NUT STICK
BRACKET
STRAP
3/8” -16
FLANGED
LOCK NUT
3/8” -16
FLANGED
LOCK NUT
5/16” -24 x 1”
HEX BOLT
5/16” -24
FLANGED
LOCK NUT
AXLE
FRAME
5/16” FLAT
WASHER
