Rite-Ride 2525 - Manual (Page 2)

FRAME
INSERT FRAME HOLE
BRACKETS THROUGH
HOLES ON THE INSIDE
OF THE FRAME
BAIL CLAMP
(3410)
3/8"-16
FLANGE
LOCK NUTS
3/8"-16
FLANGE
LOCK NUTS
3/8"-16 X 3/4"
FLANGE
HEX BOLT
LOWER
BRACKET
(5702)
AIR
SPRING
(6781)
3/8"-16 X 1"
HEX BOLTS
3/8"-16 X 1"
HEX BOLTS
3/8"-16
FLANGE
LOCK NUTS
3/8"-16
FLANGE
LOCK NUTS
UPPER
BRACKET
(5699)
FRAME
BRACKET
(5701)

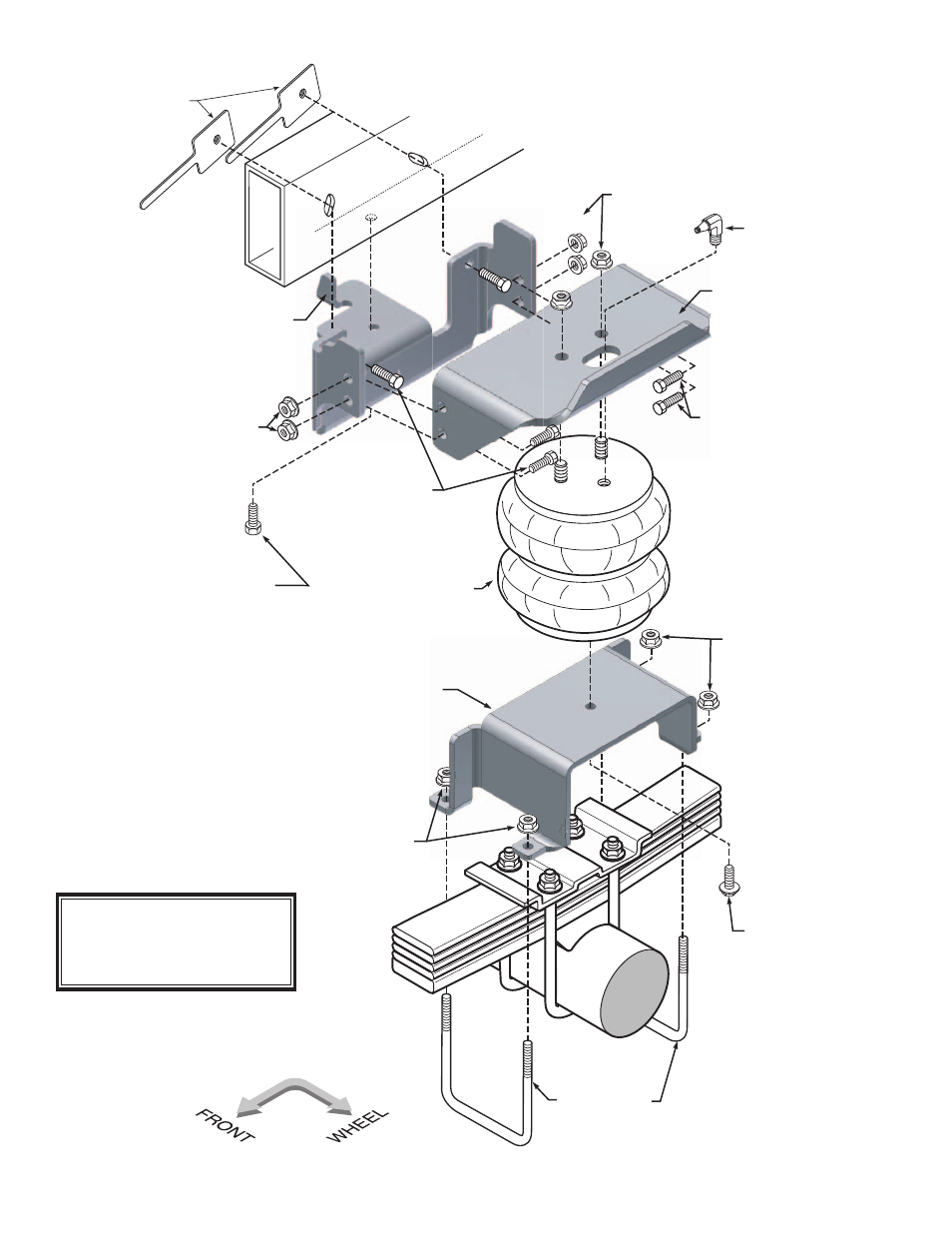

Figure “A”
BOLT FROM
JOUNCE BUMPER
REMOVAL
ELBOW
FITTING
(3031)
2525
MIN. PRESSURE 5 PSI
(UNLOADED)
MAX PRESSURE
100 PSI
(LOADED)
