KIT ASSEMBL

KIT TO FRAME ASSEMBLY

NOTE: Both illustrations are of the left, or drivers
side, of the vehicle. Reverse any orientations when
assembling and installing the right, or passenger, side
of the vehicle.

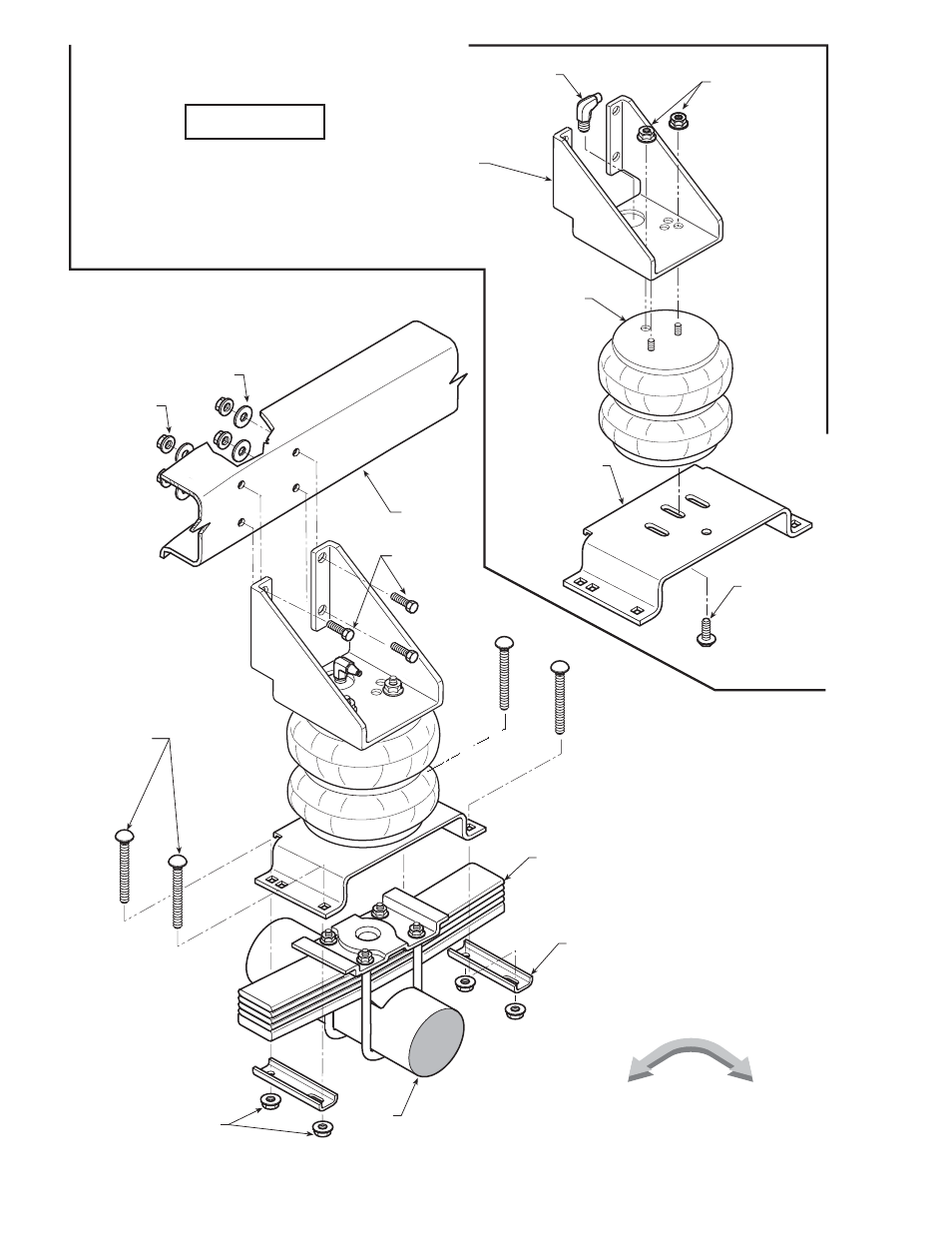

FIGURE "A"

AIR SPRING

LOWER BRACKET

3/8” -16 x 3/4”
FLANGED
HEX BOLT

ONT

WHEEL

3/8” -16 x 7”

CARRIAGE

BOLT

AXLE

1/2” BRACKET STRAP

LEAF STACK

3/8” -16 FLANGED

LOCK NUT

2040

UPPER BRACKET
5320

3/8" - 16

FLANGED

LOCK NUTS

ELBOW
FITTING

3/8”-16 LOCK

NUT

FRAME RAIL

3/8”-16X1-3/4”
HEX BOLTS

HOLES T

DRILLED

3/8

3/8” FLAT
WASHER
