FR
ONT
WHEEL
2185

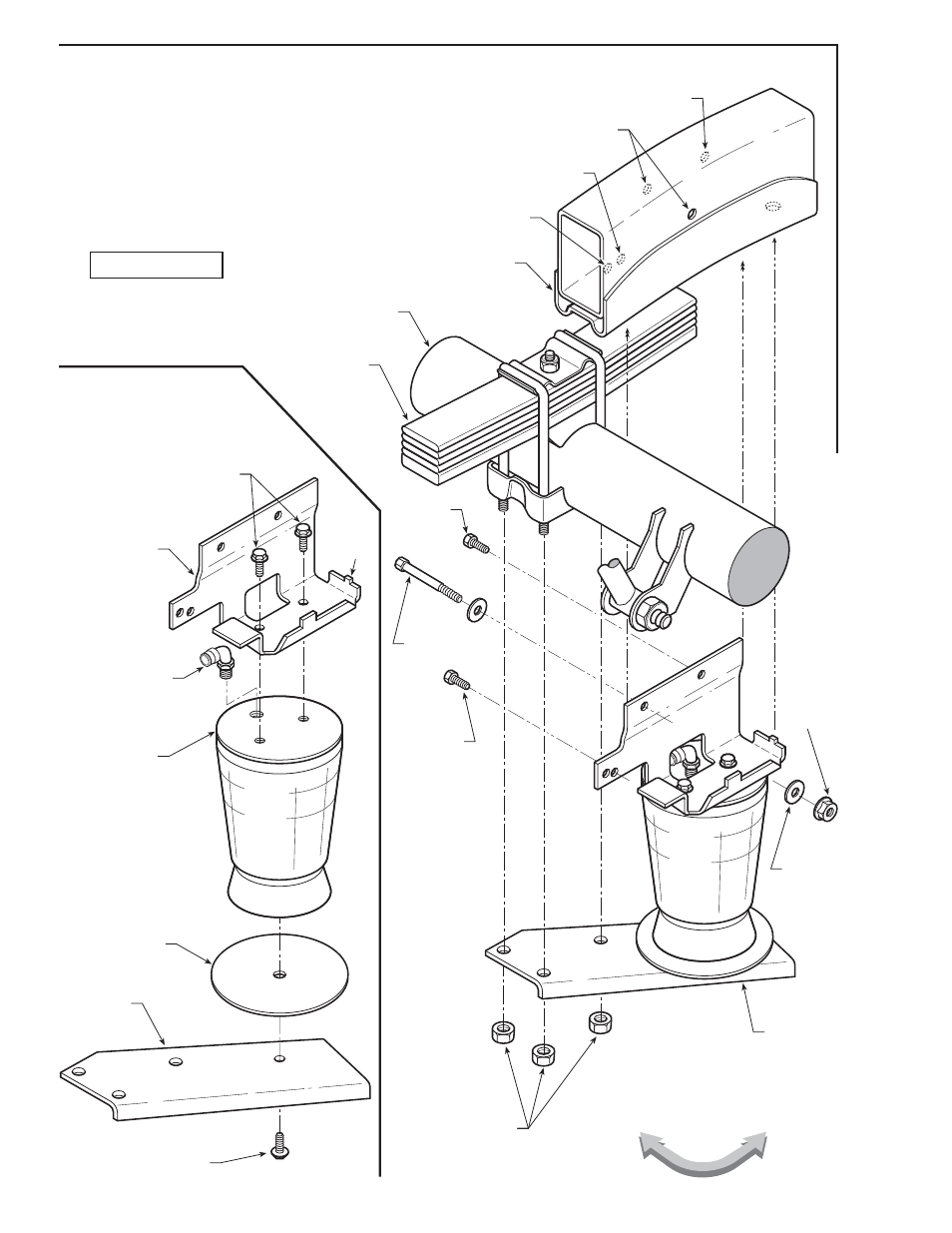

FIGURE "A"
KIT ASSEMBLY
KIT TO FRAME ASSEMBLY
NOTE:
Both illustrations are of the left,
or driver’s side, of the vehicle. Reverse
any orientations when installing the right,
or passenger’s side assembly.
UPPER
BRACKET
LOWER
BRACKET
AIR SPRING
3/8” -16 x 3/4”
FLANGED HEX BOLT
AIR FITTING
3/8” -16 x 3/4”
FLANGED HEX BOLT
DISK
FRAME
LEAF
STACK
3/8” SELF-
TAPPING
SCREW
M16 x 2.0 HEX NUT
3/8” SELF-
TAPPING
SCREW
3/8” -16 x 5-1/2”
HEX BOLT
3/8” -16
FLANGED
HEX NUT
3/8” FLAT
WASHER
AIR SPRING
ASSEMBLY
DRILL
9/32” HOLE
DRILL
9/32” HOLE
DRILL 7/16”
HOLE THROUGH
FRAME
AXLE
EXISTING HOLE
TAB
