Rite-Ride 2423 - Manual (Page 2)

5/16”-24
FLANGE LOCK
NUT
5/16”-24
BAIL CLAMP
UPPER
BRACKET
FRAME
LOWER
BRACKET
3/8”-16 X 5/8”
FLAT HEAD
BOLT
AIR
SPRING
UPPER BRACKET
INSTALLATION
PREASSEMBLY
AIR SPRING
ASSEMBLY
FRAME
UPPER
BRACKET
3/8”-16
FLANGE LOCK
NUT
3/8”-16 X 5-1/2”
CARRIAGE
BOLT
BRACKET
CLAMP
3/8”-16
FLANGE LOCK
NUT - ATTACH TO
5-1/2”CARRIAGE BOLT
AIR
FITTING
NYLON
JAM NUT
3/8”-16
NUT
PLATE
U-BOLT CLAMP-
FORWARD U-BOLT
USES LARGE HOLE
3/8”-16 HEX BOLT-
ATTACHES TO
NUT PLATE
3/8”-16 X 5-1/2”
CARRIAGE BOLT
Illustration is of the right,
or passenger side of the vehicle.
Repeat instructions for the
left, or driver’s side.

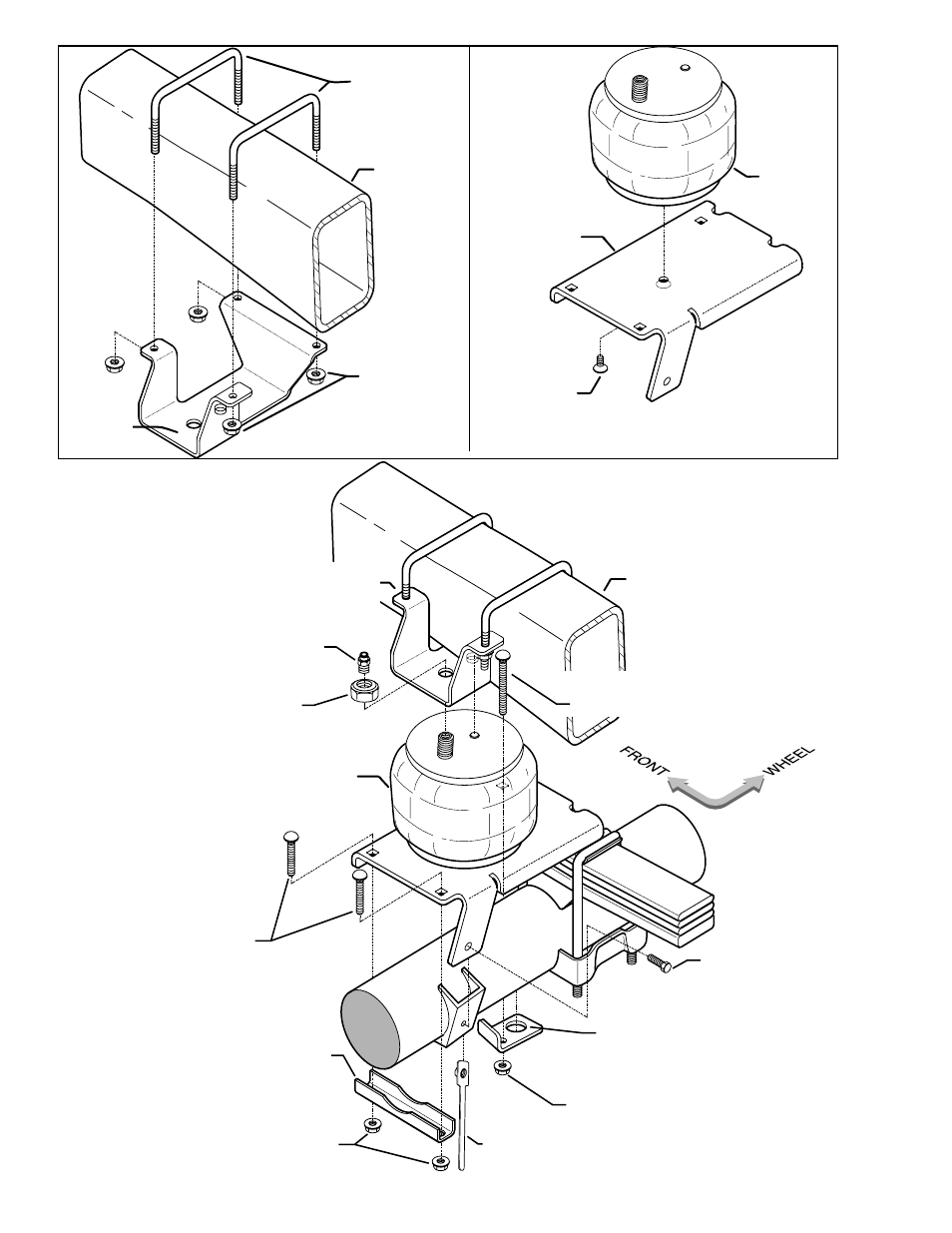

FIGURE “A”
2423
IMPORTANT!:
SEE FLYER FOR
HEAT SHIELD INSTALLATION
