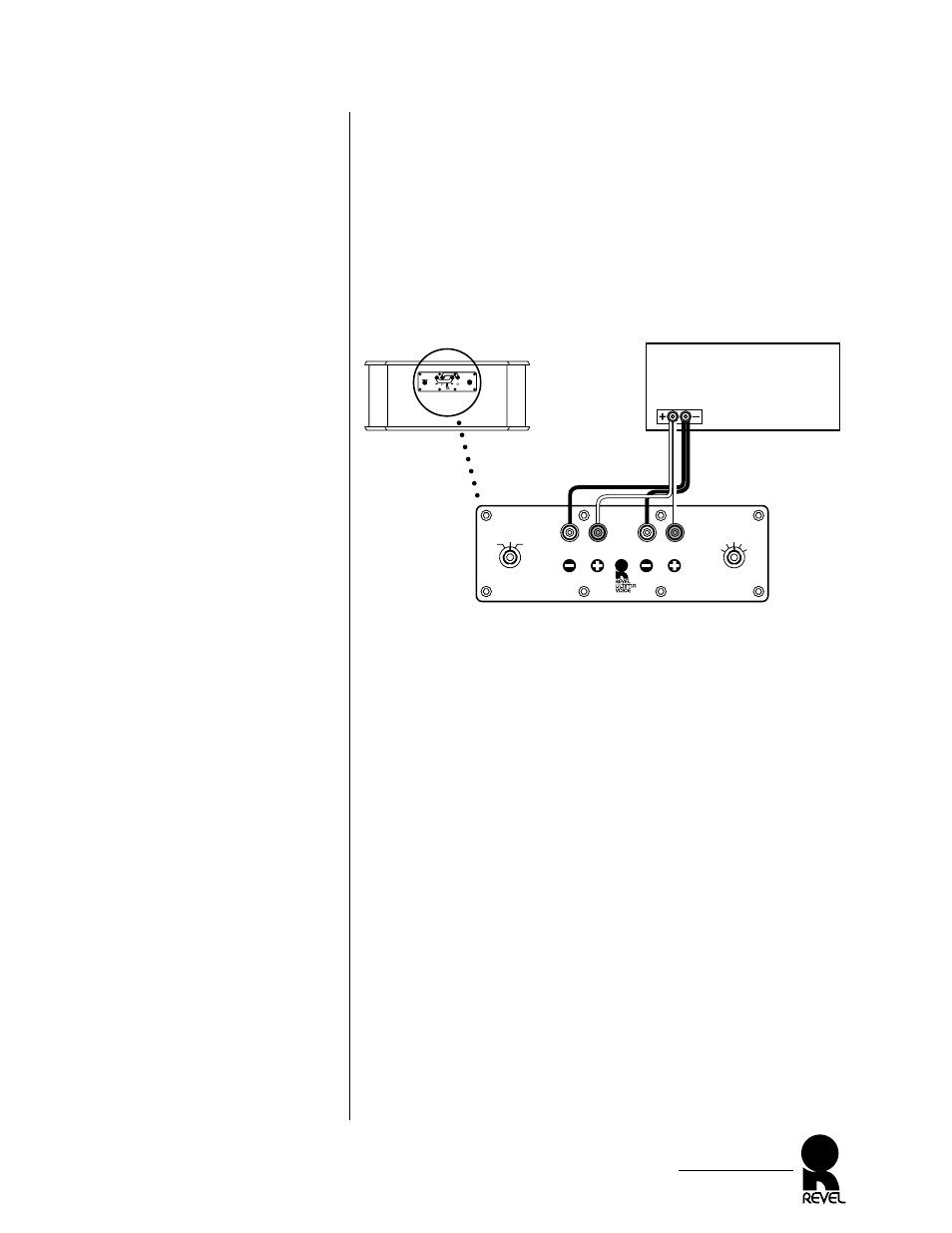

Figure 7. How to connect
the VOICE center-channel
speaker in a bi-wired system.
BI-WIRED SYSTEM CONNECTIONS
A bi-wired system involves two pairs of speaker wires connected to a
single amplifier channel. On the rear of the VOICE speaker, remove
the shorting straps and connect the
+
and
−
of one pair of wires to
the HIGH FREQUENCY INPUT terminals and the
+
and
−
of
the other pair of wires to the LOW FREQUENCY INPUT termi-
nals, as shown in Figure 7. Check with your Revel dealer for recom-
mendations and possible benefits for your application.
