8
REVEL I20/I30 Back Box
Installation Instructions
3. Firmly secure the back box into place
using nails as shown in Figure 5
(above).
Caution
Installers must adhere to local building
codes to ensure a proper installation.
Harman Specialty Group is not respon-
sible for any possible damages caused
by improper installation.
4. Connect the power amplifier cables to
the outside of the back box terminal
cup as shown in Figure 6 (next
column). Loosen the terminal connec-
tors by hand (counterclockwise) on the
terminal cup’s positive (+) and nega-
tive (-) binding posts.
Note
The terminal cup can be removed from
inside the back box if it is necessary to
retighten the amplifier cable connections.

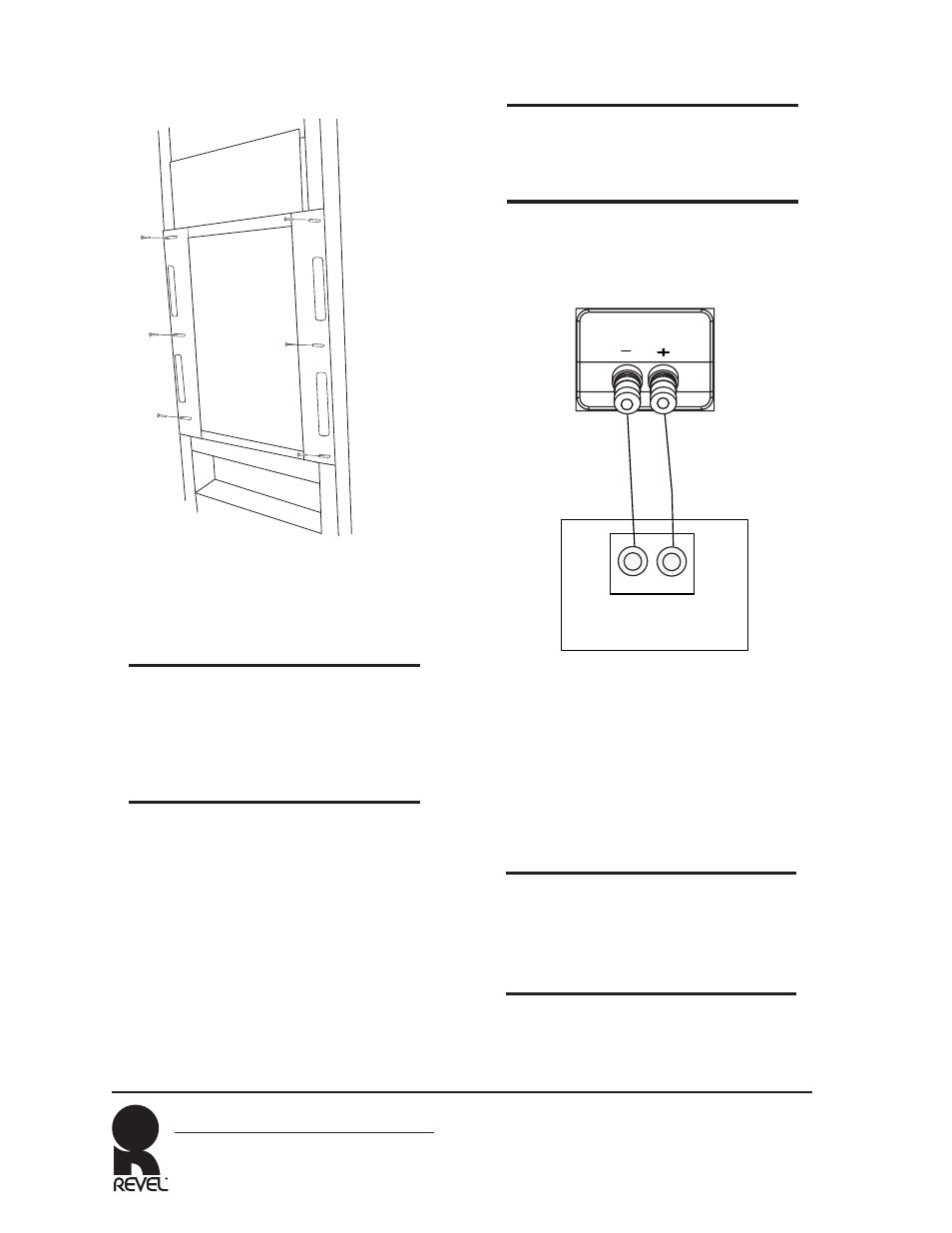

Figure 5: Fasten Back Box to Wall Studs
Back Box Terminal Cup
+ -
Binding Posts
Power Amplifier
5. Insert the amplifier wire and retighten
the connectors by hand (clockwise).
When making connections, use the tie
wrap mount located next to the binding
posts to wrap cable ties for strain relief.
Caution
Be sure to comply with local wiring
codes. Harman Specialty Group is not
responsible for any damages or injuries
that may result from faulty wiring.
Figure 6: Amplifier Connections
