6
REVEL I20/I30 Back Box
Installation Instructions
About the Back Box
Thank you for purchasing the Revel
I20/I30 Back Box, an optional rear enclo-
sure for the Revel I20/I30 In-Wall
Loudspeaker which provides optimum vol-
ume for woofer alignment and reduces
acoustic bleed through to rooms adjacent
to your listening area. The I20/I30 Back
Box also functions as a mounting bracket
designed to facilitate the installation of the
Revel I20/I30 In-Wall loudspeakers in new
construction or major retro-fit installations.
The back box improves sonic performance
while providing solid support for the
speaker mounting frame and baffle assem-
bly. Since the back box is installed before
the drywall is mounted, it allows the
speakers to be mounted in a clean, effi-
cient manner.
The Revel I20/I30 Back Box measures
17.50 x 29.50-inches (444.5 x 749.3mm)
(including the flanges). The back box is
designed to mount between two 2x4-inch
(or 2x6-inch) wall studs on 16-inch centers.
See the illustrations below for inner dimen-
sions.
Installation Instructions
The following items are required for instal-
lation:
• tape measure
• carpenter’s level
• pencil
• hammer
• nails
• drywall section
• drywall screws
• staples/U nails
• utility knife
• service wire (included)
• work gloves
• face mask
Caution
The back box should be installed by a
professional. Installers must adhere to
local building codes to ensure a proper
installation. Harman Specialty Group is
not responsible for any injury or dam-
age caused by improper installation.
14.84-inches
(376.9mm)
10.65-inches
(270.5mm)
17.50-inches
(444.5mm)
13.57-inches
(344.7mm
16.78-inches
(426.2.mm)
28.62-inches
(727mm
Place side flange
on top of stud
This flange fits in between wall studs
In-wall fits here
19.22-inches
(488.2mm)
12.50-inches
(317.5mm)
28.62-inches
(749.3mm)
17.50-inches
(444.5mm)
13.57-inches
(344.7mm
21.16-inches
(537.5mm)

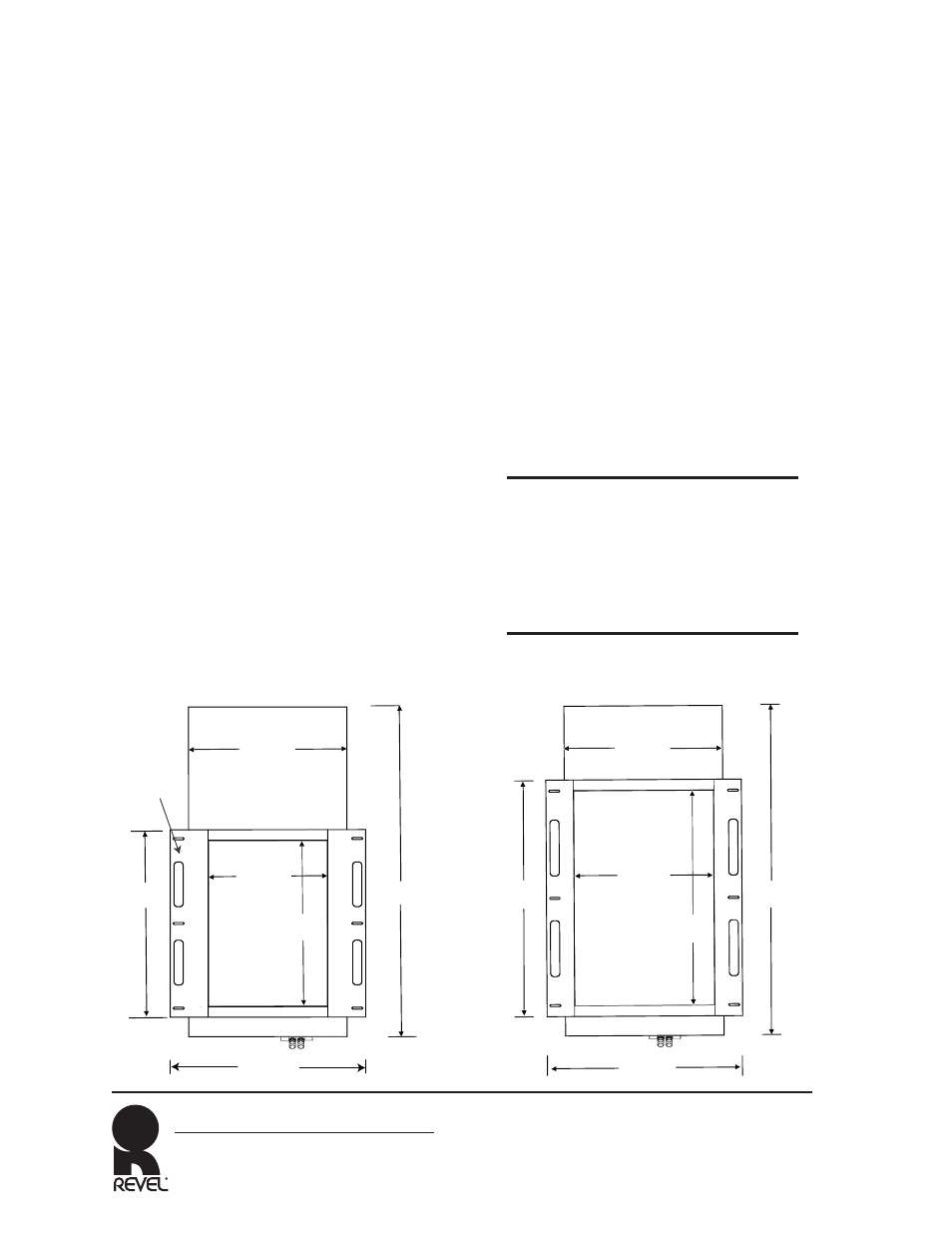

Figure 1: I20 Back Box Height & Width Figure 2: I30 Back Box Height & Width
