REVEL I20/I30 Back Box
Installation Instructions
13. Locate the loudspeaker’s binding posts
as shown in illustration A of Figure 9
above. From the top of the speaker, run
the terminal cup wires down to the
loudspeaker’s binding posts as shown
in illustrations B and C above. The
wires are 18-inches long. If necessary,
use the extra service wire (provided).
14. Loosen the terminal connectors by
hand (counterclockwise) on the bind-
ing posts until the holes in their
threaded posts are visible. Insert the
banana plugs from the top as shown
in illustration B in Figure 9 above.
Make all connections observing the proper
polarity, positive to positive (+) and nega-
tive to negative (-). The banana plugs and
terminal connectors are color-coded for
simple identification: red (positive) and
black (negative).
15. Retighten the terminal connectors to
ensure a secure connection.
16. Refer to the Revel I20/I30 In-Wall
Loudspeaker Owner’s Manual for
complete instructions on installing the
speaker baffle to complete the installa-
tion.
I20/I30 BACK BOX
OUTER DIMENSIONS
Width 17.50-inches (444.5mm)
Height 28.62-inches (727mm)
Depth 3.375-inches (85.7mm)
OBTAINING SERVICE
Before returning a product for warranty or
non-warranty service, contact your author-
ized Revel dealer.

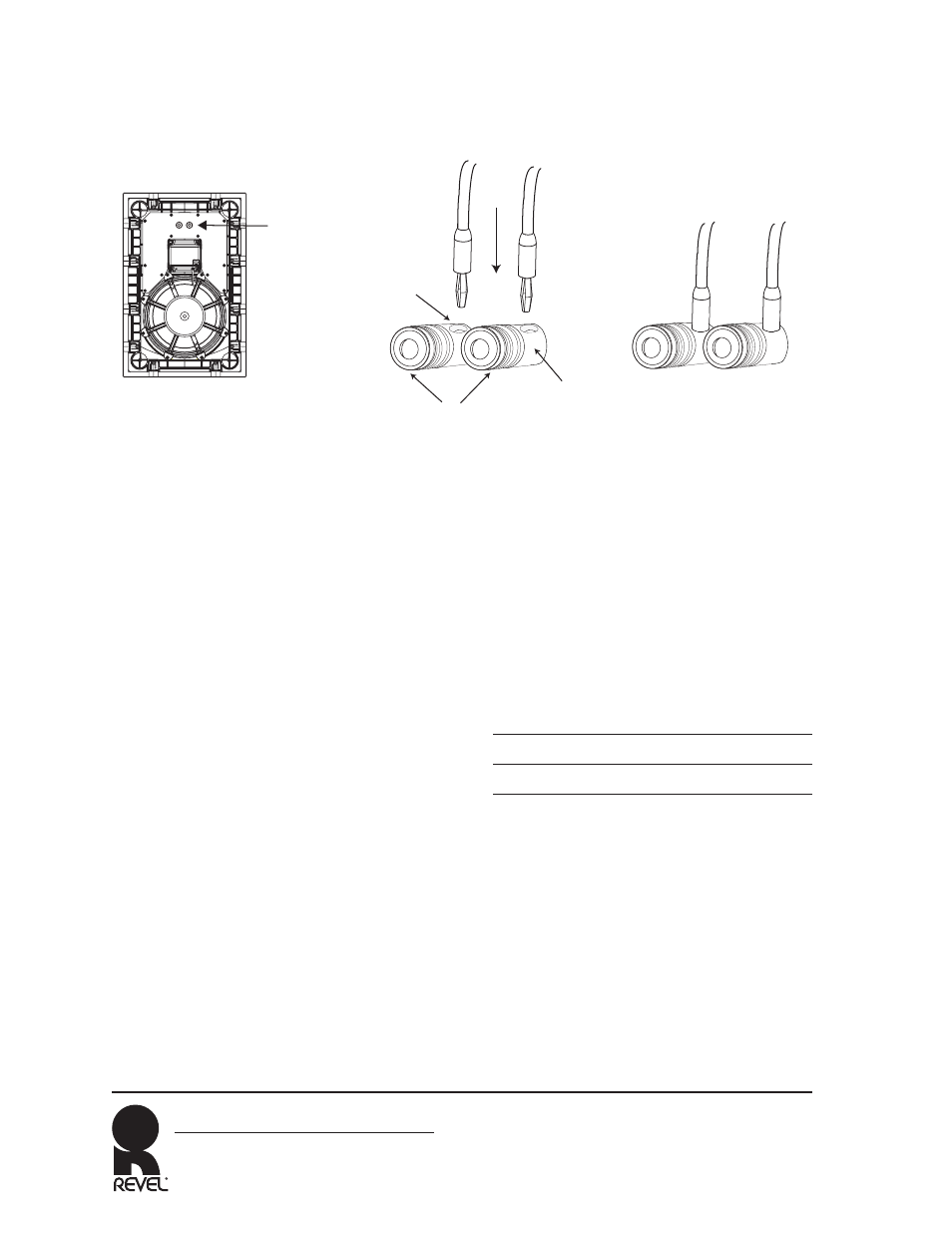

Figure 9: Speaker Connections
Exposed Binding Post
Make Connections
Observing Proper Polarity
In-wall Speaker Rear
Binding Posts
A B C
Insert Banana Plugs
into exposed holes
Terminal Connectors
