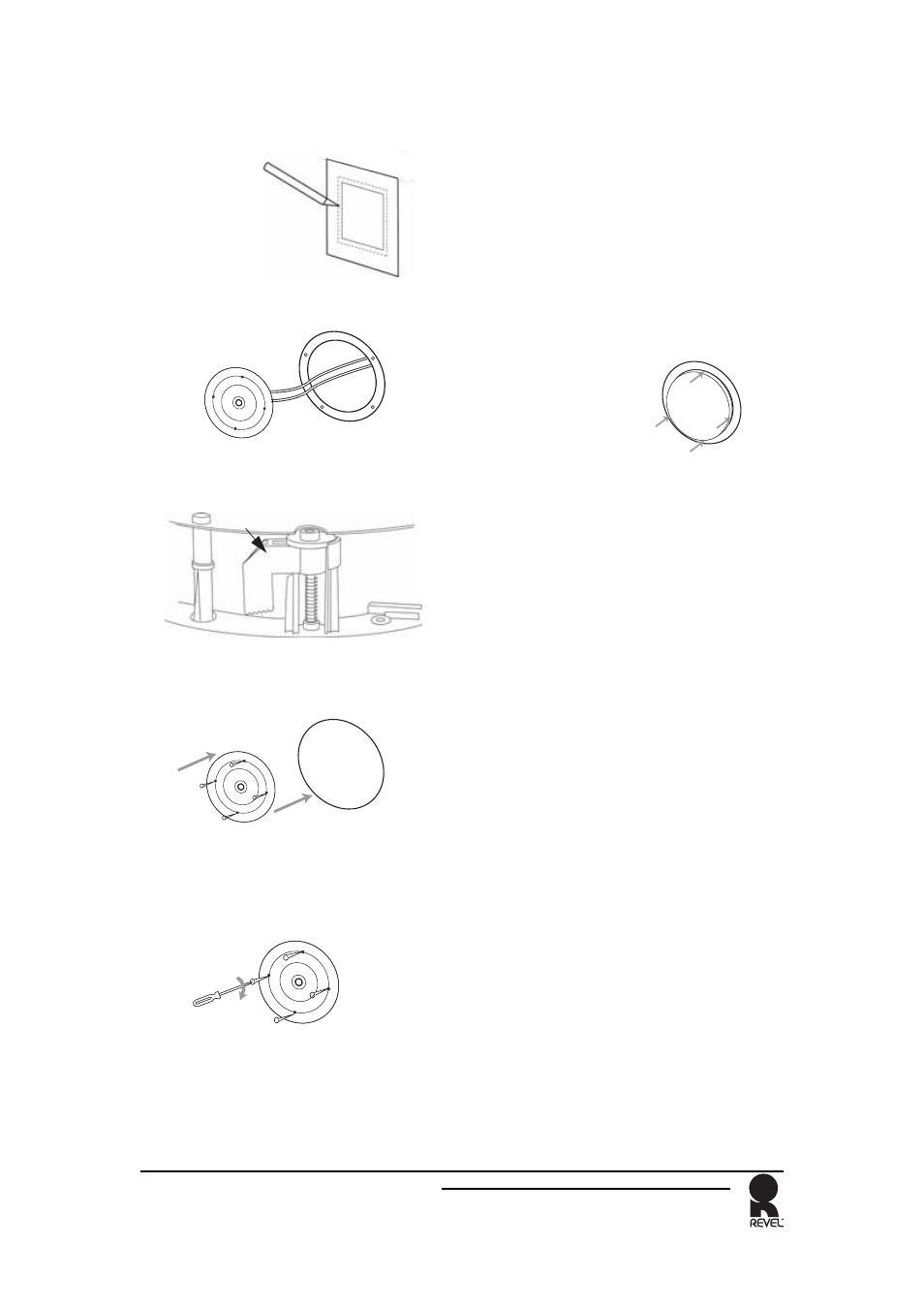

Cut the drywall
along the speaker
template marks
made in Step 2.
4. Connect the speaker wires to the speaker. Ensure
that the polarity of each connection is correct.
5. Ensure that all four locking tabs are properly
positioned against the locking-tab stops, located on
the speaker frame.
Carefully place the frame assembly into the ceiling,
ensuring that there is no more than 1/8" play
between the frame and the ceiling cutout.
After positioning the speaker into the mounting
location, back each screw out one full turn
counterclockwise.
6. Screw down each of the four Phillips-head screws,
alternating between the four screws.
The locking tabs will swivel into place and secure
the unit to the rear surface of the ceiling panel.
Hand-tighten with a nonpowered, straight-handle
Phillips-head screwdriver only. Ensure that the
speaker is securely held in place and that all four
locking tabs are firmly resting against the ceiling
material.
Note:
Do not use a socket wrench, powered
screwdriver, drill or any other
powered tool.
7. Attach the metal grille
and logo.
Locking Tab
