VirtualDJ 8 – Reloop Terminal Mix 8 12

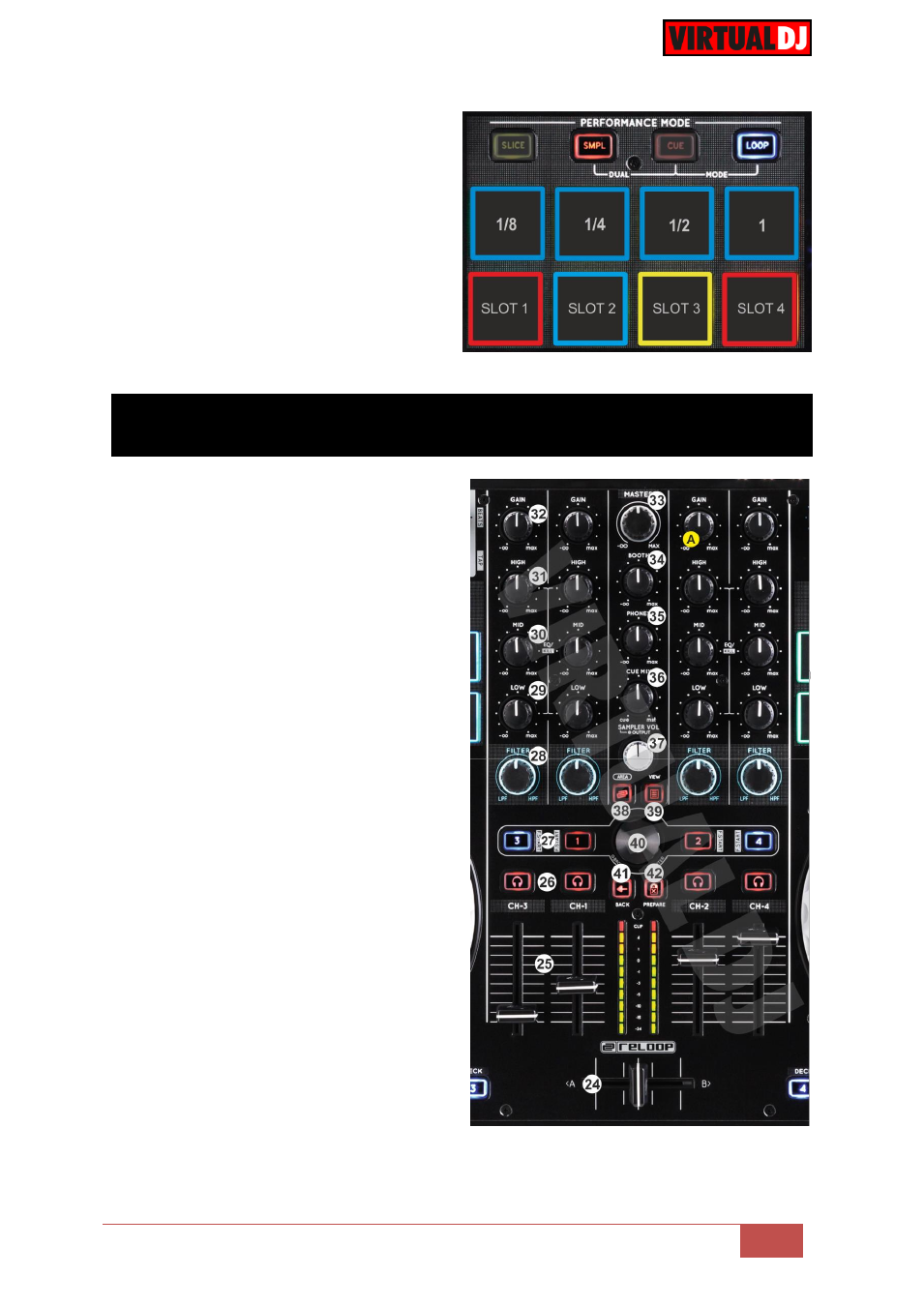

In this mode the top 4 PADs will trigger a
Loop of a different size (from 1/8 to 1
beat)
Hold SHIFT down and then use the same
PADs to trigger a momentary Loop Roll of
a different size (1/16 to 1/2 beats)
The 4 lower PADs will trigger a Sample
(slots 1 to 4) Depending on the selected
trigger mode, use SHIFT and the same
pads to stop the sample.
E. MIXER & BROWSER
24. CROSSFADER. Blends audio
between the channels assigned to the
left and right side of the crossfader.
25. VOLUME. Adjust the Volume of each
channel.
26. PFL. Press these buttons to send
each channel to the Headphones
Output channel.
27. LOAD. Press these buttons to load
the selected track from the Browser
to decks 1 to 4. The LED of the button
will be on if the deck is loaded. Hold
SHIFT down and then press one of
these buttons to enable the Fader
Start on a deck.
28. FILTER. Use this knob to apply a
High/Low Pass Filter to the deck. In
middle position no filter is applied.
29. EQ LOW. Adjust the Low (Bass)
frequencies for each mixer channel.
30. EQ MID. Adjust the Mid frequencies
for each mixer channel.
31. EQ HIGH. Adjust the High (Treble)
frequencies for each mixer channel.
32. GAIN. Adjust the Gain of each mixer
channel.
