- 8 -
TROUBLESHOOTING
If correctly oriented bullets fall off of the sorting plate too
early, change to a shallower Bowl angle adjustment.

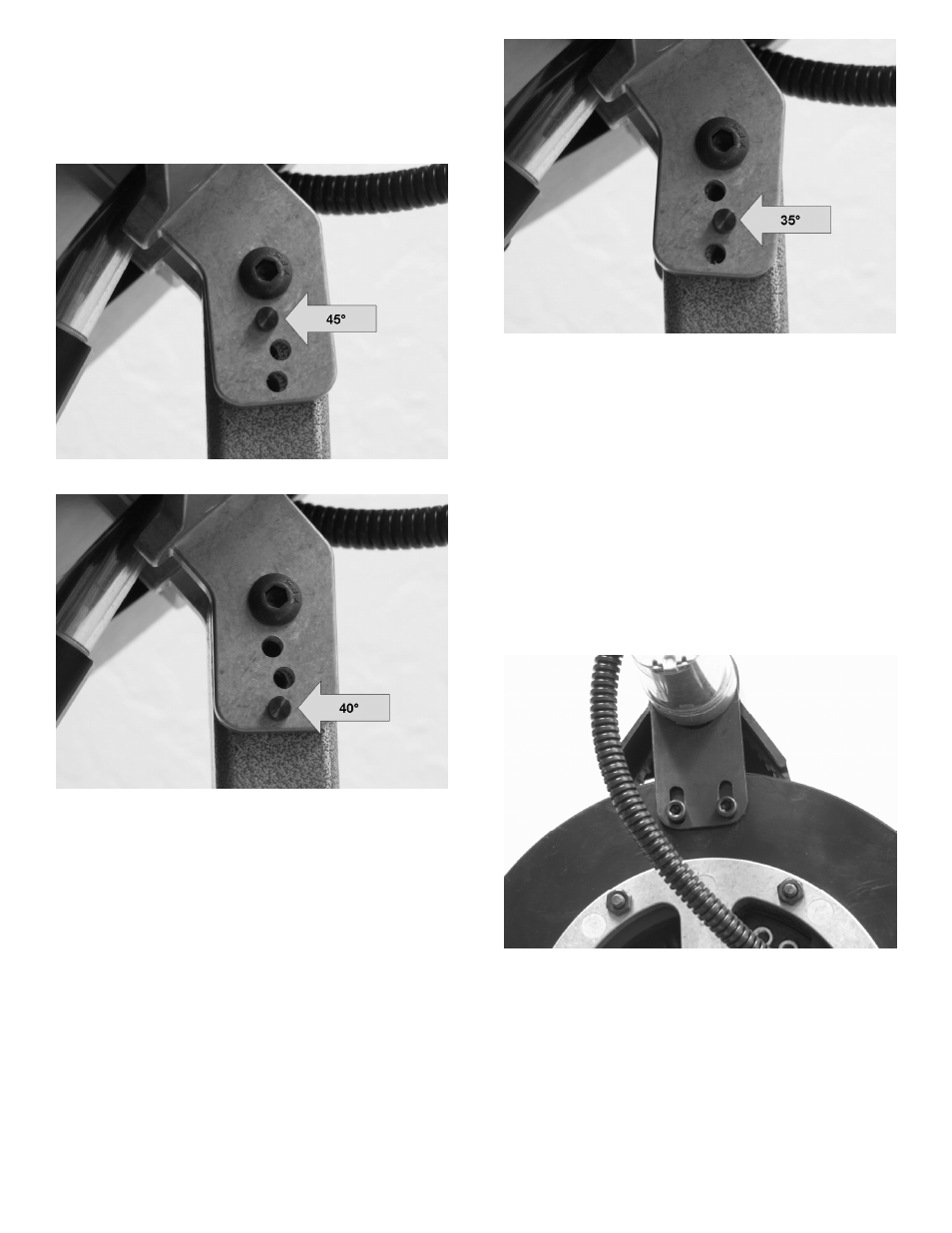

Move the Bracket Pin from the 45 or 40 degree position
to the 40 or 35 degree position.
45°position-top
40°position-bottom
35°position-middle
If changing the angle does not correct the problem,
install the Shut Off into the bowl.
MAINTENANCE
Periodically wipe down the inner part of the Bowl and
Bullet Wheel to remove dust and debris.
Also, disassemble the Bullet Die body and clean the
Bullet Guide and Bullet Fingers to ensure smooth
function.
The drive belt may need adjustment as the belt wears.
Loosen the two FHCS and apply more tension on the
belt. Re-tighten the two FHCS.
