- 4 -

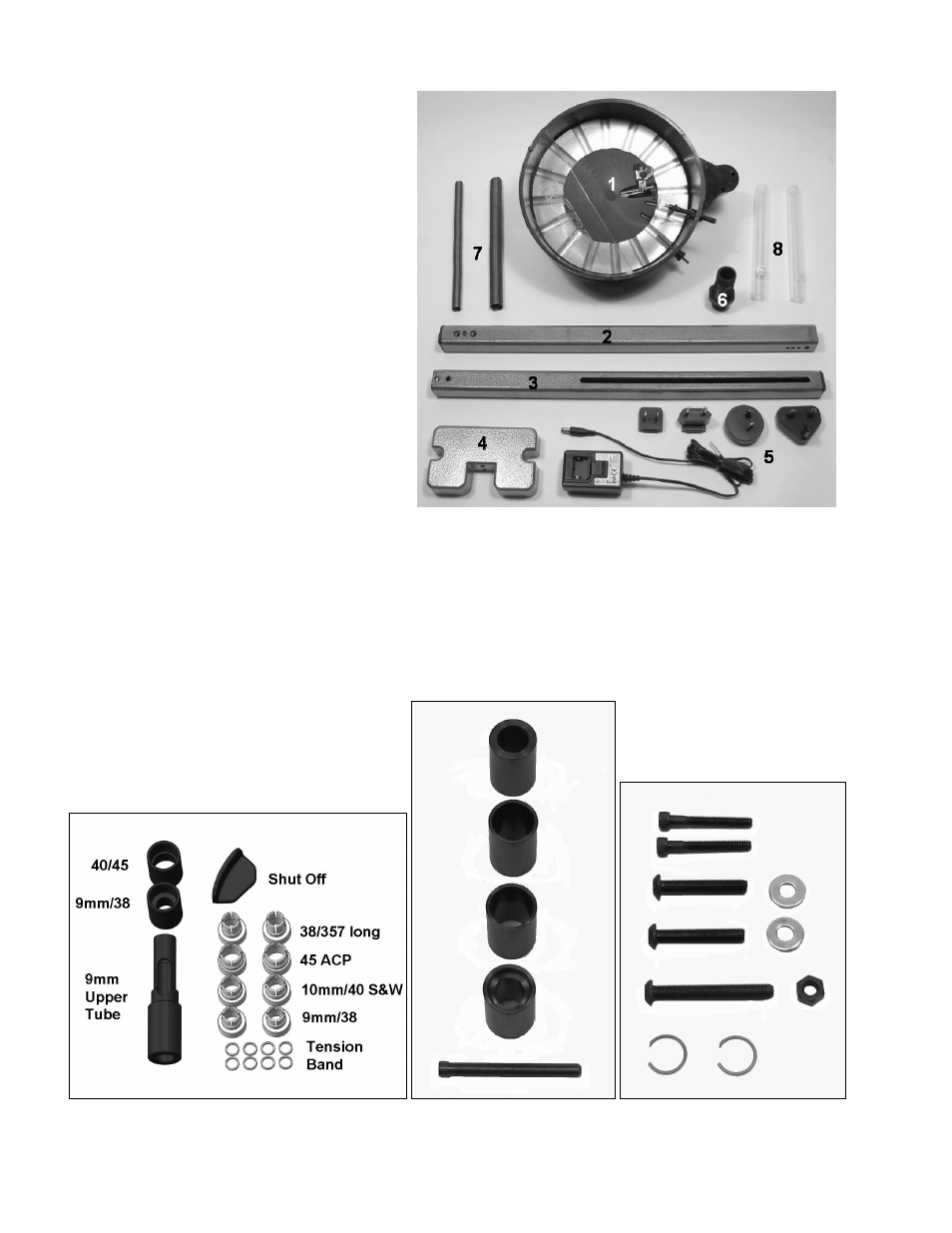

UNPACKING
Refer to the list below to Identify parts as you unpack your new Bullet Feeder – Pistol Kit.
1. Bowl assembly
2. Upper Support Tube
3. Lower Support Tube
4. Support Foot
5. Power Supply and Plug adapters
6. Bullet Die body
7. Continuous Spring Tubes
8. Plastic Lower Clear Tubes
BF – Pistol Kit Parts Bag #1
BF – Pistol Kit Parts Bag #2 BF – Pistol Kit Parts Bag #3
Upper Tube 9mm Bullet Guide 9mm/38 10-24x 1 ½ SHCS(2)
Tube Adapter 38/357 Bullet Guide 40 ¼-28x 1 ½ BHCS(2)
Tube Adapter 40/45 Bullet Guide 45 ¼-28x2 BHCS
Shutoff Bullet Guide 38/357 Long ¼” Flat Washer(2)
Bullet Fingers(2) 9mm/38 Bracket Pin VH-62 Retaining Ring(2)
Bullet Fingers(2) 40
Bullet Fingers(2) 45
Bullet Fingers(2) 38/357 Long
Tension Bands (8)
Bag 1 Bag 2 Bag 3
