Nipros DC-P155 User Manual

Dc-p155, Features, Outsideview and dimensions ■speciﬁcations

DC-P155

DC Cable for Panasonic AVCCAM

For using DC-P155.

Operating

Instructions

Before operating your DC-P155, please read this manual thoroughly and remain it for future reference.

■Features

・ Connecting to the DC power output 4-pin connector of the camera adaptor or the shoulder adaptor

ST-7, outputs the DC power to the Panasonic camera, AG-AC160/130, 150 series, etc.

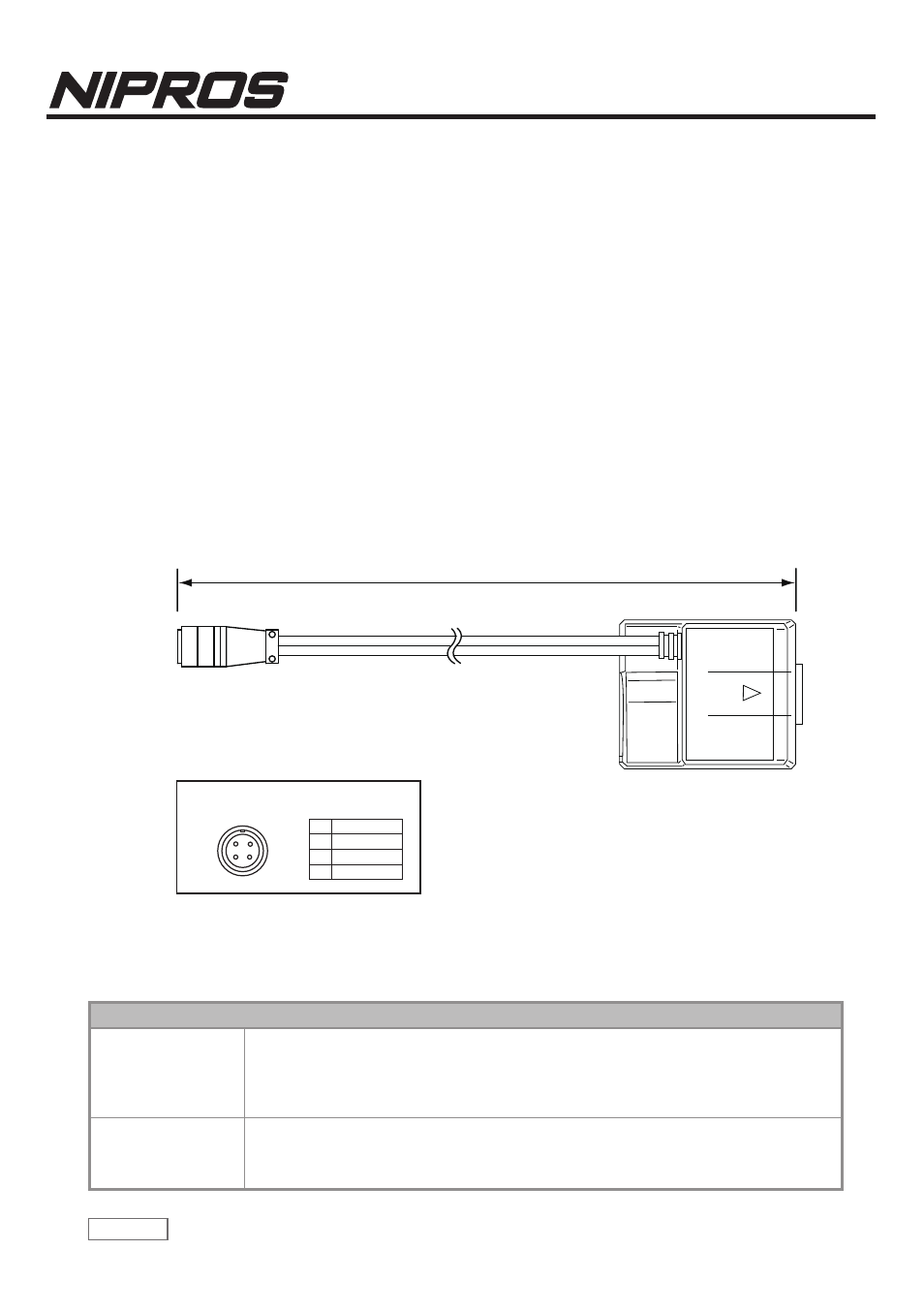

■Outsideview and Dimensions

■Speciﬁcations

Connector

Cable Length

1 Mini 4-pin connector, male

1 DC connector for Panasonic , 7.6 V DC output

(equiped with the DC/DC converter)

0.5 m

Speciﬁcations

DC connector

for Panasonic AG-AC160

AG-AC130

150 series

Mini 4-pin connector

0.5 m

1
2
3
4

DC 12 V input

mini 4-pin (male)

DC12V(G)
NC
NC

DC12V(＋)

NIPROS accept no liability whatever for damages arising from improper use not conforming to the

instructions in the instruction manuals.

NIPROS accept no liability whatever for incidental damages arising out of the use or inability to use

the product, including, but not limited to, damage to the camera, etc., corruption or loss of data, lost

business revenue or suspension of business operations.

NOTE

Features, design and speciﬁcations are subject to change without notice.
