TC-550
External Tally cable
Thank you to use TC-550.
Operating
Instructions
Before operating your TC-550 , please read this manual thoroughly and remain it for future reference.
■Features
・ Used to Input the tally signal from the Switcher to the Base Station PS-570, LS-800 or ES-600
and to output the tally signal to the next Base Station.

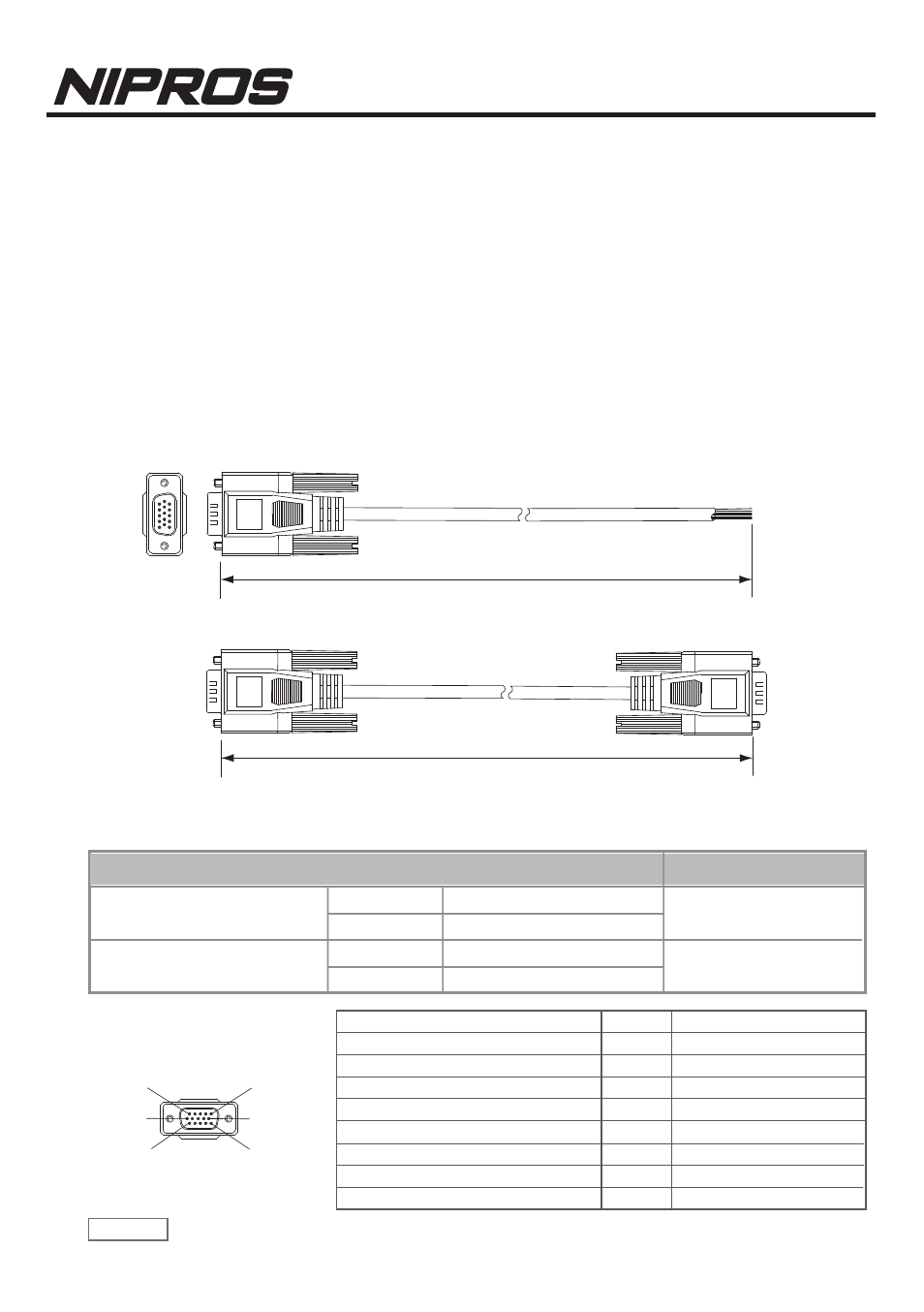

■Outsideview and Dimensions
■Specifications
Cable Length 1.5 m
Connector 2× HD D-sub 15-pin, male
Specifications
Connector 1× HD D-sub 15-pin, male
For connection between
Base Station and Switcher.
For connection between
Base Station and next
Base Station Cable Length 0.97 m
TM
1.5 m
HD D-sub 15-pin - cut (one side is not connected) Cable
HD D-sub 15-pin - HD D-sub 15-pin Cable
0.97 m
HD D-sub 15-pin - cut Cable
HD D-sub 15-pin -
HD D-sub 15-pin Cable
Pin No. Core wire Color Code
1 Black
2 Brown
3 Red
4 Orange
5 Yellow
6 Green
7 Blue
8 Purple
1
10
11 15
5
6
HD D-sub 15-pin Cable
Core Wire Color Code
Pin No. Core wire Color Code
9 Gray
10 White
11 Pink
12 Light green
13 Black / White
14 Brown / White
15 Red / White
SHELL Drain wire
NOTE Features, design and specifications are subject to change without notice.
NIPROS accept no liability whatever for damages arising from improper use not conforming to the
instructions in the instruction manuals.
NIPROS accept no liability whatever for incidental damages arising out of the use or inability to use
the product, including, but not limited to, damage to the camera, etc., corruption or loss of data, lost
business revenue or suspension of business operations.
