4 ch Field Mixer FS-40X

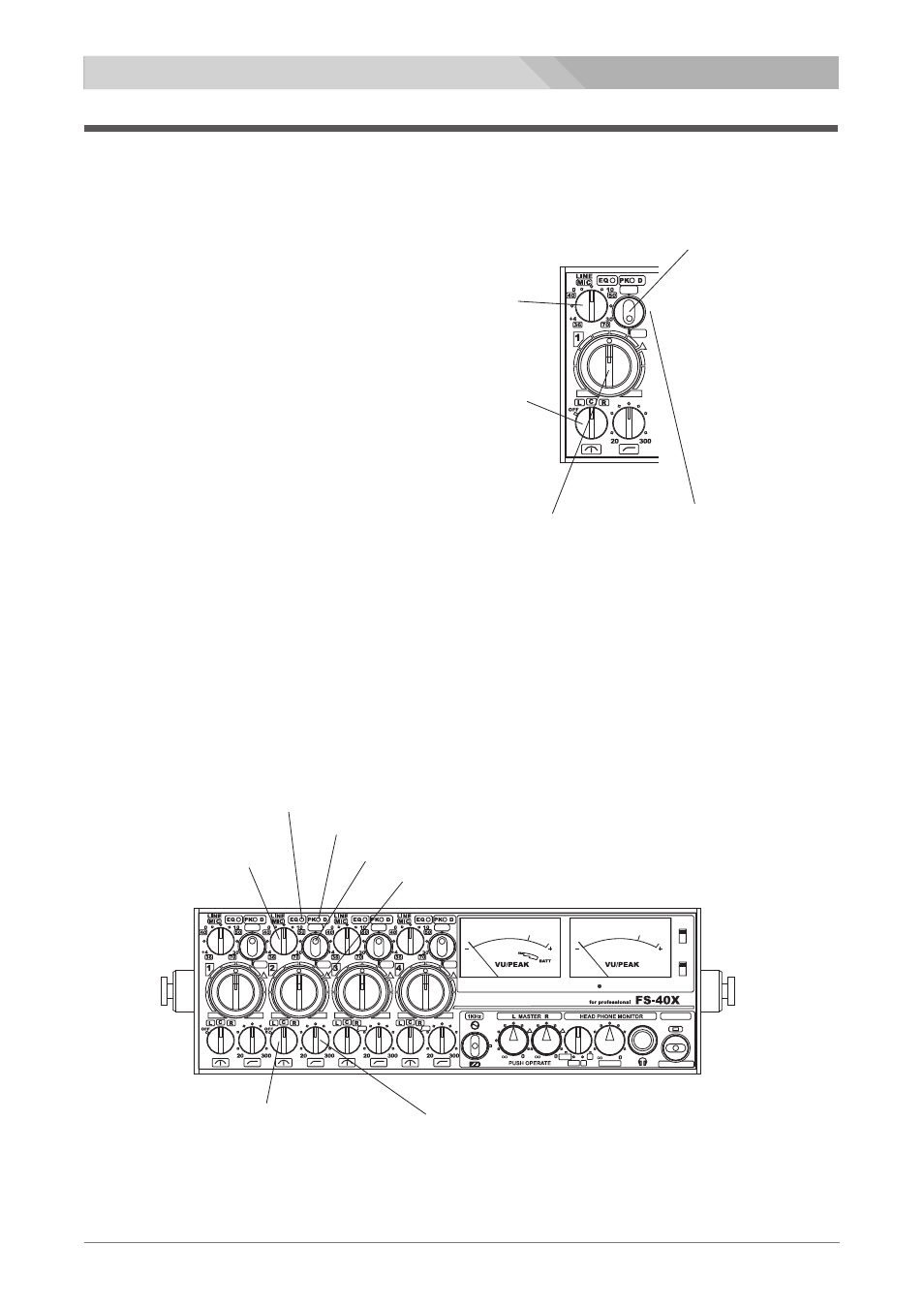

Input Level Adjustment
Use
MIC/LINE
Volume Control
EQ LED＝Equalizer ON/OFF
LMT/PFL Switch
PEAK/DIRECT LED
Red Mark=Standard Level
L＝mixed to L channel
C＝mixed to L and R channel
R＝mixed to R channel
MS=for ＭＳ microphone(3/4ch)
OFF=not mixed(not output)
Low Cut Filter Cut-off Frequency Control
To adjust the cut-off frequency of the L.C.F.
in the frequency range from 20 Hz to 200 Hz
to cut the low frequency noise, for example the
wind noise, etc.
Output CH Select Switch
POWER
INT OFF EXT
METER
SELECT
VU
PK
R / PFL L / BATT
L
R
FIELD MIXER
LEVEL
LMT
PFL
L
L+R
VU
PK
MS
0
L
R R /
LMT
PFL
LMT
PFL
LMT
PFL
0 0 0
MS
set to any position
LMT/PFL Switch
adjust
adjust
■Adjust the input level
１．While holding the LMT/PFL switch of the channel
connected to the input connector pressed down,
turn the LINE/MIC volume control to adjust the
input level to the appropriate volume.
２．Set the L/C/R channel select switch to any
position.
３．Adjust the input level to the appropriate volume
by the CH volume control (CH fader).
４．After setting the input level, turn on the LMT/PFL switch when using the LIMITER.
Turning on the LMT/PFL switch to LMT position, at the time of the sudden excessive input the
LIMITER functions to prevent the input signal from being distorted and the sound from breaking.
（NOTE）This operation must be carried out when the LMT/PFL switch is turned off.
MIC/LINE Input Level
Volume Control
CH select switch
press down
CH volume control
(CH fader)
The MAS LMT output limiter functions when the MAS LMT switch is set to +9 , +6 or +3dB.
The MAS LMT output limiter functions more strongly when the MAS LMT switch is set to the
+3dB position than set to the +9dB position. Set it as needed.
LMT
PFL
0
LMT/PFL Switch
OFF(neutral)
