4. Fix the ZOOM DEMAND AS-1P and
the FOCUS DEMAND FR-P1 on the
pan handle of the tripod.

ZOOM DEMAND
AS-1P

FOCUS DEMAND
FR-P1

5. Get the best balance for mounting
the camera, monitor and HDS-300
on the tripod.

3. Mount a Monitor to the Quick shoe
adaptor on the head of HDS-300.

NOTE :
Slide forward the monitor along
the groove of the Quick shoe
adaptor until it clicks.

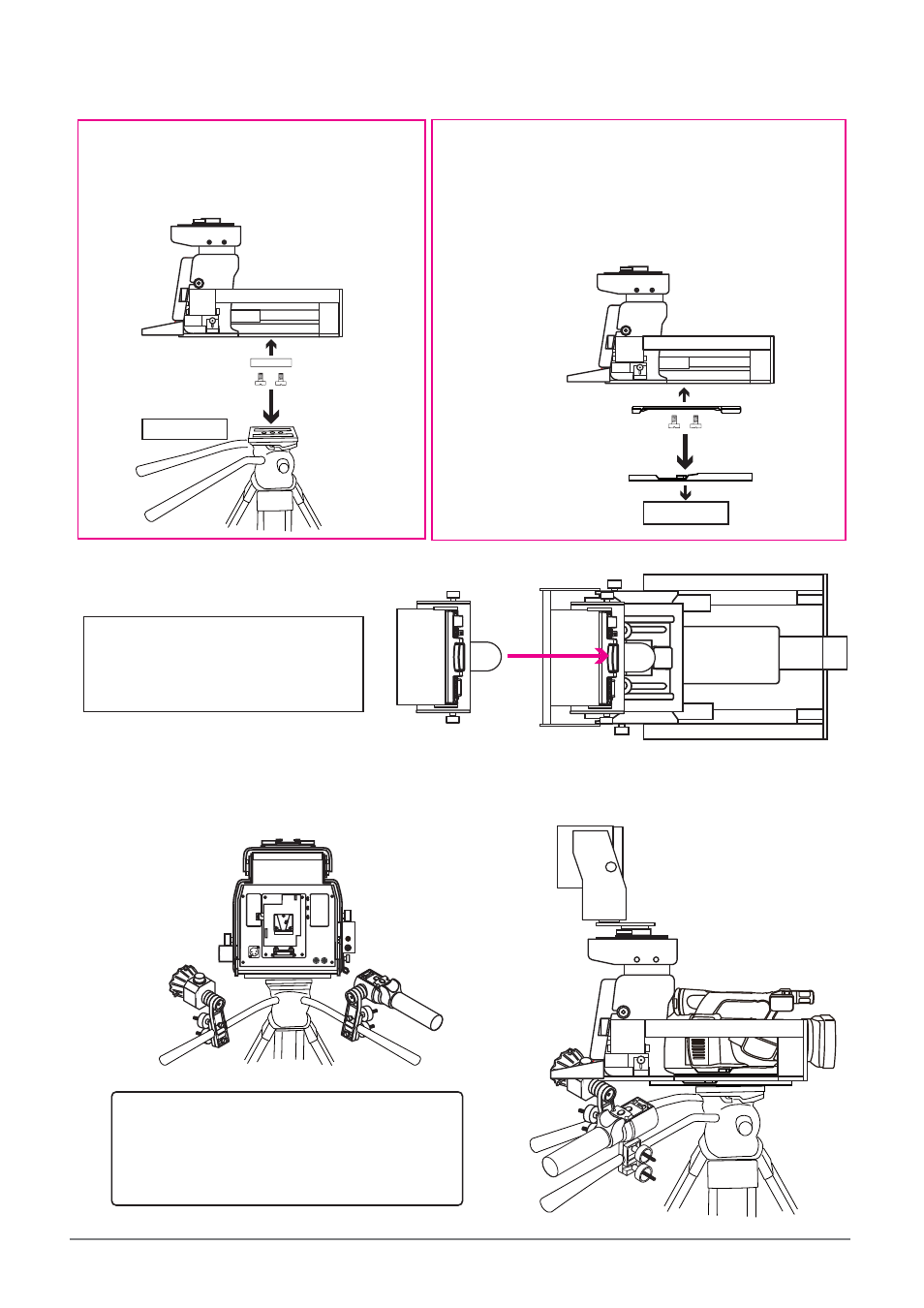

2.1. Mount the HDS-300 to a tripod directly.

Tripod Plate

2.2.Using a Tripod Base

Tripod Base

Tripod Adaptor Plate

Tripodpod

2. Mount the HDS-300 to a tripod.

1. Attach the tripod plate to the bottom of

the HDS-300 with the supplied screw.

2. Mount the HDS-300 and camera to a tripod.

1. Attach a Tripod Base to a tripod and secure it with the

supplied screw.

2. Attach a Tripod Adaptor Plate (ST-2, optional) to the

bottom of the HDS-300 and secure it with the supplied

screw.

3. Mount the HDS-300 and camera to a tripod.

AS-1P and FR-P1 can be attached
to either right and left pan handle
of a tripod.
