リアパネル
Rear panel
ZOOM connector (φ2.5 mini-jack)
REMOTE connector (10-pin)
Connect to an ZOOM DEMAND with the supplied cable.
ZOOM リモコンに接続します。
Connect to the camera manufacturer s remote controller with the cable supplied with the remote controller.
However, the REMOTE connector can not output the video signal from the camera connected to the ES-500P.
各カメラメーカー製リモコンへリモコン付属のケーブルで接続します。
ただし、この REMOTE コネクタは ES-500P に接続されたカメラからのビデオ信号は出力できません。
ES-600P 各部名称と働き Base Station ES-600P
Do not connect and use the REMOTE connector when you use the ZOOM connector
and/or the FOCUS IRIS connector.
Do not connect and use the ZOOM connector and/or the FOCUS IRIS connector
when you use the REMOTE connector.

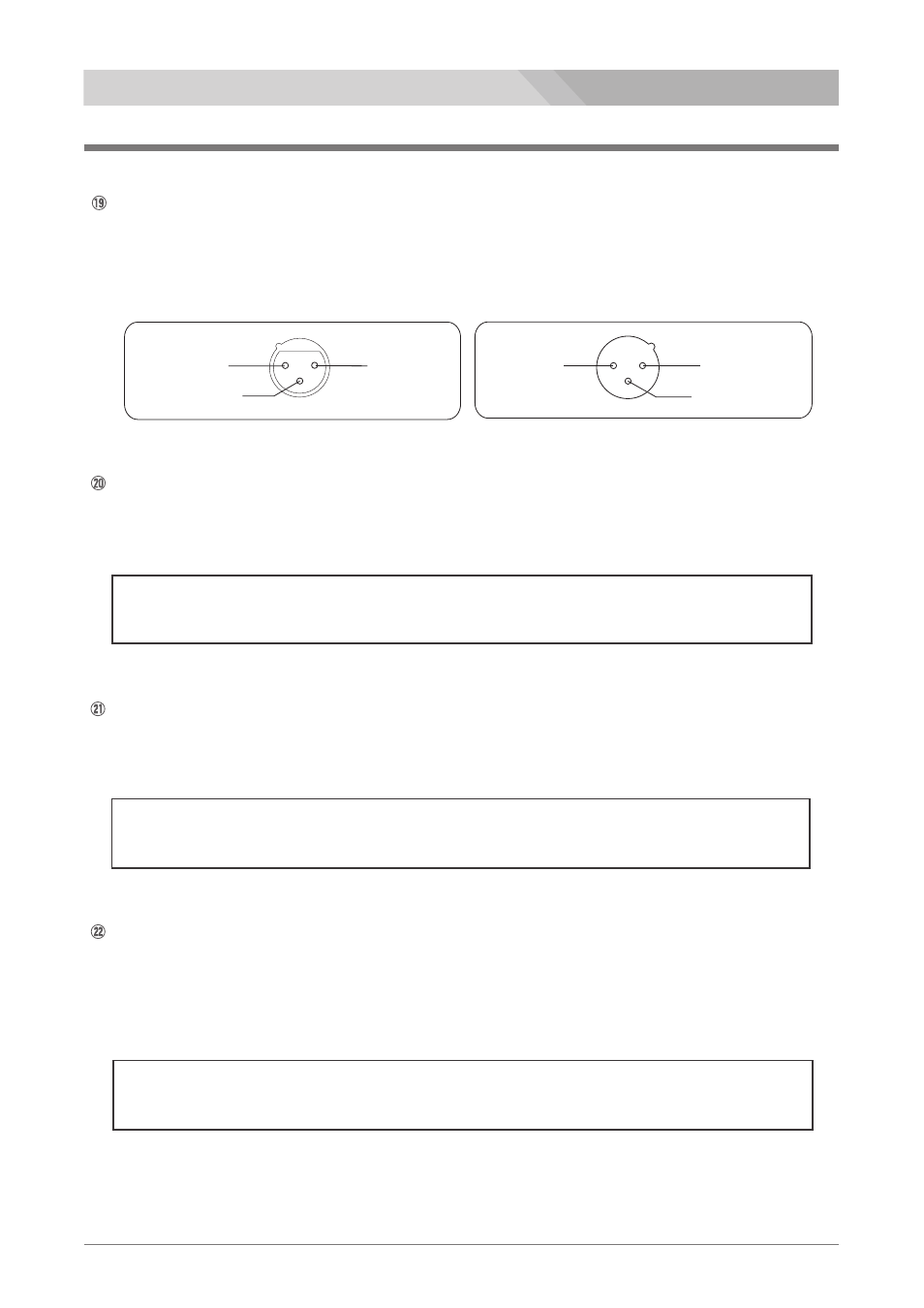

EXT LINE (2W I/O) connectors (XLR 3-pin, female and male)
Connect to an external 2-wire intercom line.
2Wインターカムラインに接続します。
XLR 3-pin,male
1PIN : GND 2PIN : NC
3PIN : INCOM H
Pin assignment XLR 3-pin,female
1PIN : GND 2PIN : NC
3PIN : INCOM H
FOCUS IRIS connector (φ3.5 mini-jack)
Do not connect and use the REMOTE connector when you use the FOCUS IRIS
connector and/or the ZOOM connector.
Connect to an FOCUS IRIS DEMAND with the supplied cable.
FOCUS IRIS リモコンに接続します。
