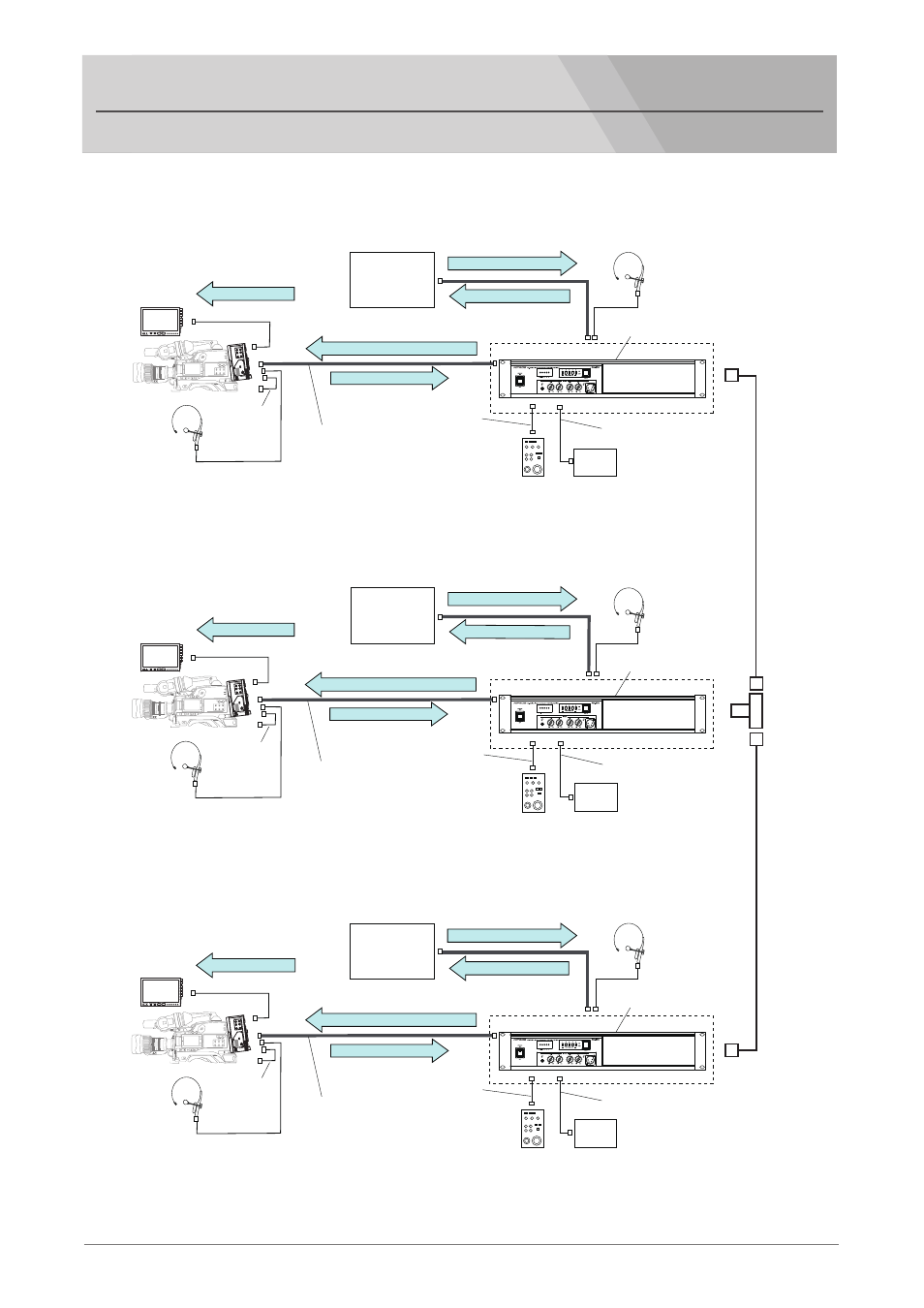

Multi-Camera System Connection Guide
BNC cable for
Incom connector
BNC cable for
Incom connector
Incom
Connector
Incom
Connector
●HD-SDI cable
（BNC）
●PS-570/1
●Rack Mount kit HS-RA90
Blank panel
Switcher
●Camcorder
●PS-470/1
●Headset DL-400
●Headset DL-400
●Optical fiber cable
（Max 2km）
Tally/Return/Power/Incom/Genlock/Remocon
Tally/Return/Genlock
HD-SDI 2/SD-SDI
HD-SDI/SD-SDI/Incom
●6-Pin cable VC-450
●Camera １
●Camera View Finder
LVM-89W Tally/Return/Power
●Camera remote controller
●Reference sync signal
generator
●Reference sync signal
Dedicated cable
(Supplied with
camera remote controller）
T-type BNC
Connector
●PS-570/1
●Rack Mount kit HS-RA90
Blank panel
Switcher
●Headset DL-400 Tally/Return/Genlock
HD-SDI 2/SD-SDI
●Camera 2
●Reference sync signal
generator
●Reference sync signal
●PS-570/1
●Rack Mount kit HS-RA90
Blank panel
Switcher
●Headset DL-400 Tally/Return/Genlock
HD-SDI 2/SD-SDI
●Camera 3
●Reference sync signal
generator
●Reference sync signal
HEADSET1
TALLY
POWER
ON OFF
OFF ON
INCOM/ DC 12V IN HEADSET2
OPTICAL FIBER CAMERA AD APTER
MINI MAX MINI MAX MINI MAX MINI MAX
MIC H.P
SIDE TONE HEADSET 1 HEADS ET2
TALLY HD LS
●Camcorder
●PS-470/1
Tally/Return/Power/Incom/Genlock/Remocon
HD-SDI/SD-SDI/Incom
●6-Pin cable VC-450
HEADSET1
TALLY
POWER
ON OFF
OFF ON
INCOM/ DC 12V I N HEADSET2
OPTICAL FIBER CAMERA ADAPTER
MINI MAX MINI MAX MINI MAX MINI MAX
MIC H.P SIDE TONE
INCOM
HEADSET 1 HEADS ET2
TALLY HD LS
●Camcorder
●PS-470/1
Tally/Return/Power/Incom/Genlock/Remocon
HD-SDI/SD-SDI/Incom
●6-Pin cable VC-450
HEADSET 1
TALLY
POWER
ON OFF
OFF ON
INCOM/ DC 12V I N HEADSET 2
OPTICAL FIBER CAMERA AD APTER
MINI MAX MINI MAX
MINI MAX MINI MAX
MIC H.P
SIDE TONE
INCOM
HEADSET 1 HEADS ET2
TALLY HD LS
Optical Fiber Studio System PS-470/1 PS-570/1 PS-470/1 PS-570/1 システム構成例
COLOR INPUT RGB MARKER MONO 16:9 4:3 PEAKING
●Camera View Finder
LVM-89W
COLOR INPUT RGB MARKER MONO 16:9 4:3 PEAKING
●Camera View Finder
LVM-89W
COLOR INPUT RGB MARKER MONO 16:9 4:3 PEAKING
Tally/Return/Power
Tally/Return/Power
PS-470/1 PS-570/1 OPTICAL FIBER STUDIO SYSTEM CLASS 1 LASER PRODUCT
Multi-Camera System Connection Guide
●HD-SDI cable
（BNC）
●Headset DL-400
●Optical fiber cable
（Max 2km）
●Camera remote controller
Dedicated cable
(Supplied with
camera remote controller）
●Camera remote controller
Dedicated cable
(Supplied with
camera remote controller）
●HD-SDI cable
（BNC）
●Headset DL-400
●Optical fiber cable
（Max 2km）
