Nipros PS-570/1 - Manual (Page 19)

19
PS-470のGENLOCKコネクタからカメラのGENLOCK INコネクタへBNCケーブルで接続します。
Connect the GENLOCK connector to the GENLOCK input connector of the camera with a BNC cable.
to
camera
GENLOCK IN
1
GEN
LOCK
REMOTE L
RET OUT
HD-SDI/
SDI IN
TC
IN
TC
OUT MADE IN JAPAN
TALLY DC OUT
IF OUT
GENLOCK

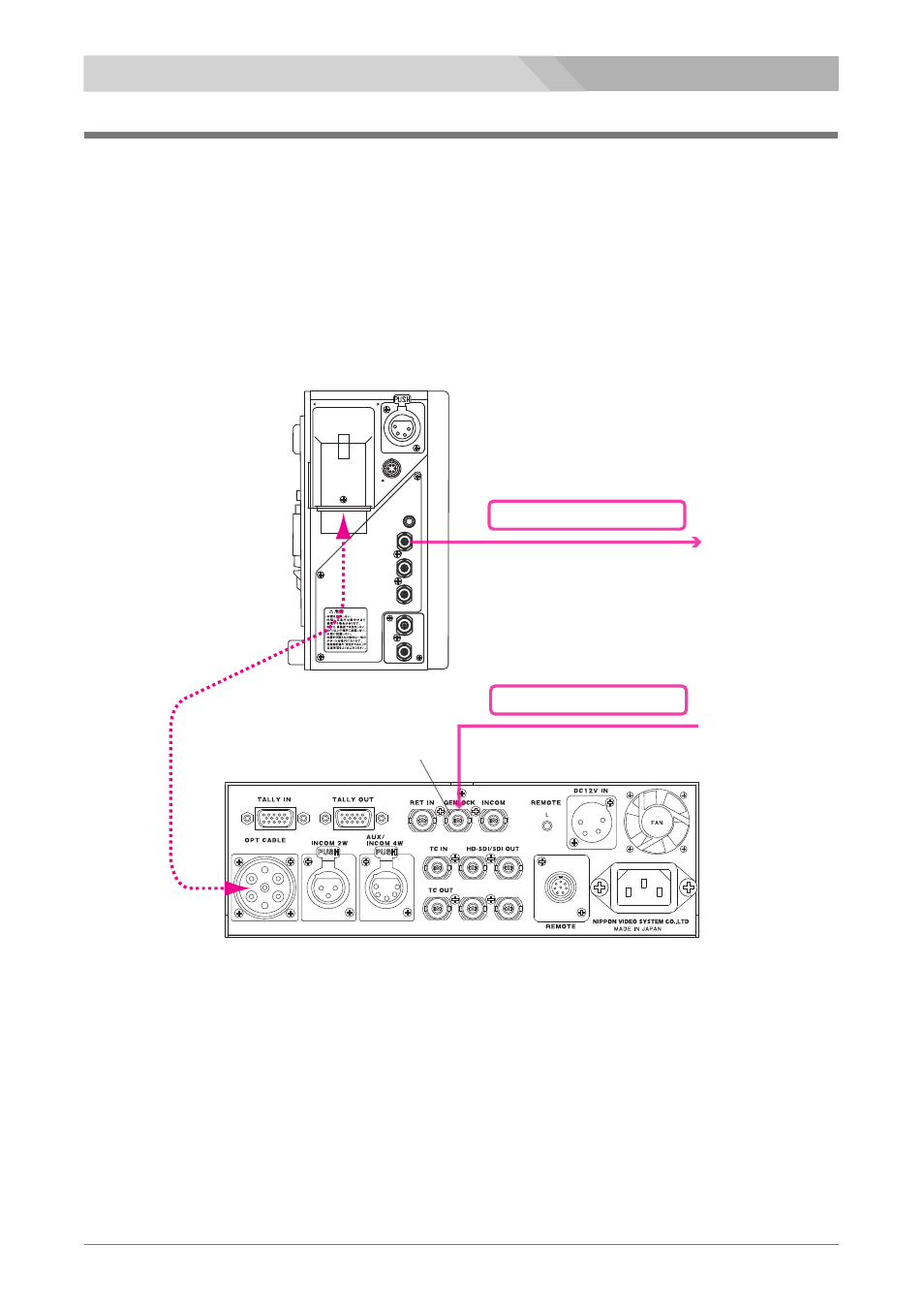

Connection PS-470/1 PS-570/1 接続方法
GENLOCK信号の接続
GENLOCK signal connection
GEN LOCK connector
GENLOCK reference signal
GENLOCK reference signal
from
Genlock
reference
signal
generator
GENLOCK INコネクタにGENLOCK信号(コンポジット信号) 発生器をBNCケーブルで接続します。
HD-Y信号が必要な場合はHD-Y信号を入力して下さい。
Connect the GENLOCK connector to a Genlock reference signal generator with a BNC cable. 2
HD-SDI RET IN
HD-SDI
