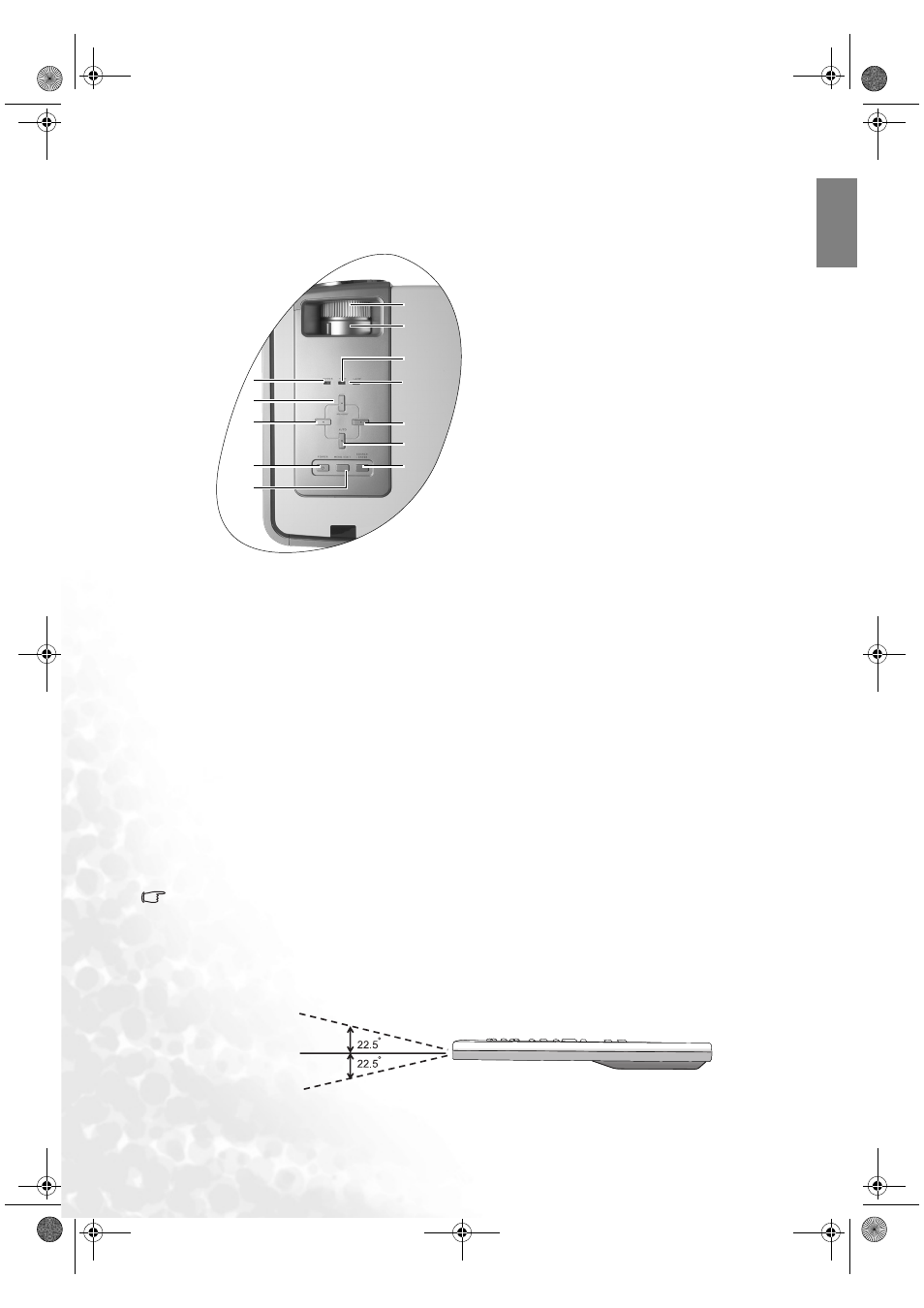

Controls and functions
Control panel
Remote control
Notes on remote control operation
Q Make sure that there is nothing between the remote control and the IR sensor on the projector that might
obstruct the infrared beam.
Q The effective range of the remote control is up to 8 meters from the front of the projector or 8 meters
from the rear of the projector. The remote control must be held at an angle within 45 degrees of the
projector’s IR remote control sensor.
5. MENU / EXIT
Turns the on-screen display control menu on.
Exits and saves the menu settings.
6. Focus Ring (Refer to 20 for more
information.)
Adjusts the focus of the projected image.
7. Zoom Ring (Refer to 20 for more
information.)
Adjusts the size of the projected image
8. Temperature warning light (Refer to page 32
for more information.)
Lights up or flashes if the projector’s
temperature becomes too high.
9. LAMP indicator light (Refer to 32 for more
information.)
Indicates the status of lamp.
Lights up or flashes when the lamp has
developed a problem. Please contact your
BenQ dealer for assistance.
10. AUTO d
Automatically determines the best picture
timings for the displayed image.
11. SOURCE / ENTER (Refer to page 25 for
more information.)
Switches input sources sequentially or opens
the selected item of menu when the on-screen
menu is activated.
1. POWER indicator light (Refer to page 32 for more
information.)
Lights up or flashes when the projector is under
operation.
2. MEMORY c
Sequentially recalls settings 1 ~ 3 saved to memory.
3. ARROWS (e/f)
When the on-screen menu is activated, the #2, #3,
and #10 are used as directional arrows to select the
desired menu items and to make adjustments.
4. POWER (Refer to pages 19 , 23 and 32 for more
information.)
Press and hold this button to turn the projector on
when it is in the standby mode. Or press this button
twice to turn the unit off.
2
1
3
4
5
11
10
3
9
8
7
6
8 m
