8. Electronic function
8.1 Abbreviation
T1: Indoor room temperature
T2: Coil temperature of evaporator
T3: Coil temperature of condenser
T4: Outdoor ambient temperature
T5: Compressor discharge temperature
8.2 Display function

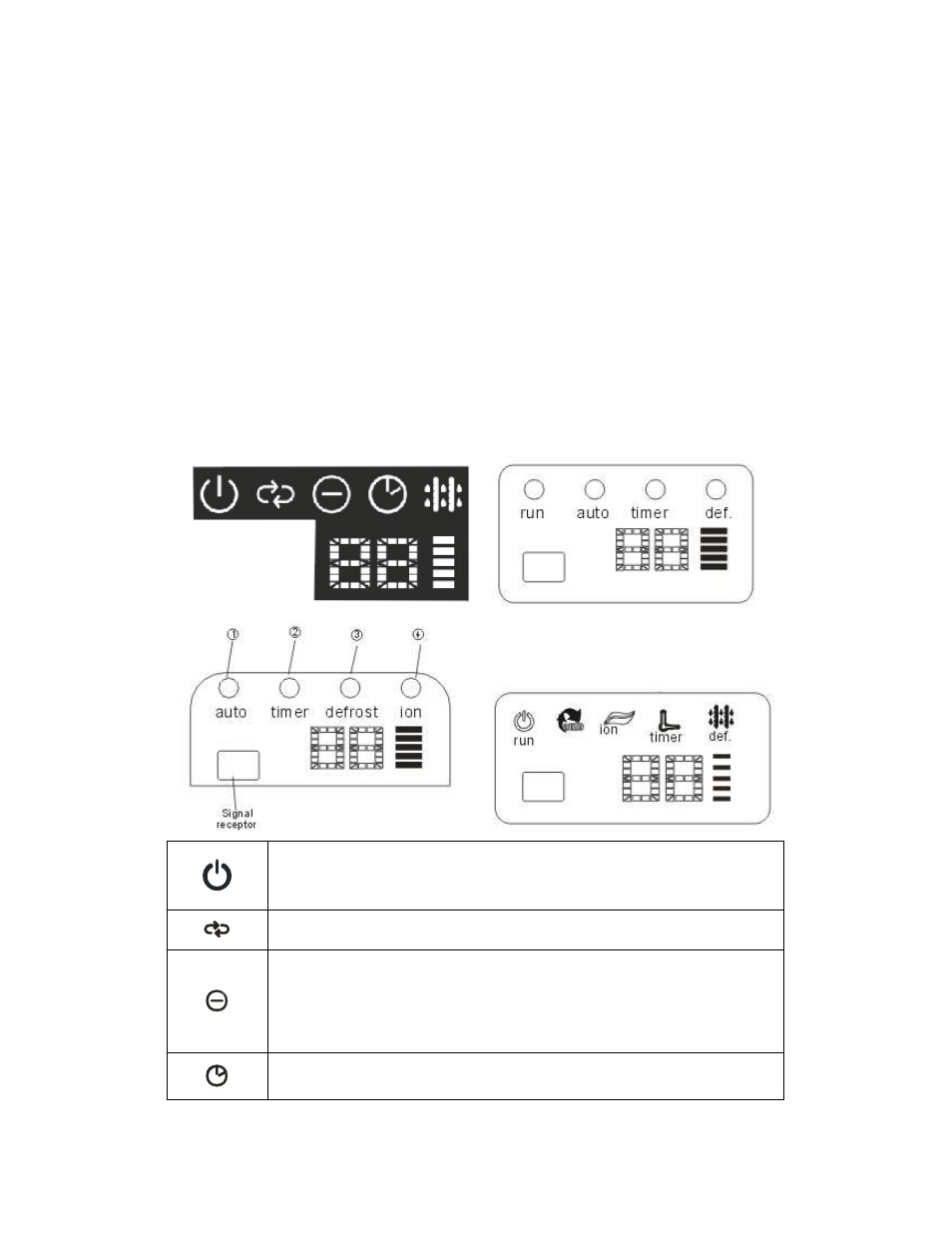

8.2.1 Icon explanation on indoor display board.
OPERATION indication lamp:
This lamp illuminates when the air conditioner is in operation.
AUTO indication lamp: Lights up during the Auto operation.
Ion indication lamp(optional function):
Lights up when Clean Air feature is activated and Ionizer can generate
abundant anions to fill the room with refreshing and natural air.
TIMER indication lamp: Lights up during Timer operation.
