9.3 Key parts checking.

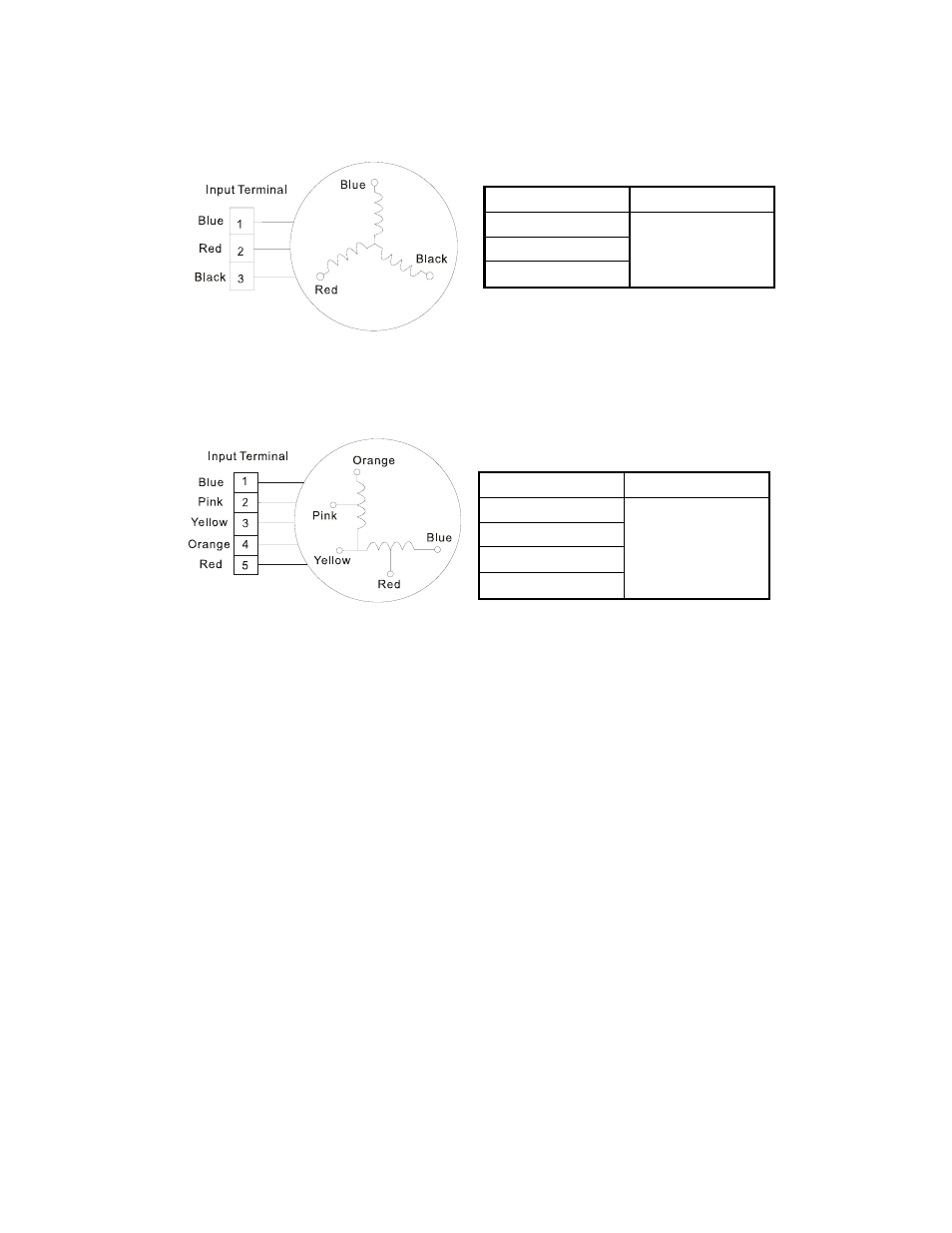

9.3.1. Compressor checking (Model: DA108X1C-20FZ3).
Measure the resistance value of each winding by using the multi-meter.
9.3.2 Step Motor (Model: MP2835T).
Measure the resistance value of each winding by using the multi-meter.
Position Resistance Value
Blue - Red 0.71Ω
(20 Ԩ) Blue - Black
Red - Blue
Position Resistance Value
Blue - Red
200Ω±7% (25 Ԩ) Pink - Orange
Pink - Yellow
Yellow - Red
