8.7.2 Indoor fan speed can be set as high, medium, low or auto grade, but anti-cold-wind function is preferential.
Auto fan action in heating mode.
8.7.3 The operation frequency of compressor after starting submits to following rule:

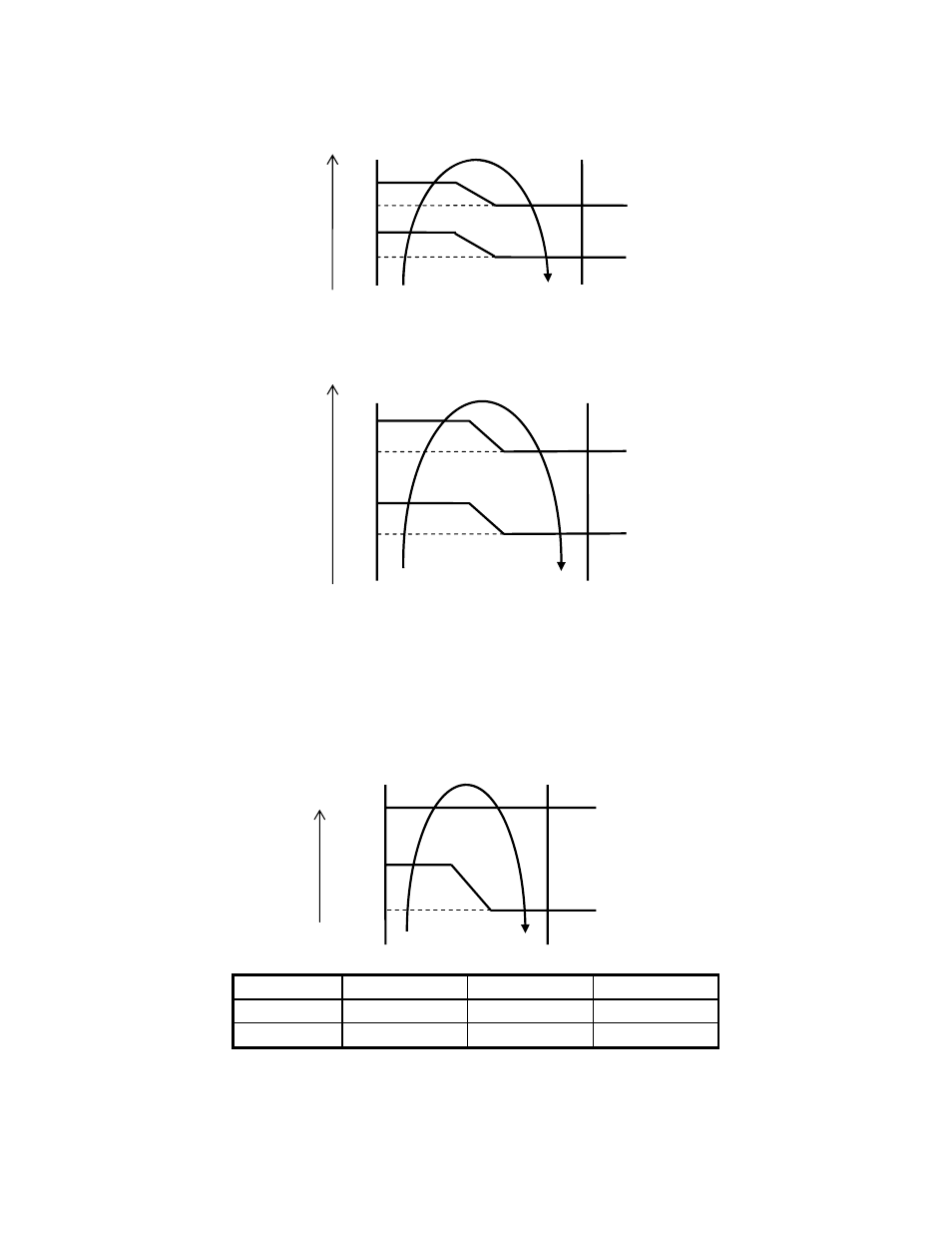

When the machine runs, if ΔTh stays in a zone for 3 minutes, action of frequency is as follow:
Zone A: Elevate current frequency one grade, and not stop until the maximum grade.
Zone B: Elevate or keep or descend current frequency.
Zone H: Compressor stops after running with F1 for 60 minutes or when ΔTh＞6℃.
8.7.4 Outdoor unit current control in heating mode.
Remark:
I1HEAT I2 HEAT I3 HEAT
9K Model 5.2 A 7.0 A 8.0A
12K Model 5.2 A 7.0 A 8.0 A
8.7.5 Indoor heat exchanger high temperature protection.
If T2＞60℃, the compressor will stop and not resume until T2＜48℃.
Remark: ΔTcon can be changed among 0, -2,- 4 , the default is 0
