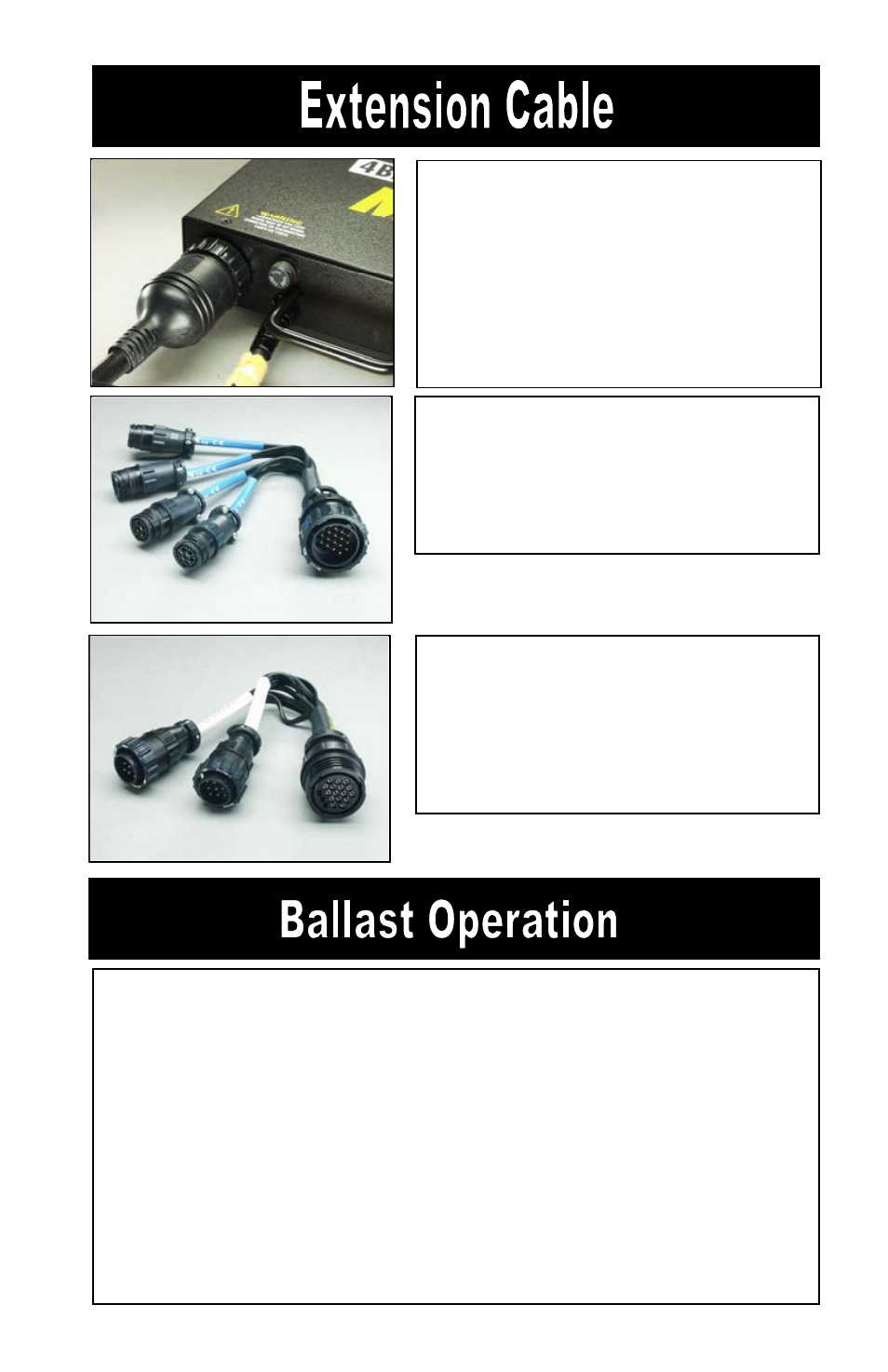

To insert the cable, align the key
ways on the extension cable with
the circular receptacle on the ballast.
Rotate the locking ring until it clicks
into the lock position.
Lamps can operate as far as 75 feet
from the ballast. (3 x 25ft extensions)
A Splitter can be used at the Ballast
or on the end of an Extension Cable
to split a 4Bank run into either
4 Singles or 2 Doubles. This allows
for greater rigging flexibility.
A Combiner can connect a number
of smaller ballasts to a larger fixture.
For example, 4 Single Ballasts or
two Double Ballasts can be
combined to a 4Bank Extension or
Fixture.
WARNING!
1) ALWAYS TURN OFF THE BALLAST BEFORE connecting or
disconnecting Lamps, Harnesses or Extension Cables.
2) Use only with Sine wave inverters. Do not operate on SCR dimmers.
3) If powering the ballasts through a Dimmer Pack set the Dimmer to
Non-Dim Mode.
The 120 VAC Ballast requires 110 to 130 Volts AC 50/60 Hertz on an earth
grounded circuit; the 230 VAC Ballast requires 220 to 240 Volts AC on an
earth grounded circuit. The electronic Ballast operates at a high frequency
of 25 KHz. It is dead–quiet, instant–on and lightweight.
