Kino Flo Mega 4Bank DMX (BAL-450M) User Manual

Page 13

For example, if the 4Bank DMX base address is set at 001,
the configuration below will provide 4 lamps individually addressable
through DMX 512.

Setting the unit to “Individual Lamp” mode allows each lamp within
the fixture to have its own address. Although this option will use up
a lot of addresses, it may be preferable for certain situations.
The “Individual Lamp” mode is useful in achieving light effects like
flickering, chasing or creating light patterns. Individual lamps or
fixtures can be rigged into a set by using a 4Bank to Single or Double
splitter. A Single splitter can provide 4 individual cable feeds to lamps
or fixtures in a set. (For parts see page 16)

After the DMX address is entered, the Mega 4Bank DMX ballast
automatically assigns the next 4 addresses to lamps 2, 3, 4 and
the 5

address controls the STD setting. On address 5, to activate

the STD lamp setting, set dimmer slider to full. Setting the dimmer
value under 49% or not programming address 5 will restore the
HO setting.

Note: The HO/STD select setting controls all 4 lamps equally.

Individual settings per lamp are not possible.

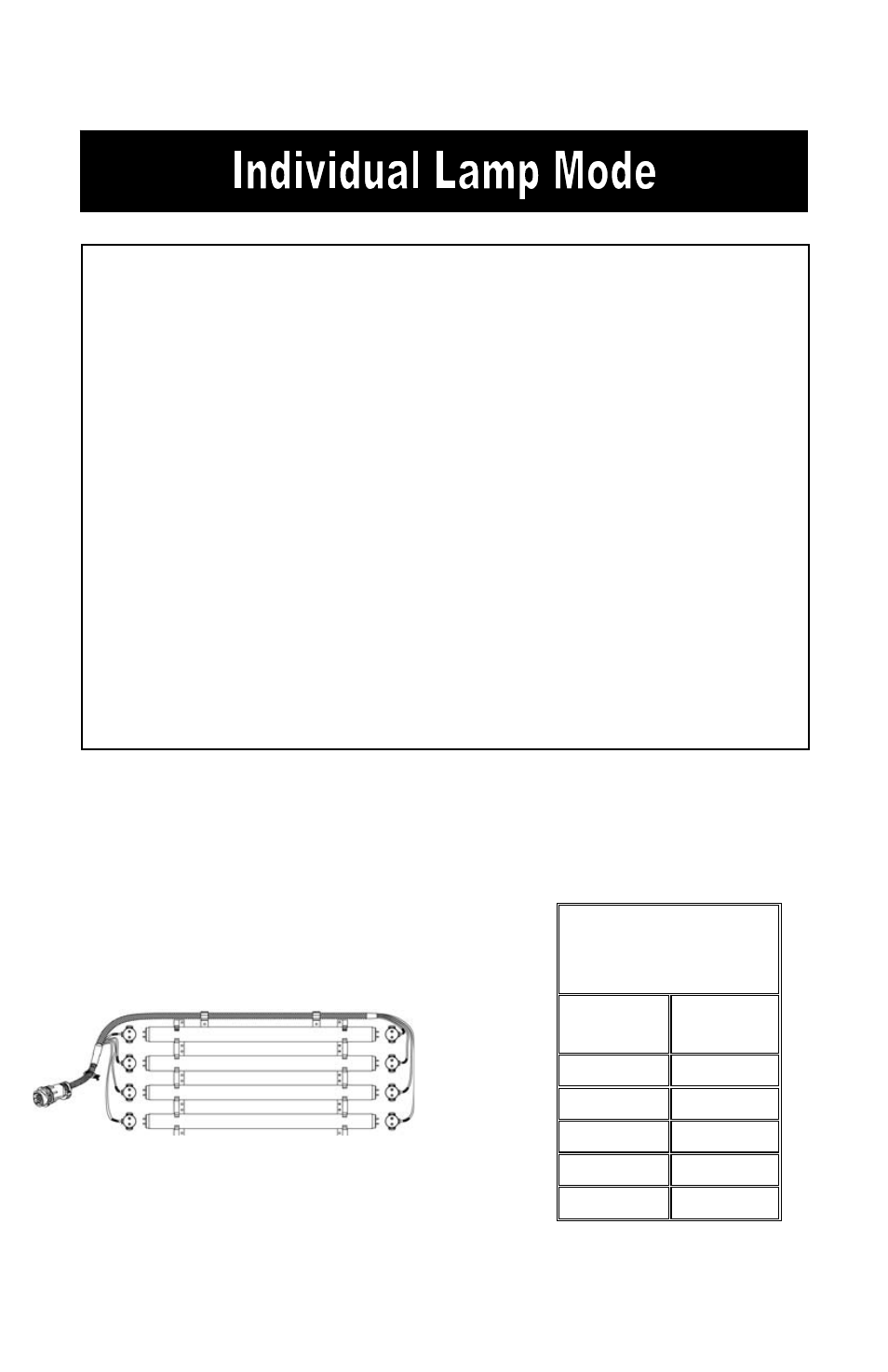

4Bank Lamp Sequence

4 ( Red )
2 ( Yellow )
1 ( Black )
3 ( Blue )

DMX Address

Sequence

DMX address 001

Lamp#

DMX
Address

Lamp 1 1

Lamp 2

Lamp 3

Lamp 4

STD Setting
