6
When using alligator clips correct polarity is
necessary in order to operate the ballast.
Red Clip is + (Positive)
Black clip is – (Negative)
To operate two ballasts off the alligator battery
clip cable (PWC-AX), use the XLR splitter cable
(PWC-X42).
The BAL-140X power connection is made with
4-pin XLR connectors. Align connectors and
insert.

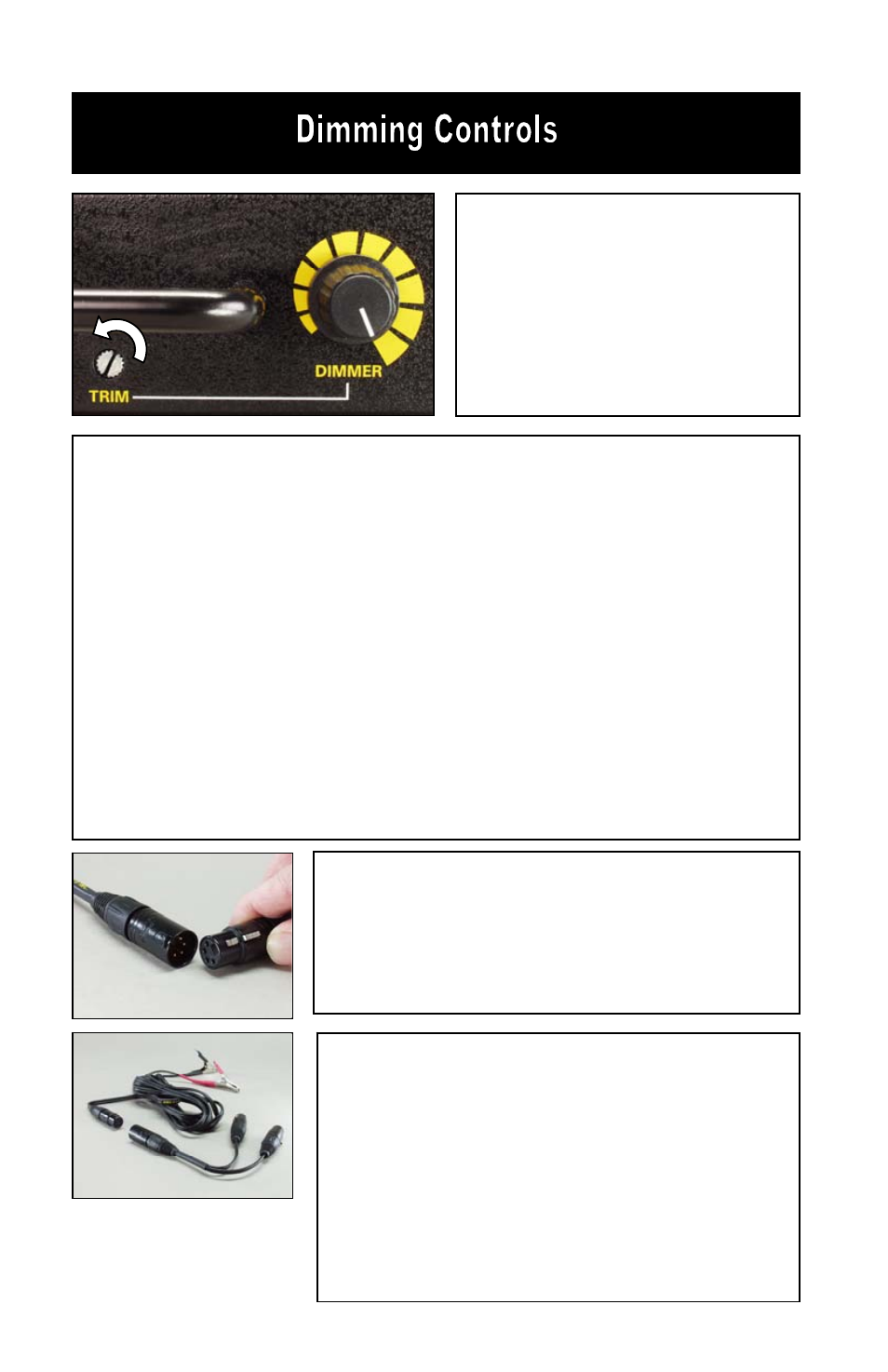

Turn the DIMMER clockwise for
maximum light output.
The 12V Single ballast operates lamp lengths of 15”, 24”, 36” and 48”
T12 or T8. The dimming range is different for each lamp length. The
TRIM adjustment located under the carrying handle adjusts the
dimming range to accommodate the various lamp lengths. The TRIM
pot can also be used to make a lamp fade to black or to stop at a
predetermined low light setting.
To adjust the TRIM pot:
Use a slotted screwdriver to turn the TRIM pot. Clockwise adjusts the lamp brighter,
counterclockwise darker.
1. Turn Trim and Dimmer to maximum position.
2. With Lamp type selected and Lamp correctly connected turn on power.
3. Turn DIMMER down to lowest setting.
4. Now turn the TRIM pot counter clockwise to set the lowest light level desired.
