Manual Operation
The Ballast operates remote from the fixture. Connect the Extension cable
to the Ballast and the Lamp Harness. After the lamps are properly installed,

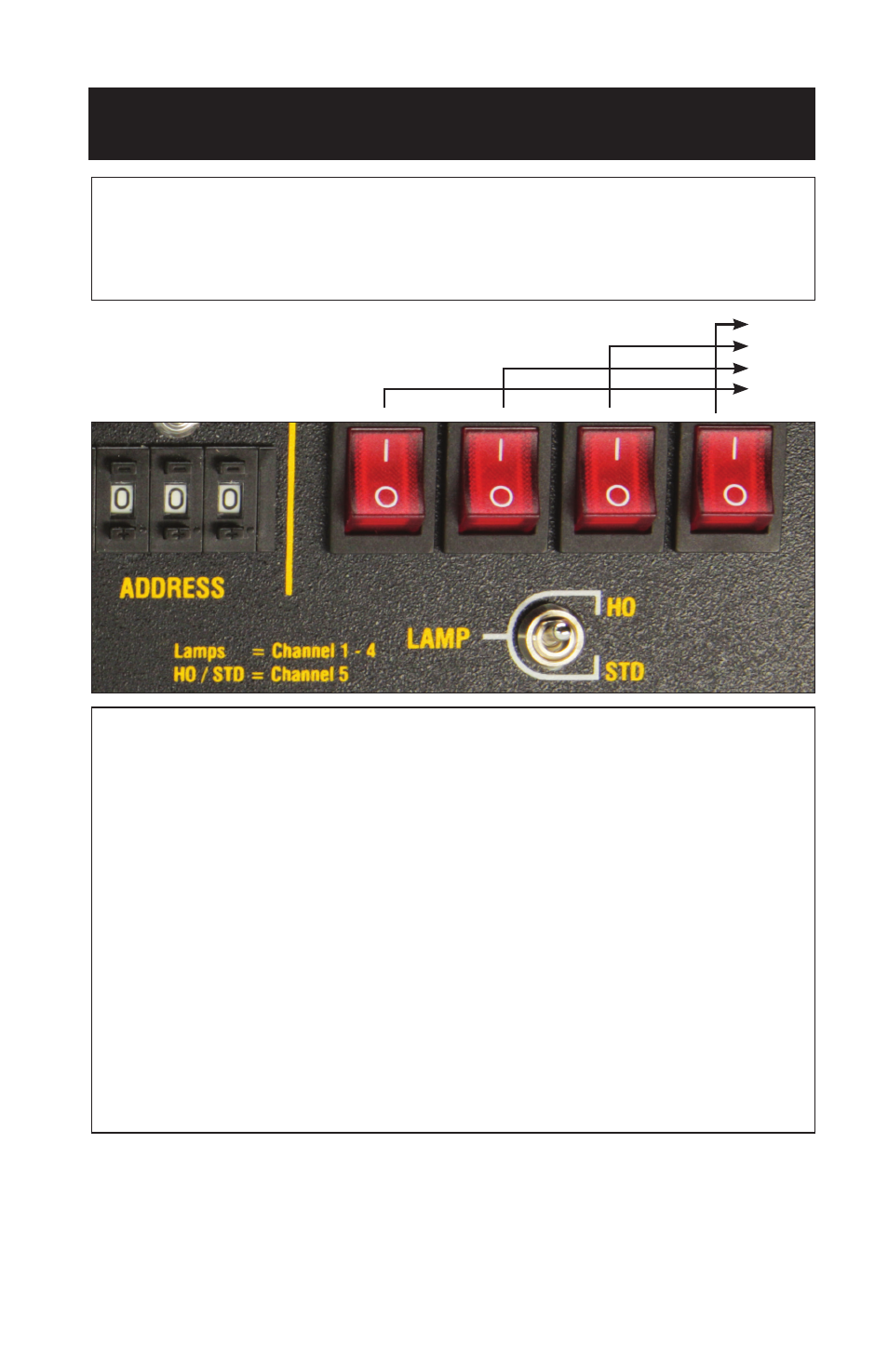

the Ballast can be turned on. Each switch controls one lamp. The color
bands on the lamp harness correspond to the switches as illustrated.
Lamp Select Feature
The Mega Ballasts have an HO/Std switch. Set the selector switch to HO for
High Output and Std for Standard light output.
When operating 8ft or 6ft lamps in high ambient temperature or where the
units are rigged into place with restricted airflow, the Std setting can be used
to lower the color temperature and remove any green spike. The light drops
about a half f-stop in exposure when dropping from HO to Std.
Note: The HO/Std switch is disabled as soon as the DMX cable is applied.
To control the HO/Std switch with DMX cables plugged in:
1) Unplug the DMX cable or
2) Leave cables plugged in and set DMX address to “000”. There is a
5 second delay when switching between DMX and Manual control.
Red
Yellow
Black
Blue
