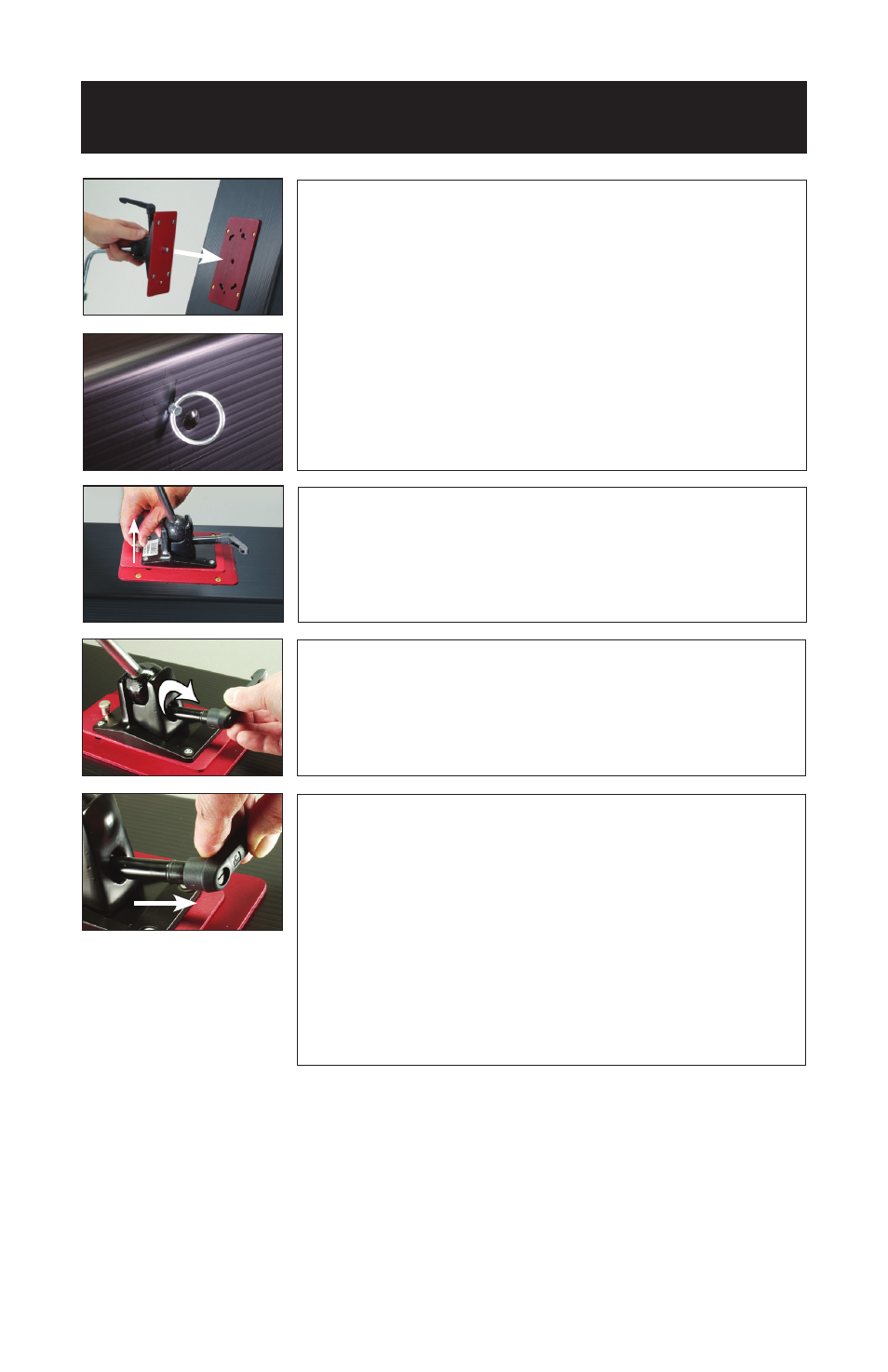

Mounting the Fixture
Align the center pin of the mounting plate
(MTP-K81) to the center hole on the mating
plate. Rotate plate clockwise until the four
shoulder rivets drop into the receptacle.
A locking pin will snap into place when
the plate is properly seated.
The Silver Rings provide attachment points for
a safety chain.
To remove the plate, pull up on the locking pin
and reverse the mounting procedure.
A 180° turn loosens the orientation of the mount.
A right turn tightens the mount.
The tension on the lock lever may be adjusted
by pulling the handle away from the mount.
This disengages the handle from the screw
mechanism and allows it to be reoriented.
Note: You can also use a screwdriver to adjust
the travel. Pull back on handle and adjust the
screw in the center of the handle.
