Kino Flo Image 87/47 DMX Series - Manual (Page 12)

12

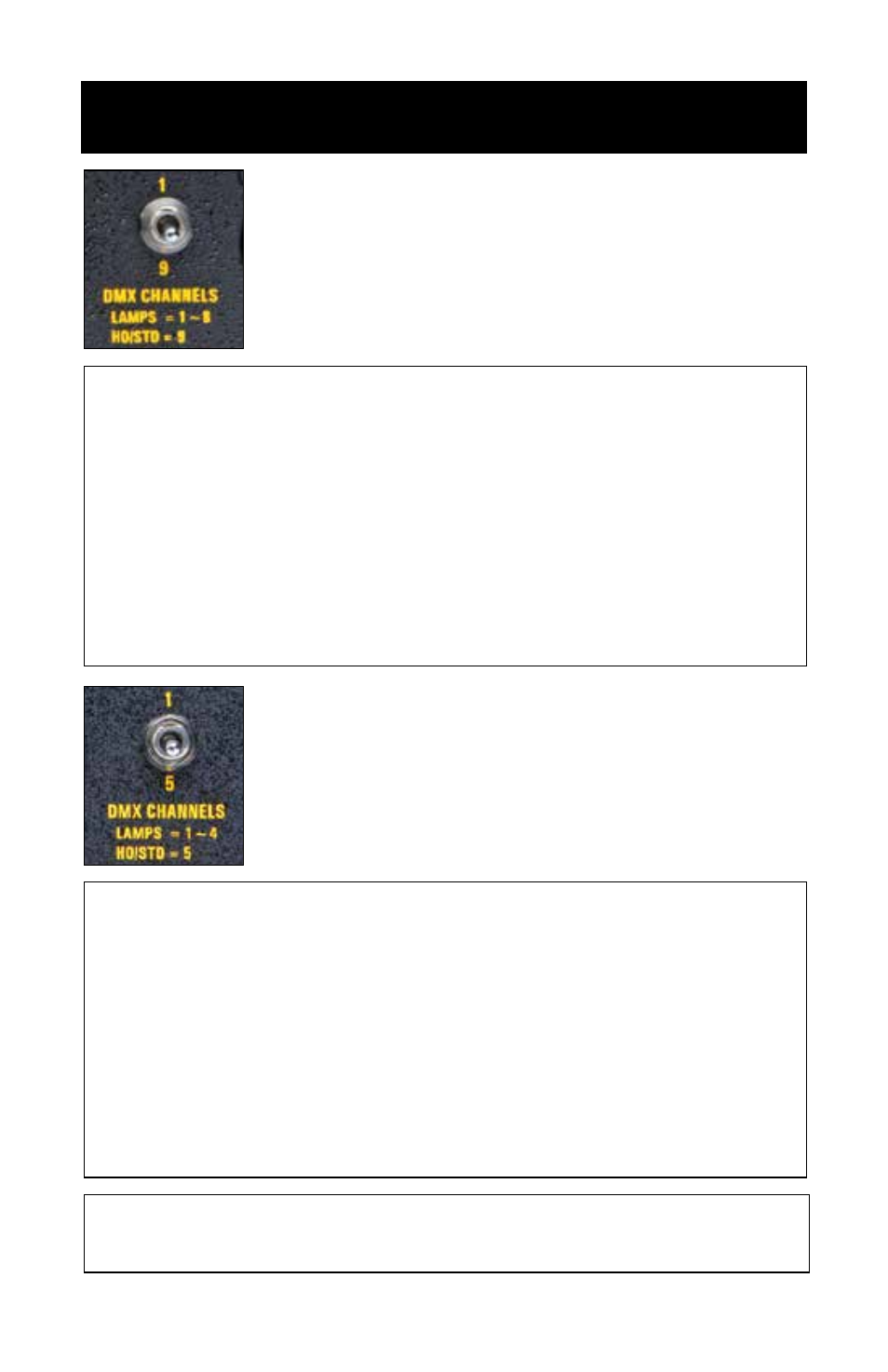

DMX Channels
Image 87 operates on DMX Channel 1 or 9
Lamps = 1-8, HO/Std = 9
On DMX Channel 1, one DMX address controls all 8 lamps on one
dimmer channel. Channels 2-7 are not used. A 9th address controls the
HO/Std setting.
On DMX Channel 9, the first 8 addresses control 8 lamps individually.
After the first DMX address is entered, the Image 87 automatically assigns
8 addresses to lamp positions 1-8, and address 9 controls the HO/Std
setting.
Image 47 operates on DMX Channel 1 or 5
Lamps = 1-4, HO/Std = 5
On DMX Channel 1, one DMX address controls all 4 lamps on one dimmer
channel. Channels 2 & 3 are not used. A 5th address controls the HO/Std
setting.
On DMX Channel 5, the first 4 addresses control 4 lamps individually.
After the first DMX address is entered, the Image 47 automatically assigns
4 addresses to lamp positions 1-4, and address 5 controls the HO/Std
setting.
Note: If the 9th address (or 5th address on Image 47) is not addressed,
the fixture will default in the HO Setting.
