5

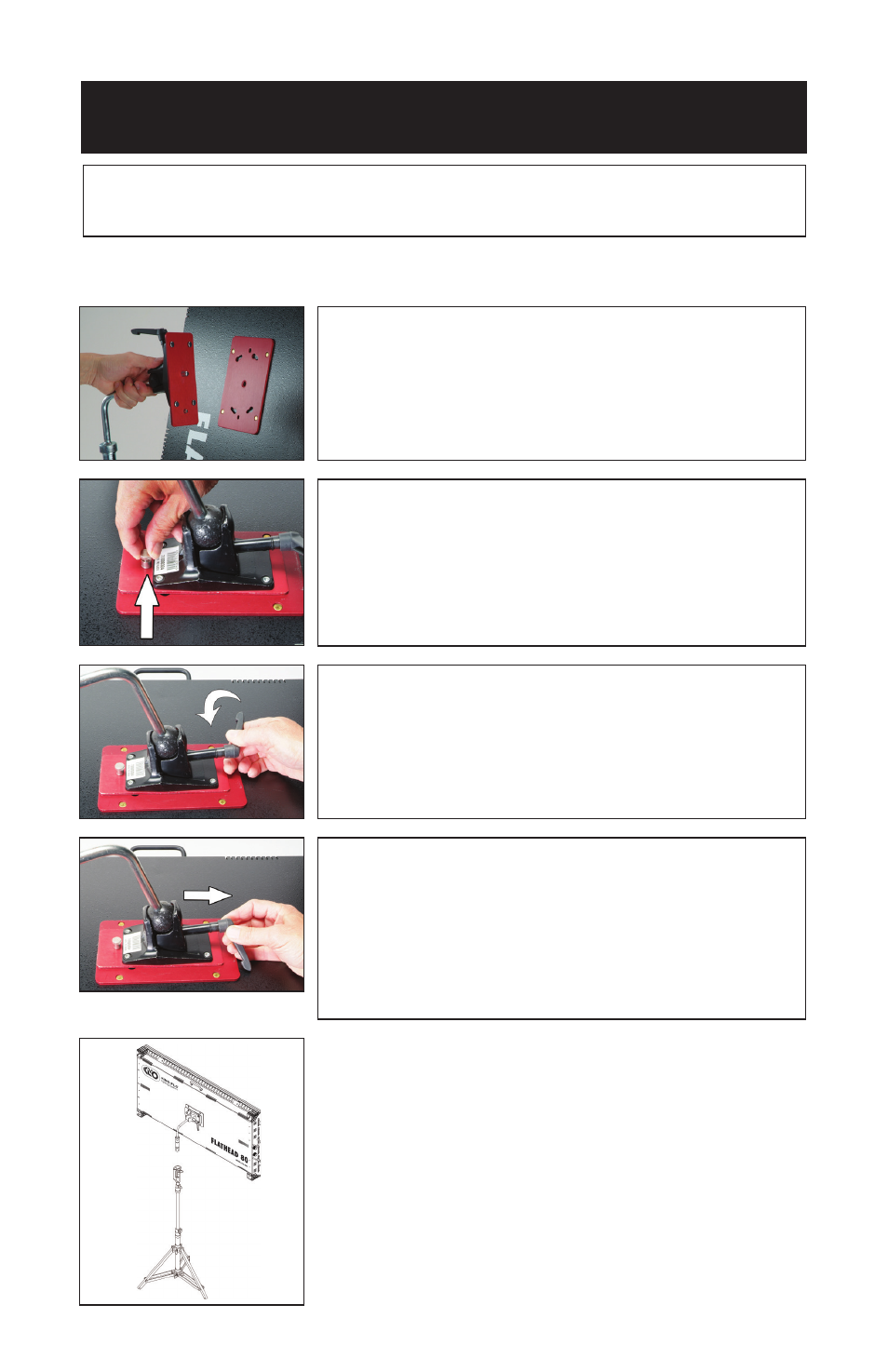

Mounting the Fixture
The Flathead 80 is designed to operate on a Junior stand, hang from a Junior pipe
hanger or mount directly to a set wall.
Mount Plate Operation
Align the center pin of the Mounting Plate (MTP-K81)
to the center hole on the mating plate. Rotate plate
clockwise until the four shoulder rivets drop into the
receptacle. A locking pin will snap into place when the
plate is properly seated.
To remove the plate, pull up on the locking pin and
reverse the mounting procedure.
To loosen or tighten the lollipop, turn lock lever.
With a 180 degree turn, the lever can be adjusted to
provide the necessary clamping strength. Reorienting
the lever allows for further tightening or loosening of the
clamp.
To reorient the lock lever, pull lever away from mount.
This disengages the lever from the screw mechanism
and allows it to be reoriented.
Note: You can also use a screwdriver to adjust the
travel. Pull back on lever and adjust the screw in the
center of the lever.
Mounted on a Junior Stand
