Kino Flo Flathead 80 DMX (427, 457) User Manual

Page 4

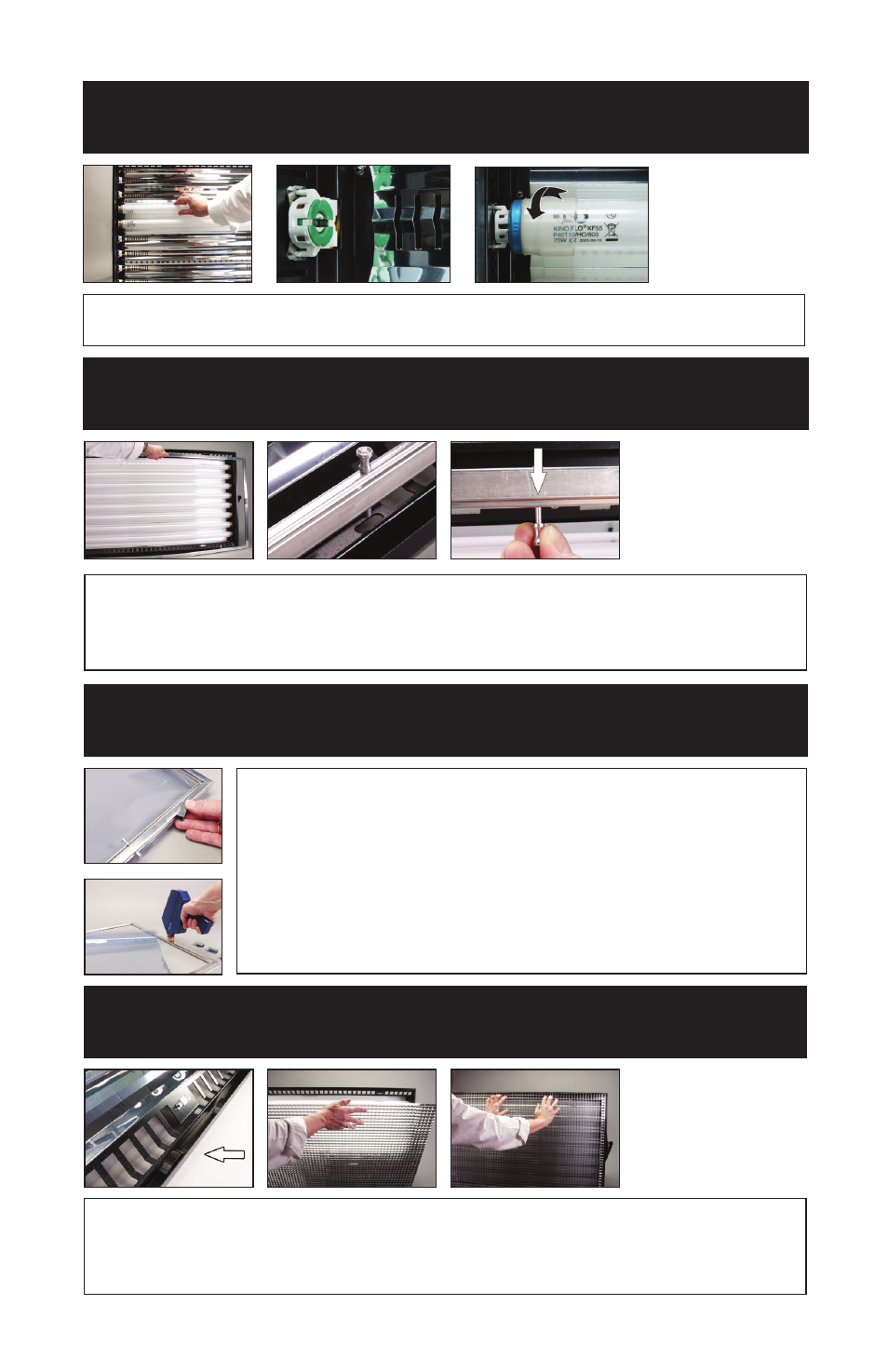

Inserting Lamps

Inserting Gel Frame

Inserting Louver

Applying Gel to Frame

Insert lamps into both lamp holders. Twist ¼ turn to make electrical contact.

Option 1 – The Gel Frame comes with gel clips. Cut the gel to size

and use the clips to fasten the gel to the frame.

Note: It is recommended to attach one clip on each side and one

clip near all four corners.

Option 2 – Another method is to apply transfer tape directly to the

gel frame. The clips are not necessary when taping the gel.

The gel frame is secured to the fixture by 4 spring-loaded pins. Align the pins of the

gel frame with the oval receptacle holes on the edge of the fixture. Pull back the pins

and release into the receptacles to properly secure the gel frame.

Place the long edge of the Louver

(LVR-I80-S) into the lower channel containing a set

of leaf springs. Press down on the Louver and slip the upper edge of the louver into

the upper channel of the fixture. To remove, reverse the procedure.
