To chase one lamp through multiple fixtures:
1) Set each ballast with its own address: 001, 006, 011, 016 and so on.
2) Program address 005, 010, 015, etc. for 2ft operation.
3) Program lamp sequence to chase from 001 through 004, 006-009,
011-014 and so on.
To chase same lamp position simultaneously through multiple fixtures:
1) For each Flathead 80 fixture, set Ballast 1 address to 001
(or a common address) and set Ballast 2 address to 006
(or a common address).
2) Program address 005, 010, 015, etc. for 2ft operation.
3) Program lamps to chase from address 001-004 and 006-009.

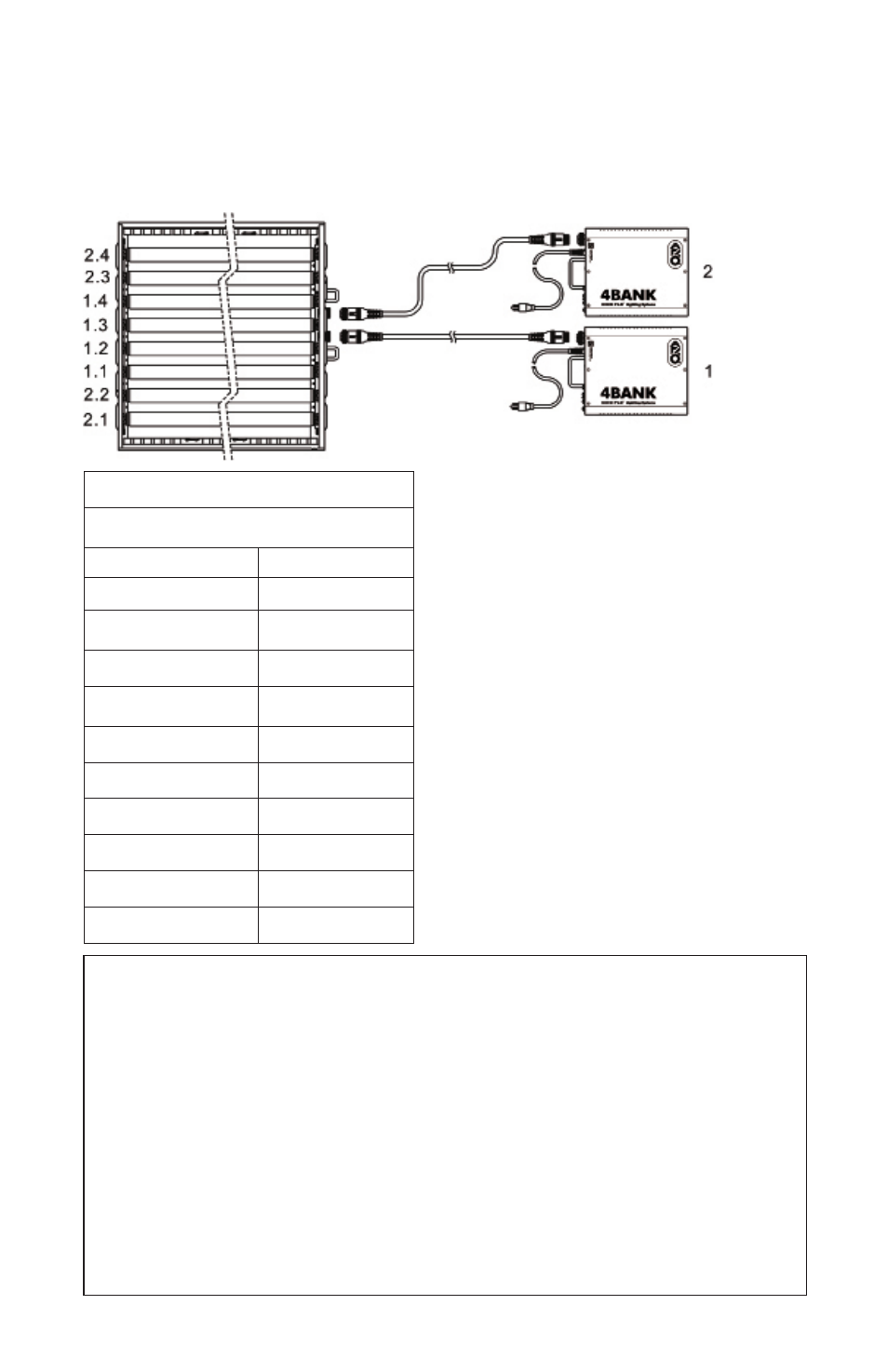

For example: If the 4Bank DMX base address is set at 001 for Ballast 1, and Ballast 2
is set at 006, the configuration below will provide 8 lamps individually addressable
through DMX 512.
DMX Lamp Sequence
DMX Address = 001, 006
Lamp # DMX Address
Lamp 1.1 1
Lamp 1.2 2
Lamp 1.3 3
Lamp 1.4 4
4ft/2ft 5
Lamp 2.1 6
Lamp 2.2 7
Lamp 2.3 8
Lamp 2.4 9
4ft/2ft 10
DMX Lamp Sequence
