8
PRO MIXER DX052
These are the LINE inputs to connect a tape deck, CD or
MD player etc.
The GND connectors ground the turntables.
The DX052 features an integrated effects loop for the
connection of an external effects device/sampler. The
MONITOR signal is taken at the SEND output and routed,
for example, to a reverb processor. Thus, the signal at
the SEND connector is identical to the headphones signal.
The externally processed signal is added to the MASTER
output signal via the RETURN connectors. The effect
signal volume may only be adjusted at the output control
of the effects device itself.

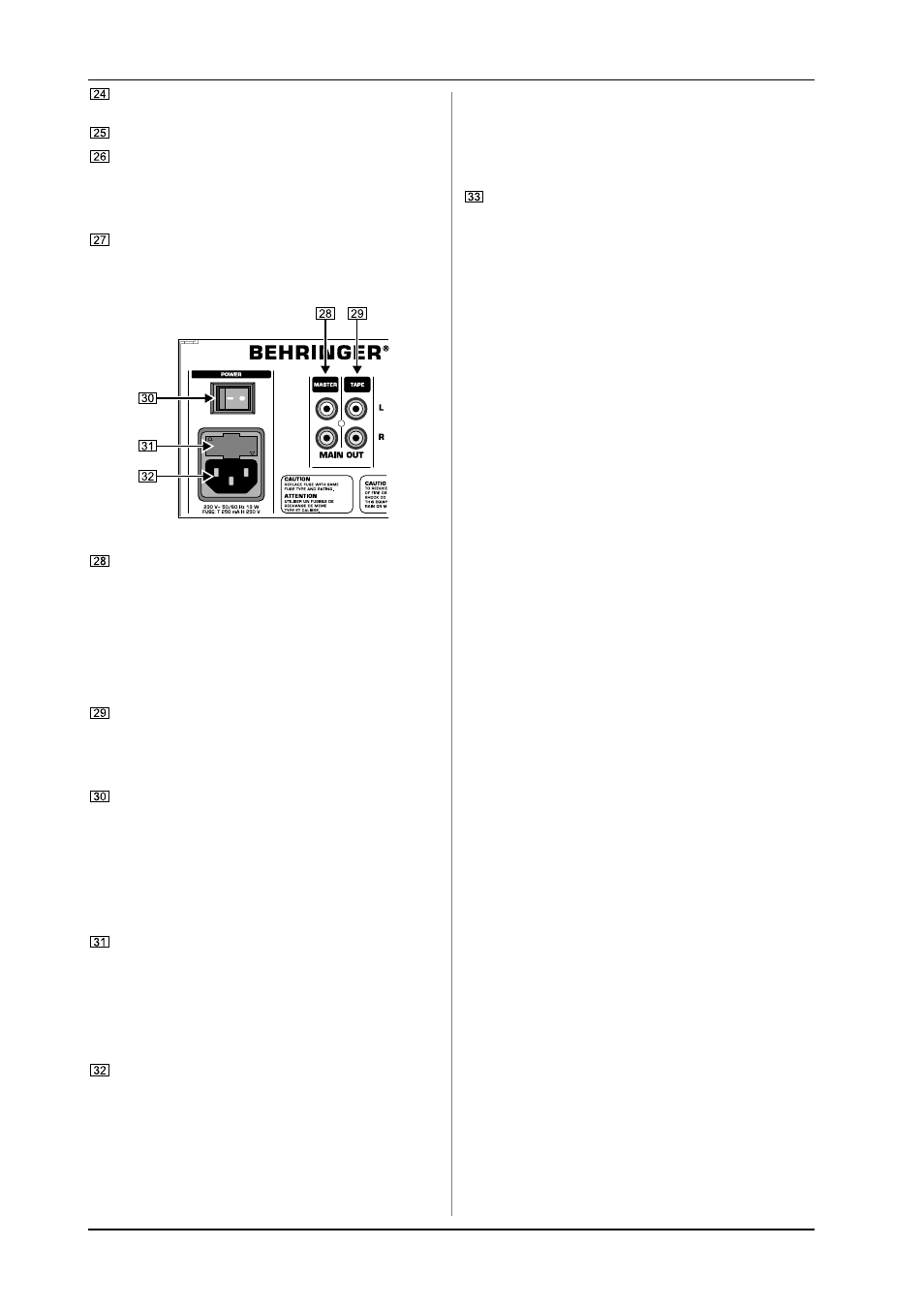

Fig. 3.2: PRO MIXER DXD052 rear panel connectors
The MASTER output is for connecting to an amplifier and
can be adjusted with the MASTER level control.
+
Always turn the power amps on last to avoid inrush
currents that can easily damage your speakers.
And, to avoid sudden and unpleasant surprises
for your ears, make sure there is no signal at the
DX052 before turning on the power amps. To be
sure, slide all the faders to the bottom and switch
all controls to the zero position.
Using the TAPE output you can record your music by
connecting devices such as tape decks, DAT recorders
etc. Unlike the MASTER output, the output volume is fixed,
making it necessary for you to adjust the input level on the
recording device.
The POWER switch powers the DX052 on. You should
always make sure that the POWER switch is in the “Off”
position when initially connecting the unit to the mains.
+
Please take note: Merely switching the unit off does
not mean that it is fully disconnected from the
mains. When not using the unit for prolonged
periods of time, please unplug the unit’s power
cord from the power outlet.
FUSE HOLDER / VOLTAGE SETTING. Before connecting
the unit to the mains, ensure that the voltage setting matches
your local voltage. Blown fuses should only be replaced
by a fuse of the same type and rating. On some units, the
fuses holder can be switched to one of two positions, i.e.
230 V and 120 V. Please note: should you desire to operate
the unit outside Europe at 120 V, a higher fuse rating is
required.
This is the connector for the power cable. This is where
the advantage of a sophisticated internal power supply
can be seen: the pulse behaviour of each amplifying circuit
is mainly determined by the voltage reserves available.
Each mixing console is equipped with numerous operational
amplifiers (op amps) to process line level signals. Due to
limited output of their power supplies, many mixing consoles
show signs of “stress” when subjected to heavy loads.
But not your DX052: the sound is always clear and
transparent.
+
To disconnect power from main, pull out the main
cord plug. When installing the product, ensure that
the plug is easily accessible. If mounting in a rack,
ensure that the mains can be easily disconnected
by a plug or by an all-pole disconnect switch on or
near the rack.
SERIAL NUMBER. Please take the time to complete and
return the warranty card within 14 days of the date of
purchase. Or, simply register online at
www.behringer.com.
4. SPECIFICATIONS
AUDIO INPUTS
Mic 40 dB Gain,
electronically balanced input stage
Phono 1 and 2 40 dB Gain, unbalanced inputs
Line 1 and 2 0 dB Gain, unbalanced inputs
Return 0 dB Gain, unbalanced input
AUDIO OUTPUTS
Master max. +19 dBu @ +10 dB (Line in)
Tape typ. 0 dBu
Send typ. 0 dBu
Phones max. 180 mW @ 75 Ω / 1% THD
EQUALIZER
Stereo Low +12 dB/-32 dB @ 50 Hz
Stereo High +12 dB/-32 dB @ 10 kHz
Mic Low +12 dB/-12 dB @ 50 Hz
Mic High +12 dB/-12 dB @ 10 kHz
GENERAL
Signal-to-noise ratio > 87 dBu (Line)
Crosstalk > 70 dB (Line)
Distortion (THD) < 0,05%
Frequency response 10 Hz - 55 kHz +0/-3 dB
POWER SUPPLY
Mains voltages USA/Canada
120 V~, 60 Hz
Europe/U.K./Australia
230 V~, 50 Hz
Japan
100 V~, 50 - 60 Hz
General export model
120/230 V~, 50 - 60 Hz
Power consumption 13 W
Fuse 100 - 120 V~: T 500 mA H
200 - 240 V~: T 250 mA H
Mains connection Standard IEC receptacle
DIMENSIONS/WEIGHT
Dimensions (H x W x D) approx. 4 3/10" (109.2 mm)
x 10 2/5" (264 mm)
x 12 2/5" (315 mm)
Weight approx. 2.3 kg (5 1/16 lbs)
BEHRINGER makes every effort to ensure the highest standard of quality. Necessary
modifications are carried out without notice. Thus, the specifications and design of the device
may differ from the information given in this manual.
